AWR2944EVM: Example Project not compiling

Thank you Cesar for your super fast response.

I've installed CCS  12.4.0 as you suggested.

I still have similar issues reported below. Do you have other suggestions?

Thank you again,

Francesco

**** Clean-only build of configuration Debug for project awr2944_mmw_nonos_demo_mssDDM ****

"C:\\ti\\ccs1240\\ccs\\utils\\bin\\gmake" -k -j 8 clean -O

DEL /F  "C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\mss\mssgenerated\error.h"  "awr2944_mmw_nonos_demo_mssDDM.xer5f"
DEL /F "mss\mmw_cli.o" "mss\mmw_lvds_stream.o" "mss\mss_main.o" "mss\nonos_cli.o" "utils\mmwdemo_adcconfig.o" "utils\mmwdemo_monitor.o" "utils\mmwdemo_rfparserDDMA.o"
DEL /F "mss\mmw_cli.d" "mss\mmw_lvds_stream.d" "mss\mss_main.d" "mss\nonos_cli.d" "utils\mmwdemo_adcconfig.d" "utils\mmwdemo_monitor.d" "utils\mmwdemo_rfparserDDMA.d"
Impossibile trovare il file specificato.
Impossibile trovare C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\Debug\mss\mmw_cli.o
Impossibile trovare C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\Debug\utils\mmwdemo_adcconfig.o
Impossibile trovare C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\Debug\mss\mmw_cli.d
Impossibile trovare C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\Debug\utils\mmwdemo_adcconfig.d
Finished clean


**** Build Finished ****
Buildfile generation error occurred..
Cannot build project. Referenced project 'awr2944_mmw_nonos_demo_dssDDM' contains build-errors.
Build stopped..

Hello,

could you please try rebuilding the project instead of a clean build and see if there are the same errors. As of right now my suspicion is that the certain out files have not been built. Could you also please provide the projectspec files you are using so I can take a closer look.

Best,

Gabriel

Thank you Gabriel for you fast response,

I still have issues with Rebuild suggested by you.

The log output reported below.

I didn't find a projectspec file in the workspace folder.  I found one that attach in

C:\ti\radar_toolbox_3_00_00_05\source\ti\examples\Fundamentals\nonos_oob\nonos_oob_2944\src\2944

is the correct one?

Thank you,

Francesco

**** Build of configuration Debug for project awr2944_mmw_nonos_demo_dssDDM ****

"C:\\ti\\ccs1240\\ccs\\utils\\bin\\gmake" -k -j 8 all -O

C:/ti/ccs1240/ccs/utils/cygwin/rm -f C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_dssDDM/Debug/awr2944_mmw_nonos_demo_dssDDM_strip.xe66

Building file: "../dss/dss.syscfg"
Invoking: SysConfig
"C:/ti/mmwave_mcuplus_sdk_04_04_01_02/sysconfig_1.14.0/sysconfig_cli.bat" -s "C:/ti/mmwave_mcuplus_sdk_04_04_01_02/mcu_plus_sdk_awr294x_09_00_00_15/.metadata/product.json" --script "C:/Users/franc/workspace_v12/awr2944_mmw_nonos_demo_dssDDM/dss/dss.syscfg" --context "c66ss0" -o "C:/Users/franc/workspace_v12/awr2944_mmw_nonos_demo_dssDDM/dss/dssgenerated" --part Default --package ETS --compiler ccs
dss/subdir_rules.mk:16: recipe for target 'C:/Users/franc/workspace_v12/awr2944_mmw_nonos_demo_dssDDM/dss/dssgenerated/error.h' failed
Error: C:\ti\mmwave_mcuplus_sdk_04_07_00_01\mcu_plus_sdk_awr294x_10_00_00_07\.metadata\product.json: Validation failed: [
  {
    "keyword": "required",
    "dataPath": "",
    "schemaPath": "#/required",
    "params": {
      "missingProperty": "devices"
    },
    "message": "should have required property 'devices'"
  }
]
    at Object.validateMeta (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\src\pinmux\services\JSONschemaValidator.ts:208:9)
    at toProductFile (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\src\pinmux\services\product\parseProductFile.ts:20:14)
    at Object.loadProductFile (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\src\pinmux\services\product\parseProductFile.ts:29:9)
    at iteratee (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\src\pinmux\services\product\available.ts:129:26)
    at baseMap (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\node_modules\lodash\lodash.js:653:23)
    at Function.apply [as map] (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\node_modules\lodash\lodash.js:9621:51)
    at interceptor (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\node_modules\lodash\lodash.js:17094:35)
    at apply (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\node_modules\lodash\lodash.js:8859:14)
    at iteratee (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\node_modules\lodash\lodash.js:4430:28)
    at ft (C:\ti\mmwave_mcuplus_sdk_04_04_01_02\sysconfig_1.14.0\dist\webpack:\node_modules\lodash\lodash.js:697:21)
gmake[1]: *** [C:/Users/franc/workspace_v12/awr2944_mmw_nonos_demo_dssDDM/dss/dssgenerated/error.h] Error 1
gmake[1]: Target 'main-build' not remade because of errors.
gmake: *** [all] Error 2
makefile:147: recipe for target 'all' failed

**** Build Finished ****

**** Clean-only build of configuration Debug for project awr2944_mmw_nonos_demo_mssDDM ****

"C:\\ti\\ccs1240\\ccs\\utils\\bin\\gmake" -k -j 8 clean -O

DEL /F  "C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\mss\mssgenerated\error.h"  "awr2944_mmw_nonos_demo_mssDDM.xer5f"
DEL /F "mss\mmw_cli.o" "mss\mmw_lvds_stream.o" "mss\mss_main.o" "mss\nonos_cli.o" "utils\mmwdemo_adcconfig.o" "utils\mmwdemo_monitor.o" "utils\mmwdemo_rfparserDDMA.o"
DEL /F "mss\mmw_cli.d" "mss\mmw_lvds_stream.d" "mss\mss_main.d" "mss\nonos_cli.d" "utils\mmwdemo_adcconfig.d" "utils\mmwdemo_monitor.d" "utils\mmwdemo_rfparserDDMA.d"
Impossibile trovare il file specificato.
Impossibile trovare C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\Debug\mss\mmw_cli.o
Impossibile trovare C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\Debug\utils\mmwdemo_adcconfig.o
Impossibile trovare C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\Debug\mss\mmw_cli.d
Impossibile trovare C:\Users\franc\workspace_v12\awr2944_mmw_nonos_demo_mssDDM\Debug\utils\mmwdemo_adcconfig.d
Finished clean


**** Build Finished ****
Buildfile generation error occurred..
Cannot build project. Referenced project 'awr2944_mmw_nonos_demo_dssDDM' contains build-errors.
Build stopped..

awr2944_mmw_nonos_demo_dssDDM.projectspec:

<?xml version="1.0" encoding="UTF-8"?>
<projectSpec>
    <applicability>
        <when>
            <context
                deviceFamily="C6000"
                deviceId="TMS320C66XX.AWR2944"
            />
        </when>
    </applicability>

    <project
        title="awr2944_mmw_nonos_demo_dssDDM"
        name = "awr2944_mmw_nonos_demo_dssDDM"
        products="sysconfig:1.14.0;com.ti.MCU_PLUS_SDK_AWR294X:9.0.0.15;com.ti.MMWAVE_MCUPLUS_SDK:4.4.1.02"
        configurations="
            Debug,
            Release,
        "
        connection="TIXDS110_Connection.xml"
        toolChain="TI"
        cgtVersion="8.3.11"
        device="TMS320C66XX.AWR2944"
        deviceCore="C66xx_DSP"
        ignoreDefaultDeviceSettings="true"
        ignoreDefaultCCSSettings="true"
        endianness="little"
        outputFormat="ELF"
        outputType="executable"

        compilerBuildOptions="
            -I${CG_TOOL_ROOT}/include
            -I${C66x_MATHLIB_INSTALL_PATH}/packages
            -I${C66x_DSPLIB_INSTALL_PATH}/packages
            -I${PROJECT_ROOT}\dss\dssgenerated
            -I${PROJECT_LOC}
            -I${MCU_PLUS_SDK_PATH}/source
            -I${MMWAVE_SDK_INSTALL_PATH}
            -I${MMWAVE_AWR294X_DFP_INSTALL_PATH}
            -mv6600
            --abi=eabi
            -q
            -mi10
            -mo
            -pden
            -pds=238
            -pds=880
            -pds1110
             --gcc -g -O3 -mf3 -mo
            --emit_warnings_as_errors
            --define=SUBSYS_DSS
            --define=_LITTLE_ENDIAN
            --display_error_number
            --define=DebugP_ASSERT_ENABLED
            --diag_warning=225
            --diag_wrap=off
            --preproc_with_compile
            --define=DRIVERS_RADAR_HWA_V2
            -DAPP_RESOURCE_FILE=&apos;&lt;&apos;ti/demo/awr294x/mmw/mmw_resDDM.h&apos;&gt;&apos;
            -DSOC_AWR2944
            -DSOC_AWR294X
        "
        linkerBuildOptions="
            -i${MCU_PLUS_SDK_PATH}/source/board/lib
            -i${MCU_PLUS_SDK_PATH}/source/drivers/lib
            -i${MCU_PLUS_SDK_PATH}/source/kernel/nortos/lib
            -i${CG_TOOL_ROOT}/lib
            -i${MMWAVE_SDK_INSTALL_PATH}/ti/control/dpm/lib
            -i${MMWAVE_SDK_INSTALL_PATH}/ti/utils/mathutils/lib
            -i${C66x_MATHLIB_INSTALL_PATH}/packages/ti/mathlib/lib
            -i${MMWAVE_SDK_INSTALL_PATH}/ti/datapath/dpu/rangecfarprocDDMA/lib
            -i${MMWAVE_SDK_INSTALL_PATH}/ti/datapath/dpu/rangeprocDDMA/lib
            -i${MMWAVE_SDK_INSTALL_PATH}/ti/datapath/dpu/dopplerprocDDMA/lib
            -i${MMWAVE_SDK_INSTALL_PATH}/ti/datapath/dpedma/lib
            -i${C66x_DSPLIB_INSTALL_PATH}/packages/ti/dsplib/lib
            -i${PROJECT_LOC}
            -i${PROJECT_LOC}/dss/dssgenerated
            -mv6600
            -g
            -m=${ProjName}.${ConfigName}.map
            --diag_warning=225
            --diag_wrap=off
            --reread_libs
            --warn_sections
            --display_error_number
            --emit_warnings_as_errors
            --rom_model
            --diag_error=10015
            -x
            -o ${ProjName}.xe66
            -llibdpm_awr2944.ae66 -llibmathutils.ae66 -llibrangeproc_hwa_ddma_awr2944.ae66 -llibdopplerproc_hwa_ddma_awr2944.ae66 -llibdpedma_hwa_awr2944.ae66 -lmathlib.ae66 -ldsplib.ae66 -llibrangecfarproc_hwa_ddma_awr2944.ae66
        "
        preannouncebuildStep="Deleting old out file"
        preBuildStep="${CCE_INSTALL_ROOT}/utils/cygwin/rm -f ${CCS_PROJECT_DIR}/${ConfigName}/${ProjName}_strip.xe66;"
        postannouncebuildStep="Preparing RPRC format image"
        postBuildStep="${CCE_INSTALL_ROOT}/utils/cygwin/rm -f ${CCS_PROJECT_DIR}/${ConfigName}/${ProjName}.rprc;
                    ${CG_TOOL_ROOT}/bin/strip6x -p ${CCS_PROJECT_DIR}/${ConfigName}/${ProjName}.xe66 -o=${CCS_PROJECT_DIR}/${ConfigName}/${ProjName}_strip.xe66;
                    ${SYSCONFIG_TOOL_ROOT}/nodejs/node.exe  ${COM_TI_MCU_PLUS_SDK_AWR294X_INSTALL_DIR}/tools/boot/out2rprc/elf2rprc.js ${CCS_PROJECT_DIR}/${ConfigName}/${ProjName}_strip.xe66;
                    ${CCE_INSTALL_ROOT}/utils/cygwin/mv ${CCS_PROJECT_DIR}/${ConfigName}/${ProjName}_strip.rprc ${CCS_PROJECT_DIR}/${ConfigName}/${ProjName}.rprc;
                    ${CCE_INSTALL_ROOT}/utils/cygwin/rm -f ${CCS_PROJECT_DIR}/${ConfigName}/${ProjName}_strip.rprc;
                    "

        enableSysConfigTool="true"
        sysConfigBuildOptions="
            -o ${PROJECT_LOC}/dss/dssgenerated --context c66ss0 --part Default --package ETS
        "

        description="AWR2944 MMW NonOS Demo (DDM) DSS project">

        <configuration name="Debug"
            compilerBuildOptions="
                -D_DEBUG_=1
            "
            linkerBuildOptions="
                -lnortos.awr294x.c66.ti-c6000.debug.lib
                -ldrivers.awr294x.c66.ti-c6000.debug.lib
                -lboard.awr294x.c66.ti-c6000.debug.lib
                -llibc.a
            "
        ></configuration>
        <configuration name="Release"
            compilerBuildOptions="
                --program_level_compile
                -o3
                -mf3
            "
            linkerBuildOptions="
                -lnortos.awr294x.c66.ti-c6000.release.lib
                -ldrivers.awr294x.c66.ti-c6000.release.lib
                -lboard.awr294x.c66.ti-c6000.release.lib
                -llibc.a
            "
        ></configuration>
        <pathVariable name="MCU_PLUS_SDK_PATH" path="${COM_TI_MCU_PLUS_SDK_AWR294X_INSTALL_DIR}" scope="project" />
        <pathVariable name="MMWAVE_SDK_INSTALL_PATH" path="${COM_TI_MMWAVE_MCUPLUS_SDK_INSTALL_DIR}" scope="project" />
        <pathVariable name="MMWAVE_AWR294X_DFP_INSTALL_PATH" path="${COM_TI_MMWAVE_MCUPLUS_SDK_INSTALL_DIR}/../mmwave_dfp_02_04_09_01" scope="project" />
        <pathVariable name="C66x_DSPLIB_INSTALL_PATH" path="${COM_TI_MCU_PLUS_SDK_AWR294X_INSTALL_DIR}/../dsplib_c66x_3_4_0_0" scope="project" />
        <pathVariable name="C66x_MATHLIB_INSTALL_PATH" path="${COM_TI_MCU_PLUS_SDK_AWR294X_INSTALL_DIR}/../mathlib_c66x_3_1_2_1" scope="project" />

        <file path="dss/dss_main.c" targetDirectory="dss" openOnCreation="false" excludeFromBuild="false" action="copy"/>
        <file path="dss/mmw_dss.h" targetDirectory="dss" openOnCreation="false" excludeFromBuild="false" action="copy"/>
        <file path="dss/data_path.c" targetDirectory="dss" openOnCreation="false" excludeFromBuild="false" action="copy"/>
        <file path="${MMWAVE_SDK_INSTALL_PATH}/ti/datapath/dpc/objectdetection/objdethwaDDMA/src/objectdetection.c" openOnCreation="false" excludeFromBuild="false" action="link"/>
        <file path="${MMWAVE_SDK_INSTALL_PATH}/ti/platform/awr2944/c66x_linker.cmd" openOnCreation="false" excludeFromBuild="false" action="link"/>
        <file path="dss/mmw_dss_linker.cmd"  targetDirectory="dss" openOnCreation="false" excludeFromBuild="false" action="copy"/>
        <file path="dss/dss.syscfg"  targetDirectory="dss" openOnCreation="false" excludeFromBuild="false" action="copy"/>
        <file path="include/mmw_config.h" targetDirectory="include" openOnCreation="false" excludeFromBuild="false" action="copy"/>
    </project>
</projectSpec>

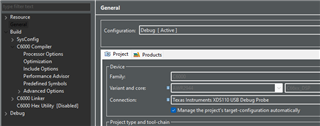

Thank you Gabriel for you very helpful support! Now I'm able to compile and build the files.

However, I'm trying now to follow the instructions on: https://dev.ti.com/tirex/explore/node?node=A__AIvBPeC7gH4xLYnC3r1LNw__radar_toolbox__1AslXXD__2.20.00.05 to try the OOB Lab environment.

and I cannot send mmw configuration since I get the following error:

SDK input version [major, minor] = [0,8] not matching [4,4] reported by target, Hint: Change input version/target and try again.

I'm using mmWave_Demo_Visualizer 4.7.0 on Google Chrome Browser

The mmWave:User/Application Port (CLI CFG_port) baud rate  115200

The mmWave:Auxillary Data port (Demo output DATA_port) baud rate: tried 3125000 as recommended in the application and 852272 as shown in the LAB instructions (which is the correct one then?)

The board is AWR2944EVM, while the SDK 4.4.1.02 with DDM processing chain.

Do you have any clue on how to solve this issues?

Regards,

Francesco

PS: I tried also to run the mmWave_Demo_Visualizer 4.4.0 on Google Chrome Browser,but once I configure the COM ports the "send config to mmW device" disappears.

Dear Gabriel, thank you again for your very helpful support.

With your procedure I'm able to send some configuration, but I still have the issue below.

Do you know how to fix it? And there is a PDF/link where I can find the list of errors ?

Thank you again,

Francesco

mmwDemo:/>sensorStop
Ignored: Sensor is already stopped

Done

mmwDemo:/>flushCfg
Done

mmwDemo:/>dfeDataOutputMode 1
Done

mmwDemo:/>channelCfg 15 15 0
Done

mmwDemo:/>adcCfg 2 0
Done

mmwDemo:/>adcbufCfg -1 1 0 0 1
Done

mmwDemo:/>lowPower 0 0
Done

mmwDemo:/>profileCfg 0 77 267 7 57.14 0 0 70 1 384 13349 0 0 30
Done

mmwDemo:/>chirpCfg 0 5 0 0 0 0 0 15
Done

mmwDemo:/>frameCfg 0 5 16 0 384 200 1 0
Done

mmwDemo:/>guiMonitor -1 2 1 0 0 0 1
Done

mmwDemo:/>cfarCfg -1 1 3 16 0 0 1 24.0 0 7 0 1
Done

mmwDemo:/>cfarCfg -1 0 3 16 0 0 1 15.0 0 7 0 1
Done

mmwDemo:/>compressionCfg -1 1 0 0.5 8
Done

mmwDemo:/>intfMitigCfg -1 15 18
Done

mmwDemo:/>localMaxCfg -1 6 40
Done

mmwDemo:/>antennaCalibParams 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
Done

mmwDemo:/>measureRangeBiasAndRxChanPhase 0 1.5 0.2
Done

mmwDemo:/>analogMonitor 0 0
Done

mmwDemo:/>calibData 0 0 0
Done

mmwDemo:/>aoaFovCfg -1 -90 90 -90 90
Done

mmwDemo:/>sensorStart
Debug: Init Calibration Status = 0xffe
Done

What is the issue here? The configuration has been loaded successfully.

Dear Gabriel thank you again for your fast response.

It seems that the application software is stuck after the sensorStart command and provides the output "Debug: Init Calibration Status = 0xffe".

I also attach the plot window that I get after the command.

Regards,

Francesco
