DCA1000EVM: Clarification on Frame and Chirp Relationship in mmWave Studio with DCA1000EVM and xWR6843AOPEVM

JAEHOON KIM

Part Number: DCA1000EVM

Tool/software:

Hello,

I have been using the mmwave_studio_02_01_01_00 software with the DCA1000EVM and xwr6843AOPEVM combination.

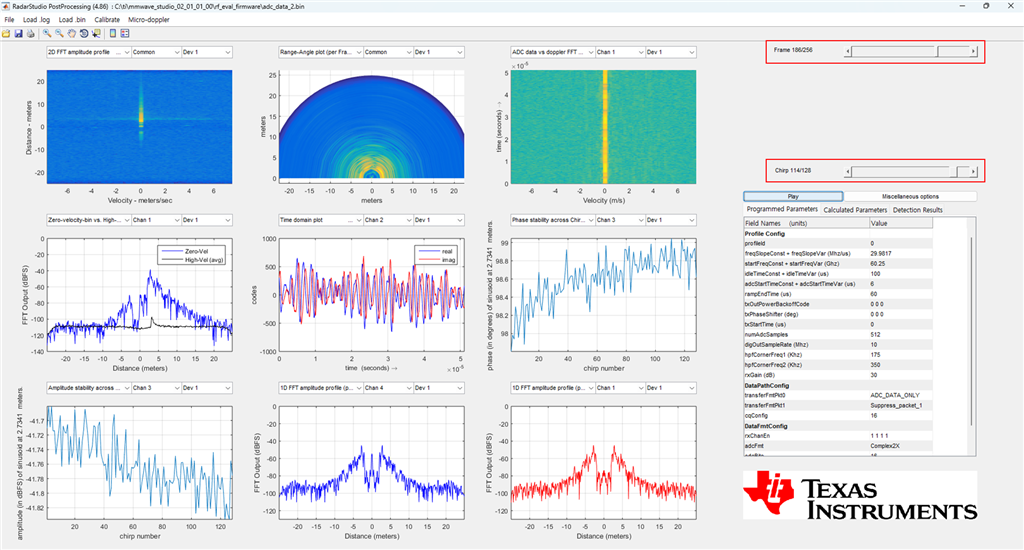

I have a question regarding the relationship between Frames and Chirps, as shown in the image below. Is it that one Frame contains 128 Chirp signals? Or does one Chirp signal contain 128 Frames?

I would appreciate clarification on the relationship between Frames and Chirps.

5 months ago

+1 Voona Deexith 5 months ago

TI__Expert 4190 points

Hi Kim,

Please note that each frame contains 'n' number of chirp signals, not the other way around. From the above image, you have 256 frames data, and each frame consists of 128 chirps. Hope this helps!

Best Regards,
Deexith.

0 JAEHOON KIM 5 months ago in reply to Voona Deexith

Intellectual 395 points

Understood. Thank you for your response.

+1 Ali Syed 5 months ago

TI__Expert 6620 points

HI,

1 frame contains 128 chirps.

regards,

Ali

+1 JAEHOON KIM 5 months ago in reply to Ali Syed

Intellectual 395 points

Understood. Thank you for your response.
