LDC1001: LDC1001NHRR

user6350528

Expert 1530 points

Part Number: LDC1001
Other Parts Discussed in Thread: LDC1000EVM

Tool/software:

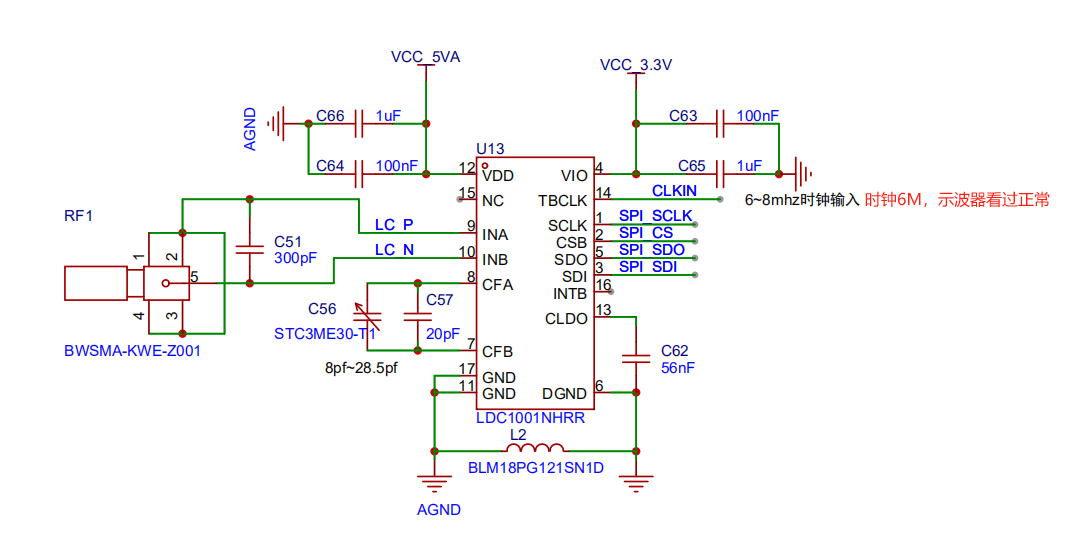

First problem: invalid register Settings

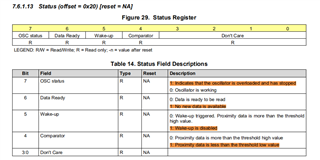

The second problem: the status register is abnormal, and the data ready state cannot be read

The first red box is the default value of the register read at the beginning of power-on, which looks fine.

The second red box is the value read after modifying the register, feeling that the register Settings are invalid. The code is modified as follows:

5 months ago

0 Eddie LaCost 5 months ago

TI__Mastermind 43580 points

Hello,

Can you provide logic analyzer captures of the SPI communication? It is possible there is some timing problem where the writes are not working properly.

0 user6350528 5 months ago in reply to Eddie LaCost

Expert 1530 points

7041.pdf 4.csv

0 John Miller - Sensing 4 months ago in reply to user6350528

TI__Mastermind 40295 points

Hello,

Eddie is out-of-office today and will reply to your update by the close of business on Monday.

Regards,
John

0 user6350528 4 months ago in reply to John Miller - Sensing

Expert 1530 points

Ok，Did you refer to the code? Thank you

0 John Miller - Sensing 4 months ago in reply to user6350528

TI__Mastermind 40295 points

Eddie has been looking at this and will reply by before the end of the day on Monday.

John

0 Eddie LaCost 4 months ago in reply to John Miller - Sensing

TI__Mastermind 43580 points

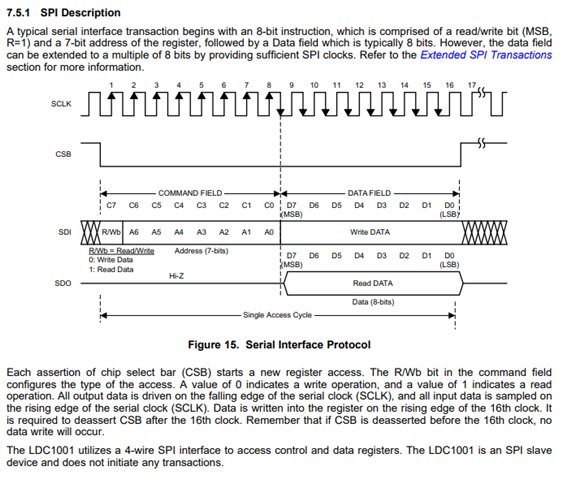

Sorry, I cannot see the timing in the captures you provided since it is zoomed out. Can you take a capture that is zoomed in further to show the transitions on the SPI signals? Section 7.5.1 of the datasheet describes the SPI communication format which should be followed.

https://www.ti.com/lit/ds/symlink/ldc1001.pdf

0 user6350528 4 months ago in reply to Eddie LaCost

Expert 1530 points

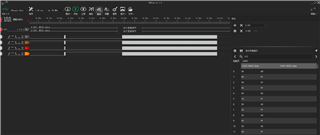

DSLogic-la-250415-215126.csvThis is the captured content. If the spi timing is incorrect, the value read back by the register is also incorrect. The spi timing should be fine. The key point is whether the configuration of the registers is correct?

0 user6350528 4 months ago in reply to Eddie LaCost

Expert 1530 points

Is there any reference code?

0 Eddie LaCost 4 months ago in reply to user6350528

TI__Mastermind 43580 points

Yes, there is example code in the LDC1000EVM install directory. See the link below.

https://www.ti.com/tool/LDC1000EVM

https://e2e.ti.com/support/sensors-group/sensors/f/sensors-forum/337993/ldc1000-source-code

0 user6350528 4 months ago in reply to Eddie LaCost

Expert 1530 points

Hello, I saw the link you gave me, but I couldn't find the place to download the code. Thank you

0 Eddie LaCost 4 months ago in reply to user6350528

TI__Mastermind 43580 points

If you install the GUI in the default location, it is found in the directory below. One thing I see is that this is actually the compiled code and not source code. I was able to locate the source code and have attached it here.

/cfs-file/__key/communityserver-discussions-components-files/1023/sensing_5F00_solutions_5F00_sdk_5F00_firmware_5F00_ccs_5F00_projects_5F00_evm_5F00_ldc1000.zip

C:\ti\Sensing Solutions EVM GUI-1.10.0\EVM Firmware\LDC1000

MikroElktronika also has source code available below.

https://github.com/MikroElektronika/LDC1000_click
