AWR2944EVM: Mmwave demo visualiser issue

Poorneka T

Part Number: AWR2944EVM
Other Parts Discussed in Thread: AWR2944, UNIFLASH

Tool/software:

Hi team,

I flashed the AWR2944 EVM with the SBL and the default TDM image found in the mmwave mcuplus sdk v4.4.1.2.

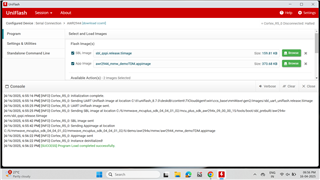

Please find the attached images:

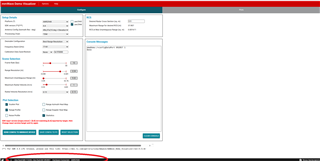

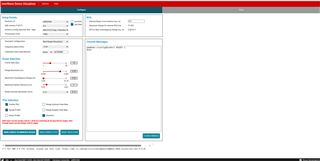

But when I try to connect to the mmwave demo visualiser, I get the below mentioned error:

Can you help resolving this issue?

0 E. Shareef 5 months ago

Hello,

Can you please share the connection image of your PCB.

E. Shareef

0 Poorneka T 5 months ago in reply to E. Shareef

Hi Shareef,

Please find the attached image of my hardware setup,

0 E. Shareef 5 months ago in reply to Poorneka T

Please follow below steps to troubleshoot:

For flashing the EVM using Uniflash, it needs to be in SOP5 mode. Was this done correctly? SOP setting looks correct for DemoVIsualizer, just making sure you were able to change when falshing.
SDK version needs to match the VIsualizer version.
COM ports connection and Baud Rate suggested in the SDK userguide .

Hope this helps,

E. Shareef
