IWRL6432FSPEVM: PCB Stack Up Materials

Peter Adams

Part Number: IWRL6432FSPEVM

Tool/software:

Hello,

I'm creating a custom design based off the IWRL6432FSPEVM, I'm just trying to work out what materials were using in the stack-up.

I can see the stack up in the user guide but it doesn't quite match up with Isola's website

Core 0.127 MM 1/0.5 - is this 2x1080 or 1x2116?

Core 0.79 MM - The thickest core advertised is 2x2116/3x1652 at 0.711mm, not the 0.79 MM the stack up is suggesting

Please may you advise?

4 months ago

0 Blake Kisshauer 4 months ago

TI__Expert 4330 points

Peter,

Sorry for the confusion. Let me look into this discrepency. I'll have an answer for you by Wednesday.

Thanks.

Blake

0 Blake Kisshauer 4 months ago in reply to Blake Kisshauer

TI__Expert 4330 points

Peter,

The core thickness for all of the dielectric layers is 2x1067, spread glass.

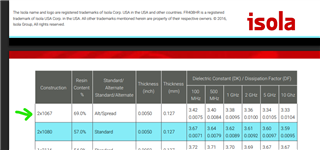

For conviencince, I've also referenced the Isola datasheet and you can find the core information here.

I hope this helps!

Blake

0 Peter Adams 4 months ago in reply to Blake Kisshauer

Prodigy 107 points

Hi Blake,

I understand the 2x1067 for the 0.127mm cores between l1/l2 and l3/l4, but the core between l3/l4 is 39.39mil (1mm), so must be made up with something more than 2x1067...?

0 Blake Kisshauer 4 months ago in reply to Peter Adams

TI__Expert 4330 points

Let me investigate this. I'll keep you updated.

Thanks.

0 Blake Kisshauer 3 months ago in reply to Blake Kisshauer

TI__Expert 4330 points

The "thick" layer in the stackup combines the core with the PP2116.

Thanks!

Blake
