AWRL6432: The I2C frequency configuration

Yongheng Ai

Prodigy 100 points

Part Number: AWRL6432

Tool/software:

Hi TI experts,

We want to know how to configure the I2C rightly.

Currently, we configure the I2C peripheral by TI system configure that bit rate is 100KHZ.

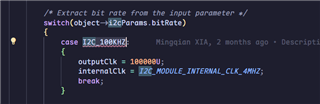

We found that the internal clock is 4MHZ when the bit rate is 100K based on the SDK code.

We check the L6432 Technical Manual Guide, the internal clock should be the Module Clock.

But the Module clock must be between 6.7M and 13.3M. We want to know which is right? Can we configure the I2C to 100KHZ?

3 months ago

0 zigang Yang 3 months ago

TI__Mastermind 40355 points

HI, Honghei:

Thank you for sending your question through e2e. Please give us a day to get back to you.

Best,

Zigang

0 zigang Yang 3 months ago

TI__Mastermind 40355 points

HI, Honghei:

Thank you for sending your question through e2e. Please give us a day to get back to you.

Best,

Zigang

0 Ajay Narayan 3 months ago

TI__Mastermind 22635 points

HI, Honghei,

Can you please share the version number of the SDK that you are using? Thanks.

Regards,

Ajay

0 Yongheng Ai 3 months ago in reply to Ajay Narayan

Prodigy 100 points

Hi Ajay,

The SDK version is MMWAVE_L_SDK_05_03_03_00.

Regards,

Yongheng

0 Ajay Narayan 3 months ago in reply to Yongheng Ai

TI__Mastermind 22635 points

Hello Yongheng,

While I check internally on this, can you please let me know if you see any issue that you face when running with this setting?

Regards,

Ajay

0 Yongheng Ai 3 months ago in reply to Ajay Narayan

Prodigy 100 points

Hi Ajay,

When we set the I2C bit rate to 100KHA, we don't face any issue now. And the error of frequency is better than 400KHZ.

The aim of asking the question just want to confirm if there is potential issue.

Regards.

Yongheng

0 Ajay Narayan 3 months ago in reply to Yongheng Ai

TI__Mastermind 22635 points

Hi Yongheng,

I am checking on this internally and will take few more days to get an answer. Thank you for your patience.

Regards,

ajay

+1 Ajay Narayan 2 months ago in reply to Ajay Narayan

TI__Mastermind 22635 points

Hi Yongheng,

Sorry for the delay, I got the answer from the design team. It is recommended to have the Module clock between 6.7M and 13.3M to filter out any noise on the lines. So, this explains the behavior on why you see no issue in functionality when SDK sets it to 4Mhz.

I will raise this as an issue in our internal JIRA and will be scheduled to be fixed in future release of the SDK.

Regards,

Ajay

0 Yongheng Ai 2 months ago in reply to Ajay Narayan

Prodigy 100 points

Hi Ajay,

To achieve optimal results, we’ll set the I2C bit rate to 400 kHz.

No issues on my end—just wanted to express my appreciation for your support.

Regards,

Yongheng
