AWR1843BOOST: AWR1843 6 layer PCB stack-up

hilal a

Part Number: AWR1843BOOST

Tool/software:

We are making a custom board based on AWR1843BOOST Evaluation board ,we want to keep the RF section same as the eval board . Where can i find the stack up details, what kind of tolerance is acceptable in PCB manufacturing

Regards

Aziz

1 month ago

0 Ali Syed 1 month ago

TI__Expert 6760 points

Hi Aziz,

Please download the Altium design database from: AWR1843AOPEVM Evaluation board | TI.com

The stack-up used is noted in the database with the material used.

Let me know if you need more information.

regards,

Ali

0 hilal a 1 month ago

Prodigy 170 points

Hello Ali ,

We are using AWR1843BOOST as reference, which is 6 layer . Can you share stack need for same

0 Ali Syed 1 month ago in reply to hilal a

TI__Expert 6760 points

Hi ,

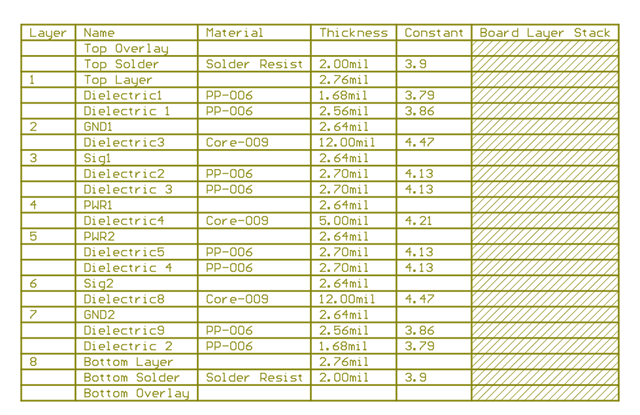

I see from EVM design database that the AWR1843BOSST EVM is 8 layers. See below.

Is this what you are looking for? Let me know if you need more info.

regards,

Ali
