FDC2212: Cannot reactive the FDC2212

Dengkuan Sun

Part Number: FDC2212

Tool/software:

Hi TI Experter,

Now, I am trying the shutdown function of FDC2212. I am using the pin of M03519 to control the SD pin of FDC2212. When the SD pin was high, I found that FDC was shutdowned. But, when the SD pin is low, the FDC cannot work again. I cannot find any output of INX. Can you help to explian this? And, how to fix it?

Thanks

2 months ago

0 Eddie LaCost 2 months ago

TI__Mastermind 44500 points

Hello Dengkuan,

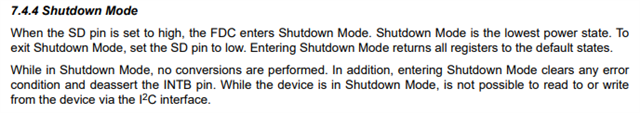

When you set the SD pin to low after being in shutdown mode, registers are returned to default values. Are you setting the registers again after coming out of shutdown?

0 Dengkuan Sun 2 months ago in reply to Eddie LaCost

Prodigy 240 points

Yes, I reset up the registers.

0 Eddie LaCost 2 months ago in reply to Dengkuan Sun

TI__Mastermind 44500 points

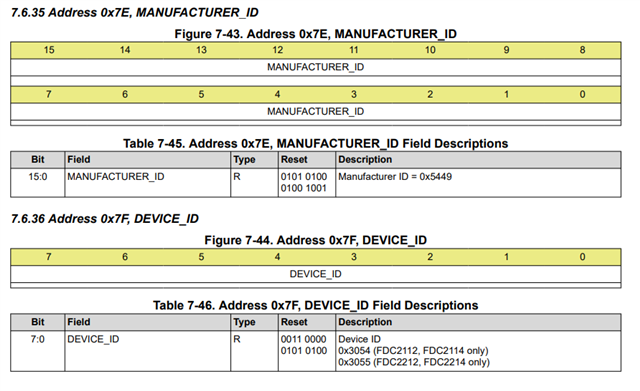

To be clear, you set the registers after coming out of shutdown and you still don't see any signal on the coil? Can you also read back the registers to be sure they were written properly?

0 Dengkuan Sun 2 months ago in reply to Eddie LaCost

Prodigy 240 points

That is the key point. After coming out of shutdowning and seting the registers, the code is blocking when I try to read the registers. So, I am not sure whether to need to wait for some time after coming out of shutdown?
