IWR6843ISK: IWR6843 & CC3351 connector reference design

Karthick Kuthalingam

Part Number: IWR6843ISK
Other Parts Discussed in Thread: CC3351, IWR6843, , IWR6843AOP, CC2642R

Tool/software:

Hi,

Please help confirm compatibility of IWR6843 & CC3351 and if yes, share the reference design. if not, give the recommendation of combo wifi + Bluetooth connection to IWR6843

Regards,

Karthick Kuthalingam

25 days ago

0 Ankit Mohanty 24 days ago

TI__Genius 9670 points

Hi Karthick,

Could you please clarify more on what you meant by compatibility? Is it some specific interface you are looking for to interface with CC351. Or you want to know if the IWR6843ISK EVM can interface with CC351 Evaluation Module. If yes, could you please share the EVM PN; or is it mmWave radar device interfacing with CC351 chipset.

Regards

Ankit

0 Karthick Kuthalingam 24 days ago in reply to Ankit Mohanty

Prodigy 40 points

Trying to Interface the IWR6843 chip and CC33521 (a wifi + Bluetooth chip)

0 Karthick Kuthalingam 24 days ago in reply to Karthick Kuthalingam

Prodigy 40 points

Trying to Interface the IWR6843 chip and CC3351 (a wifi + Bluetooth chip)

0 Ankit Mohanty 24 days ago in reply to Karthick Kuthalingam

TI__Genius 9670 points

Hi Karthick,

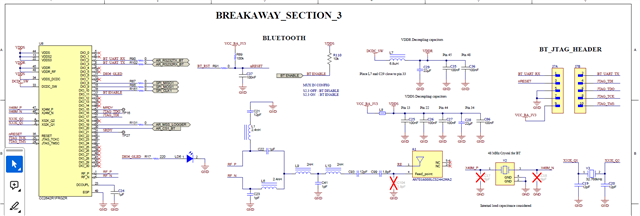

You should be able to interface using UART and SPI. Please see below an example interfacing for IWR6843AOP with CC2642R.

Regards

Ankit

0 Karthick Kuthalingam 24 days ago in reply to Ankit Mohanty

Prodigy 40 points

My requirement is to connect combo chip (Wifi + Bluetooth), above shared is different. but also not for AOP package

0 Ankit Mohanty 24 days ago in reply to Karthick Kuthalingam

TI__Genius 9670 points

Hi Karthik,

Are you designing a new board or want to use existing EVMs? We do not have any IWR6843 (IWR6843ISK) EVM with BLE + Wifi capablities.

Regards

Ankit

0 Karthick Kuthalingam 24 days ago in reply to Ankit Mohanty

Prodigy 40 points

For New board design

0 Ankit Mohanty 24 days ago in reply to Karthick Kuthalingam

TI__Genius 9670 points

Hi Karthik,

Then you should be able to interface using both UART and SPI.

Regards

Ankit

0 Karthick Kuthalingam 24 days ago in reply to Ankit Mohanty

Prodigy 40 points

Does the MCU in the IWR6843 supports for TCP/IP stack, which is important for wifi + Bluetooth chip to connect with?

0 Ankit Mohanty 24 days ago in reply to Karthick Kuthalingam

TI__Genius 9670 points

Hi Karthick,

IWR6843 has an inbuilt Cortex R4F. I will need to check internally if it supports TCP/IP stack. Please allow me to investigate this by early next week.

Regards

Ankit

0 Ankit Mohanty 21 days ago in reply to Ankit Mohanty

TI__Genius 9670 points

Hi Karthick,

The IWR6843 (with Cortex R4F) does not support the TCP/IP stack; it will need additional companion product such as CC26XX and CC32XX to support the TCP/IP stack.

Regards

Ankit
