MMWCAS-RF-EVM: MMWCAS-DSP-EVM

Paniz Alsafi

Part Number: MMWCAS-RF-EVM
Other Parts Discussed in Thread: AWR2243

Tool/software:

Hi,

I'm confused about the correct version of mmWave Studio for my setup. The website mentions MMWAVE-STUDIO-2G, which is the mmwave_studio_03_01_04_04_win32.exe — 52612 K, but when I reviewed the mmwave_studio_cascade_user_guide.pdf, it mentions a different version. Could you please help me?

I followed all the steps in the mmwave_studio_cascade_user_guide. In Subsection 7.3.2, when I clicked SPI after waiting, nothing happened. What should I do?

Looking forward to your response

1 day ago

+1 aozer 1 day ago

TI__Mastermind 30545 points

Hello,

For AWR2243 you need to use below studio version:

MMWAVE-STUDIO-2G IDE, configuration, compiler or debugger | TI.com

Regards,

Adrian

0 Paniz Alsafi 1 day ago in reply to aozer

Prodigy 10 points

Dear Adrian

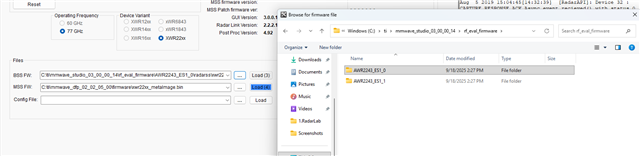

Thanks for your response; it solved my problem. I have another question: What should I do for this: "Select the Meta Image from the BSS FW Selection and click Load"

+1 aozer 1 day ago in reply to Paniz Alsafi

TI__Mastermind 30545 points

Hello,

In below folder you can find example scripts for how to configure the device. You can follow the steps in Cascade_Configuration_Basic.lua for the correct steps.

C:\ti\mmwave_studio_03_00_00_14\mmWaveStudio\Scripts\Cascade

Regards,

Adrian

0 Paniz Alsafi 1 day ago in reply to aozer

Prodigy 10 points

Sorry for asking a couple of questions.

How can I make sure that mine is ES1.1 or ES1.0?

Also, in the file Cascade_Configuration_Basic. lua mentioned mmwave_dfp_02_02_02_01 and mmwave_dfp_02_02_00_02. Do I need to install these older versions?

0 Paniz Alsafi 1 day ago in reply to aozer

Prodigy 10 points

Dear Adrian

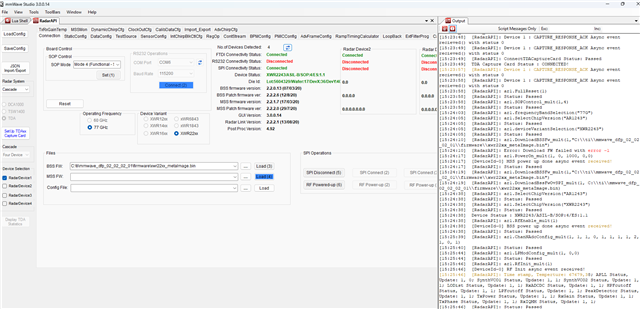

I loaded C:\ti\mmwave_dfp_02_02_02_01\firmware\xwr22xx_metaImage.bin and worked. Why RS232 is not active? What should I do?

Thanks for yor help

+1 aozer 1 day ago in reply to Paniz Alsafi

TI__Mastermind 30545 points

Hello,

RS232 is not required for using the device is SOP4 mode. There is no point in the script where it attempts to connect RS232. All of the communication is done over SPI.

Regards,

Adrian

+1 aozer 1 day ago in reply to aozer

TI__Mastermind 30545 points

FYI, DFP 2.2.2.1 is quite old. I recommend to update to the latest DFP, there have been several critical firmware updates since DFP 2.2.2.1.

https://www.ti.com/tool/download/MMWAVE-DFP-2G/02.02.05.00

Regards,

Adrian

0 Paniz Alsafi 19 hours ago in reply to aozer

Prodigy 10 points

Thanks for your response, in the following mentioned that "Move to Static configuration tab for Channel configuration. Select the Cascading Mode as “Master” for “RadarDevice1” and click Set. This will enable the clock to the slave devices and must be done before any configuration of slave devices."

I click on the RadarDevice1, select Set in Basic Configuration and Advanced Configuration, and finally, RF Int Done.

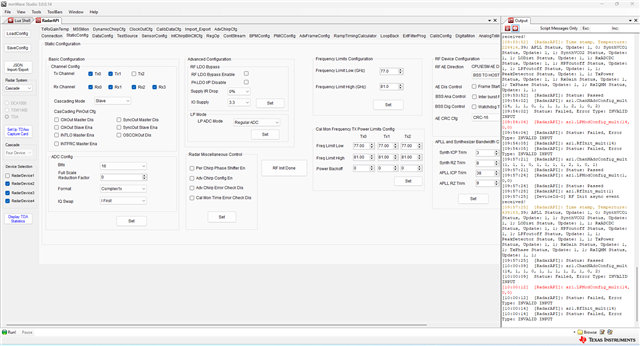

Repeat above for RadarDevice2 to 4, but when I use Cascading Mode in Slave, I'm facing an error. What should I do?

Best

0 Paniz Alsafi 19 hours ago in reply to Paniz Alsafi

Prodigy 10 points

I realized the problem was that I needed to activate each RadarDevice in the connection tab.

0 aozer 18 hours ago in reply to Paniz Alsafi

TI__Mastermind 30545 points

Hello,

Since you have resolved the issue I will close this thread. Please start a new thread if any further questions arise.

Regards,

Adrian

0 Paniz Alsafi 18 hours ago in reply to aozer

Prodigy 10 points

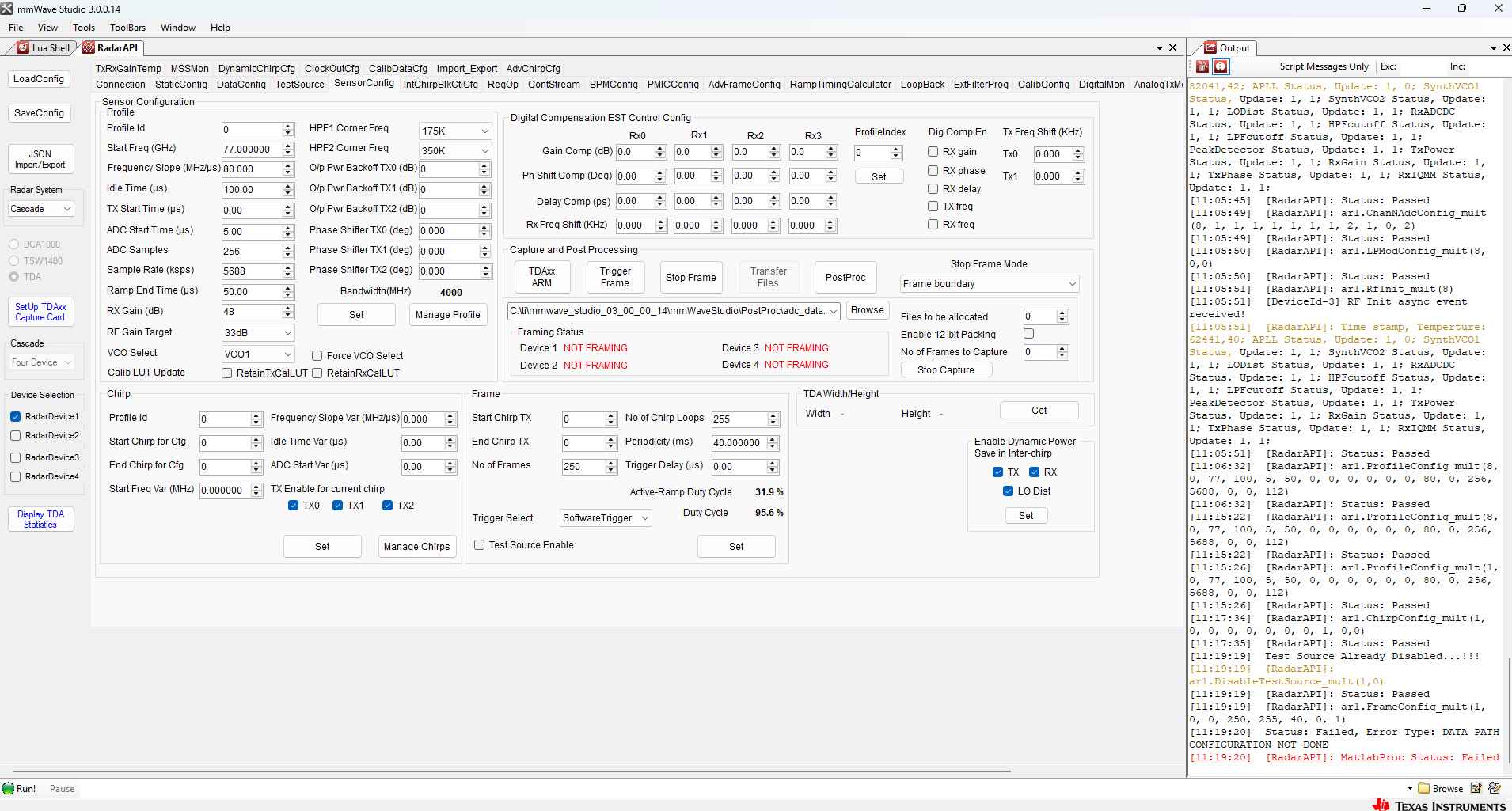

Could you please let me know what I should do about this error related to MATLAB?

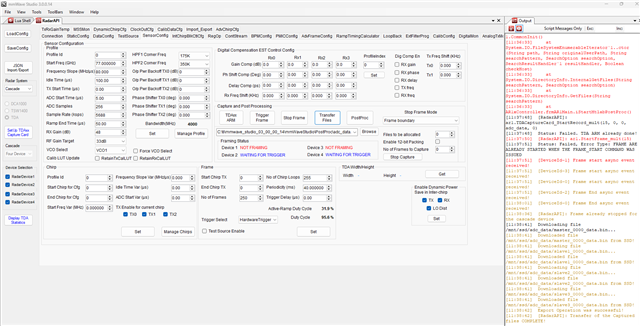

Profile, Chirp, and Frame configuration should be done for each RadarDevice, right? And when all is done, TDAxx and Triger Frame?

+1 aozer 17 hours ago in reply to Paniz Alsafi

TI__Mastermind 30545 points

Hello,

This error means that the datapath was not configured before issuing the sensor configurations.

It is not a fatal error, if you do not plan to capture raw data you can just ignore it. However, if you want to capture raw data you need to issue the commands in the DataConfig before issuing SensorConfig commands.

Regards,

Adrian

0 Paniz Alsafi 17 hours ago in reply to aozer

Prodigy 10 points

Truly appreciate it. Could you please help me with the process of data Capture and Post Processing?

Should I select all decives in Device Section?

0 Paniz Alsafi 17 hours ago in reply to aozer

Prodigy 10 points

For RadarDevice 2 and 4, although I clicked on set in Dataconfig, I still have an error for Matlab, please advise

0 aozer 14 hours ago in reply to Paniz Alsafi

TI__Mastermind 30545 points

Hello,

Please follow exact command sequence in the provided Cascade_Capture.lua. It will allow you to capture and process the data.

You need to run Cascade_Configuration_Basic.lua -> Cascade_Capture.lua for a full device setup and rdata capture example.

Once you understand how the scripts are working you can then modify them for your specific use case.

Regards,

Adrian
