Webench LDC1000 Coil Layer Structure

Andreas Steiniger1
Prodigy 10 points

Hi,

I'm using Cad Soft Eagle v6.4 to work with my generated 4 layer coils from Webench LDC1000 tool.

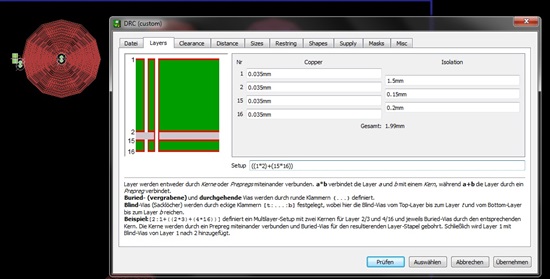

When I open the downloaded .brd file I getting following layer structure.

Is this structure intended? that the isolation between first and second layer is so large dimensioned?

And all via's connecting layer 1 to 16?

,

Regards,

Andy
