Hello.

Is there any Eagle Library for TMP112 smd so I can make a PCB?

Thanks.

over 11 years ago

0 Abhishek Muppiri over 11 years ago

TI__Expert 7945 points

Hello Natalia,

I can point you to our EVM layout files that you can use as a refrence. These files are in Altium so let me check on it to see if you can open them with Eagle software. I will get back to you soon.

Best Regards,

Abhi

0 Abhishek Muppiri over 11 years ago

TI__Expert 7945 points

Hello Natalia,

Please see the attached files...

Thanks to Simon, for putting this together!

0257.TMP112EVM.brd

Regards,

Abhi

0 NatÃ¡lia Jardim over 11 years ago in reply to Abhishek Muppiri

Prodigy 120 points

Thanks for your reply.

I'm having troubles to use your file. Do you have the file with a .lbr extension so I can use it with Eagle?

0 SimonF over 11 years ago in reply to NatÃ¡lia Jardim

TI__Expert 3370 points

Hi Natalia,

which version of Eagle do you use? I tested it in Eagle 6.6.0 and it worked.

I opened it as a "Board" file.

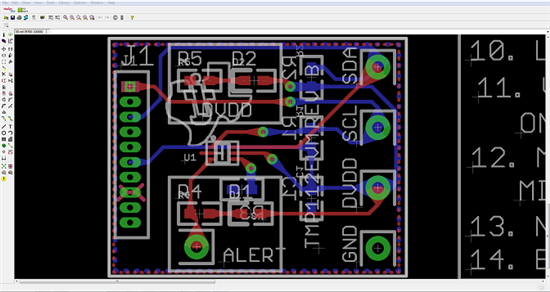

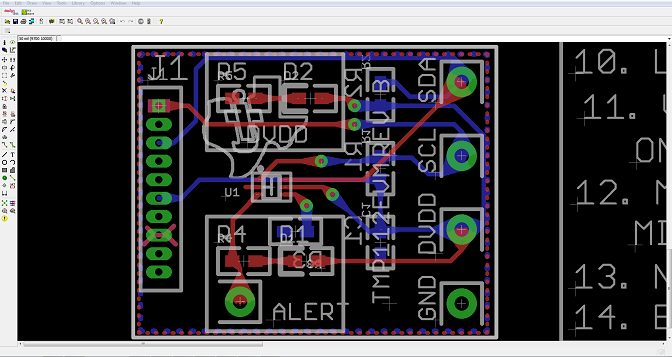

It should then look like this:

Does this work with you version of Eagle? Is this the file you wanted?

If you still have problems please don't hesitate to ask!

Best Regards,

Simon

0 SimonF over 11 years ago in reply to NatÃ¡lia Jardim

TI__Expert 3370 points

Hi Natalia,

if all you wanted is to use the part in Eagle you can download the ".bxl" file from our website

http://www.ti.com/product/TMP112/quality

And use the free software "Ultra Librarian" (link also in the webpage above) to convert it to any program you need.

I did this for you and attached the Eagle library file ".lbr" for the TMP112 to this post.

Hope this helped!

Best Regards,

Simon

7484.TMP112_Eagle.zip
