LM96000 response time

Takumi Suzuki1

Mastermind 8610 points

Hi,

I would like to ask you a question about the response time from register setting to PWM out.

Could you tell me the actual time, from PWM register setting to PWM signal is output (PWM output signal is changed.)?

I expect that the actual time is under 300mSec.

Thank you in advacne.

Best Regards,

over 9 years ago

0 Aaron Heng over 9 years ago

TI__Mastermind 37370 points

Hi Takumi-san,

It seems that this question is very similar to Katsuhiko-san's posted. I'm sorry for the long delay. We're a bit busy here, and we'll get back to you shortly.

Aaron

0 Michael Wong over 9 years ago

TI__Expert 7220 points

Hi Takumi,

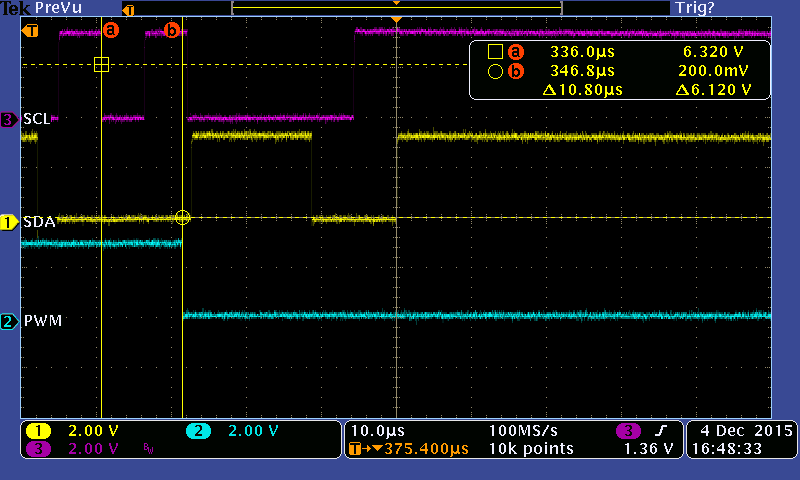

The PWM output updates before the ACK bit on the SMBus/I2C transaction. The delay between last data bit and the PWM changing is between 9-11us, see the picture below:

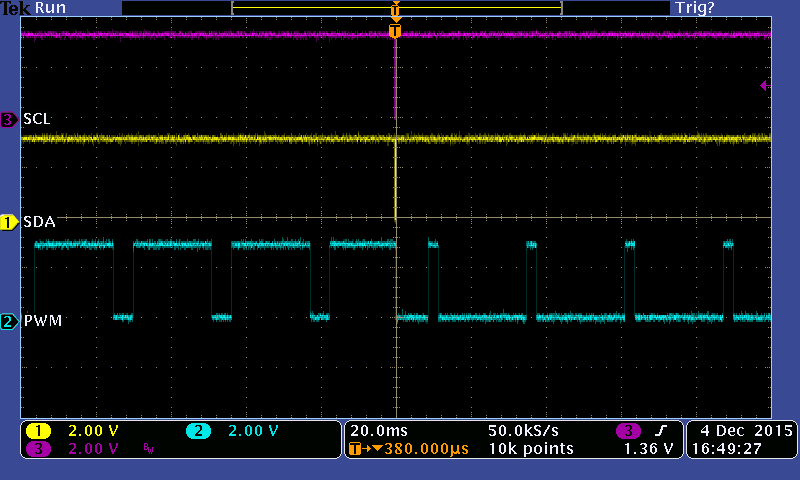

The PWM output is truncated when going from a high to low duty cycle. In the picture below the PWM duty went from 80% to 10%. The last 80% duty cycle is cut short when the 10% duty cycle is written to the part.

-Michael Wong

0 Takumi Suzuki1 over 9 years ago in reply to Michael Wong

Mastermind 8610 points

Hi Michael-san,

Thank you very much for your kind support!
It would be very helpful.

Best Regards,

0 Takumi Suzuki1 over 9 years ago in reply to Aaron Heng

Mastermind 8610 points

Hello Aaron-san,

Thank you very much for your kindness.

Best Regards,
