TMP421 using USB2ANY

Cameron Phillips

Other Parts Discussed in Thread: TMP421, USB2ANY

Hello,

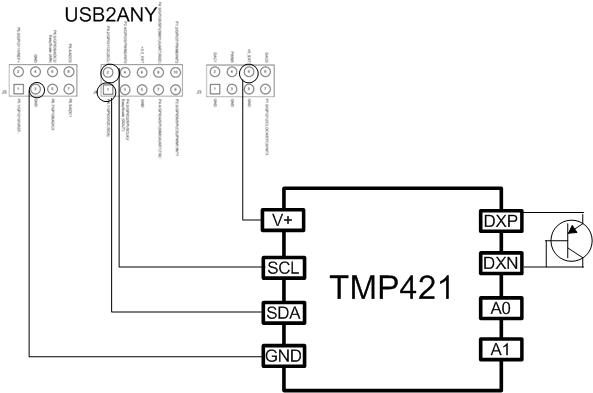

I am trying to run tests on the TMP421 so I want to quickly code it. I am using the USB2Any GUI with slave address 0x2A (A0 & A1 floating) the internal address I assume would be the pointer register so I set it to 00 (local Temperature register) and I cannot write or read. This is my connections.

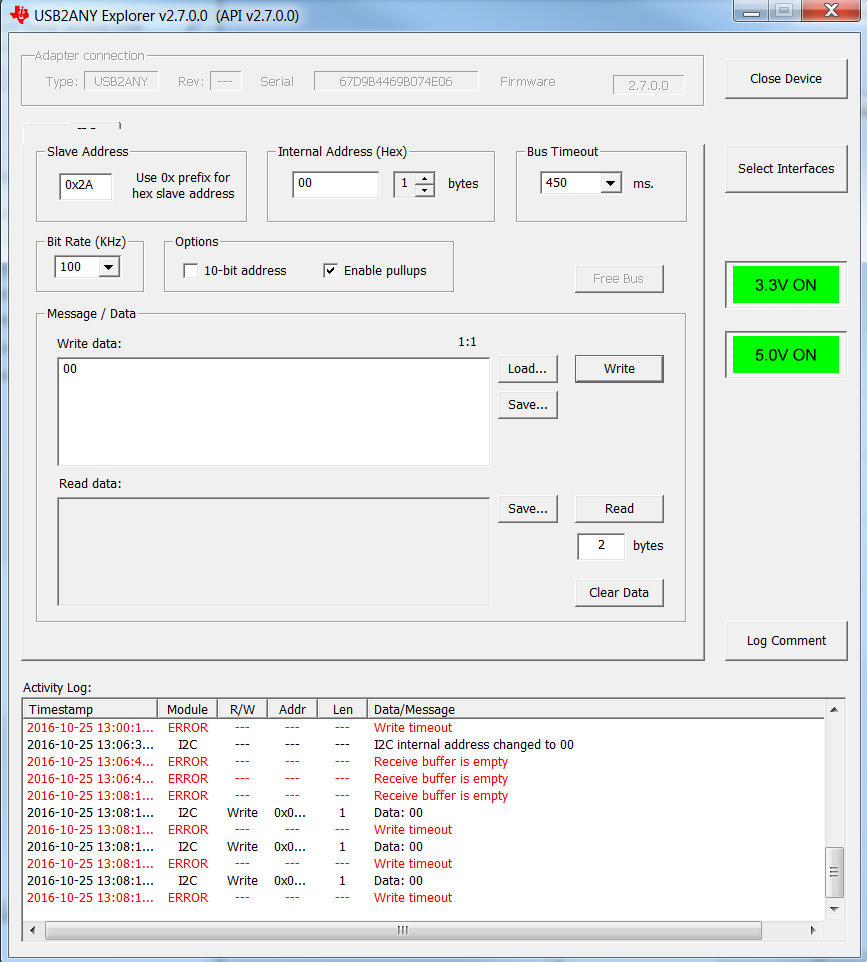

This is the GUI

Please let me know if I am doing something wrong.

Regards,

Cameron

over 8 years ago

0 Aaron Heng over 8 years ago

TI__Mastermind 37220 points

Hi Cameron,

With your USB2ANY connects to the computer, please make sure I2C is selected in the "Select Interfaces" button. Looks like you are using the latest USB2ANY 2.7V firmware. Could you please confirm by reading the firmware revision?

I suspected that the USB2ANY internal pull-up resistor might be too small and not enough in order to pull a logic high for TMP421. Please try to capture scope photo on SCL and SDA. If you can, also add 10kΩ resistor on SCL and SDA pins.

Hope this helps!
Aaron

0 Emmy Denton over 8 years ago

TI__Expert 4905 points

HI Cameron,

Where you able to get the board up and running? If so can you please verify the answer?

Thank you!

0 Cameron Phillips over 8 years ago in reply to Emmy Denton

TI__Genius 12410 points

Emmy,

I was not able to get it working with the USB2any but I used a different I2Cdongle that could communicate.

Thank you for your help.

Regards,

Cameron

0 Emmy Denton over 8 years ago in reply to Cameron Phillips

TI__Expert 4905 points

Hi Cameron,

Thank you for your reply and sorry to hear you were not able to get USB2any working but glad you were able to get another dongle to work.

I will close this thread and thank you for designing with TI products!
