IWR1443: Accuracy of 100 microns

Christophe Cloutier-Tremblay

Part Number: IWR1443

Hi,

Product quick description says accurraxy 100 um +/- 15 micro. I was wondering what is the configuration for such performance since the resolution is inversely proportional to the bandwidth ? And calculation don't lead to such a resolution.

Tanks,

Christophe.

over 8 years ago

0 Vaibhav Mahimkar over 8 years ago

TI__Mastermind 23725 points

Hello Christophe,

For sensing in micro meter resolution the post processing chain and algorithm used is different than the one used in Out of Box demo available in mmWave SDK.

We will get back to you with more details on this.

Thank you,
Vaibhav

0 db_woodall over 8 years ago

TI__Mastermind 21025 points

Hi Christophe,

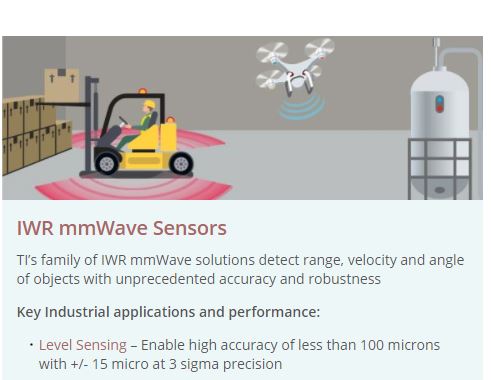

Yes, you are correct, the demos and chirp configuration examples (such as the GUI for the out-of-box demo) are not able to achieve the kind accuracy shown in the graphic above. To get this kind of precision, a multi-stage algorithm is required. Here is a link to a demo which demonstrates this capability:

http://dev.ti.com/tirex/#/?link=Software%2FmmWave%20Training%2FLabs%2FVital%20Signs

It is important as well to remember that we are talking about accuracy, not resolution.

Also, I would recommend some white papers that discuss this topic:

High-Accuracy Range Detection Radar Sensor:

http://ieeexplore.ieee.org/document/6649978/?reload=true

Evaluation of a high accuracy range detection algorithms for FMCW:

http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=5614942

0 Christophe Cloutier-Tremblay over 8 years ago in reply to db_woodall

Intellectual 265 points

Thank you !
