AWR1642BOOST: Radar Studio Configuration

Yang Shen

Prodigy 80 points

Part Number: AWR1642BOOST

Hello,

Our hardware setup: AWR1642BOOST + AR1xxxEVM + TSW1400.

They work all OK for default configuration.

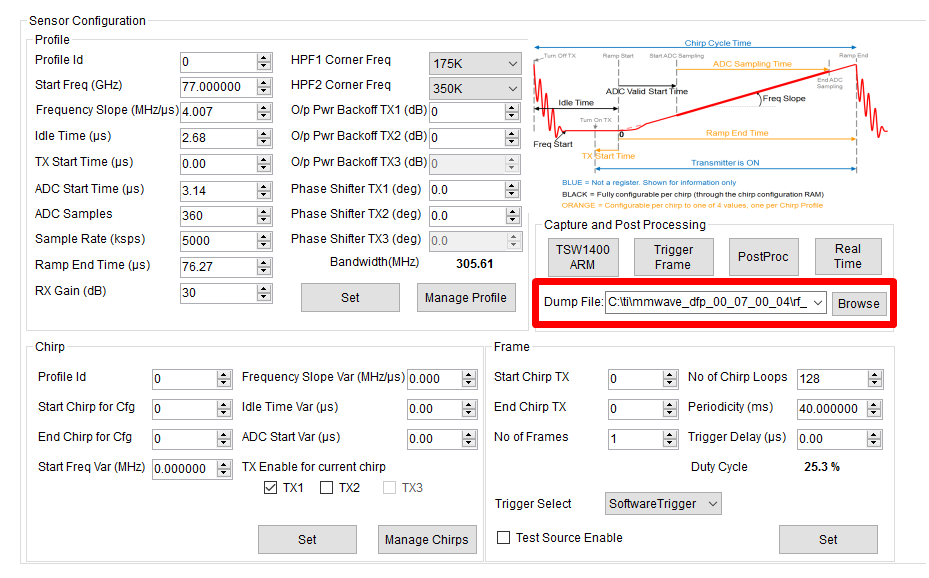

I modify frequency slop, ADC sampling rate and points using Radar Studio:

Then config sensor :

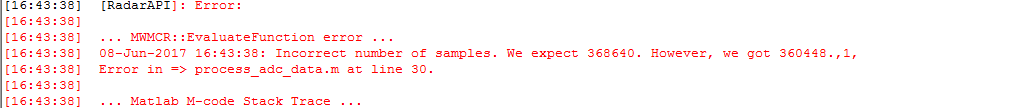

Open radar post processing tool, some errors occur:

Is there any configuration wrong?

over 8 years ago

0 Yang Shen over 8 years ago

Prodigy 80 points

Other question: What format of dump file(adc_data.bin) ? Or where can I find about this?

Thanks.

0 Vaibhav Mahimkar over 8 years ago in reply to Yang Shen

TI__Mastermind 23725 points

Hi Yang,

You have two questions here:
1. Regarding the post processing error after you collect data.
2. Interpreting the data from file.

For #1. Can you please provide a log file from Radar Studio console. Also do the number of Receivers and LVDS lanes match in your configuration.

For #2. We will get back to you on that.

Thank you,
Vaibhav

0 Yang Shen over 8 years ago in reply to Vaibhav Mahimkar

Prodigy 80 points

Hello Vaibhav,

For 1#. I modify the other setting, It works OK.

Is the LVDS lane number equal to the receiver number?

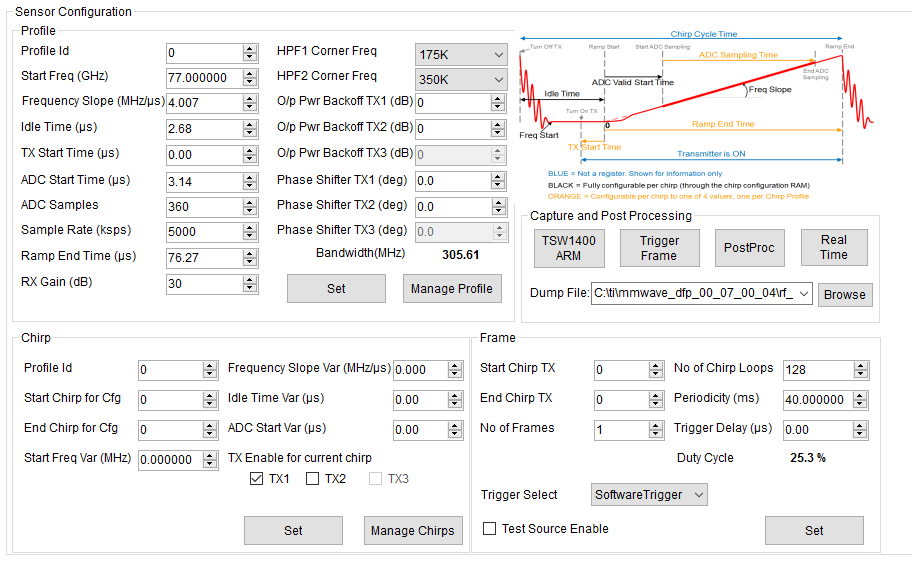

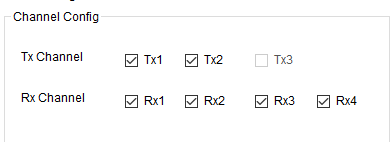

Here is my setting.

For #2 I just want to analysis dump file. Is there any script of MATLAB like ti\mmwave_sdk_01_00_00_05\packages\ti\demo\xwr16xx\capture\gui\capture_demo.m

0 Vivek Dham over 8 years ago in reply to Yang Shen

TI__Guru 58035 points

Hello Yang,
After you changed the setting did you click on "Setup TSW1400 " again before you captured the data?

Regarding the lane configuration, for 1642 the LVDS lane is kind of independent of the RX channels. Once the data is collected from the desired RX channels it can be sent over the 2 LVDS lanes. The present processing available in the radar studio always assumes 2 LVDS lanes.

Regards,
Vivek

0 Vivek Dham over 8 years ago in reply to Vivek Dham

TI__Guru 58035 points

Hello Yang,
Did the TSW1400 capture work after doing the Setup TSW1400 ?

Regards,
Vivek

0 Yang Shen over 8 years ago in reply to Vivek Dham

Prodigy 80 points

Hello Vivek,

All work well, thank you.
