OPT8241-CDK-EVM: Image artifact observed by using voxel viewer

Hyun Choi

Part Number: OPT8241-CDK-EVM

Image artifact was occasionally observed in voxel viewer (indoor measurement). In the attached plots, the bright part at the upper left corner of the image is image artifact, which is not static but moving fast. A similar behavior can be reproduced easily.

The camera was used out of the box, without user calibration.

Amplitude:

Phase:

over 8 years ago

0 Hyun Choi over 8 years ago

Prodigy 90 points

Correction: The artifact is located in the upper "right" corner.

0 Larry Li over 8 years ago in reply to Hyun Choi

TI__Expert 3495 points

Is there way you could record it into a VXL file?

-Larry

0 Hyun Choi37 over 8 years ago in reply to Larry Li

Prodigy 30 points

It seems that .vxl files cannot be attached in this forum (I used the "insert file" button). I can send the file to you separately as needed.

0 Hyun Choi over 8 years ago in reply to Hyun Choi37

Prodigy 90 points

Hi Larry, can I send you a VXL file via email?

0 Hyun Choi37 over 8 years ago in reply to Hyun Choi

Prodigy 30 points

The size of the original example capture is too large to be attached to the forum. Instead, attached another example (zipped VXL file) showing a similar artifact. The artifact is shown if the threshold of the amplitude plot is lowered to increase visualized noise level.

ladder_indoor_7m.zip

0 Larry Li over 8 years ago in reply to Hyun Choi37

TI__Expert 3495 points

Hyun,

I am not seeing anything like your first picture from the VXL you attached. Could you take a snapshot from that VXL playback and arrow-point the spot in the image that concerns you?

-Larry

0 Hyun Choi37 over 8 years ago in reply to Larry Li

Prodigy 30 points

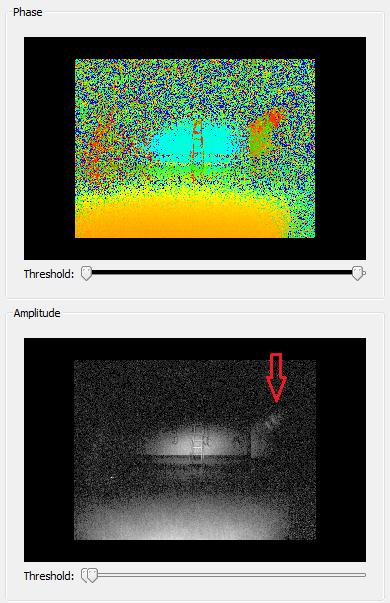

Artifact shown in this example is less noticeable than the earlier case. But a moving object (or artifact) can be found in frame #47667 if threshold for display is set similar to the below example. Thank you.

0 Larry Li over 8 years ago in reply to Hyun Choi37

TI__Expert 3495 points

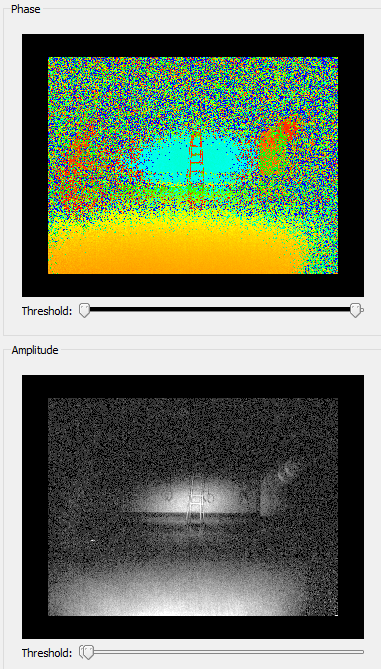

Yes, I can see that now. 1 frame only. Below is my capture. I think they are caused by lens flare that tends to generate overlapping circular patterns like what we are seeing here. The lens's ARC should have taken care of it but there might be some imperfection. Did yo have bright (NIR) light source to the upper right or lower left of the camera?

-Larry

0 Hyun Choi over 8 years ago in reply to Larry Li

Prodigy 90 points

I found similar artifact in dark room, and I don't think there were other NIR light sources. To confirm this, I can test in other locations. Thank you.
