CCS/IWR1642BOOST: Unable to launch capture demo

Shantanu Sampath

Part Number: IWR1642BOOST

Tool/software: Code Composer Studio

Hi,

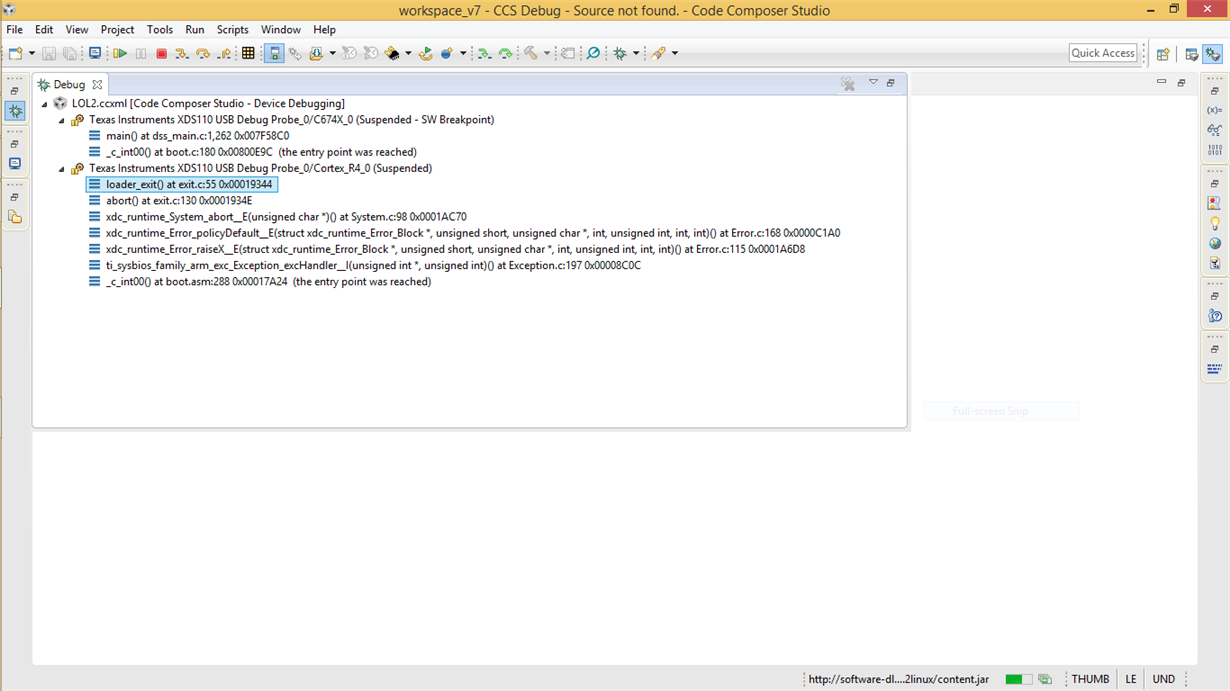

I have flashed the capture demo onto my IWR1642BOOST EVM. After connecting to the correct COM port in TeraTerm, I am unable to get the required capture demo menu. While connecting to Ti CCS, I am unable to launch the ccxml file. Attached screenshot for reference. Please help.

Thanks

Shantanu

over 8 years ago

0 aozer over 8 years ago

TI__Mastermind 30375 points

Hello Shantanu,

It looks like you need to connect the C674X_0 target. Right click on it and select 'Connect Target'.

After you are connected to both cores you will need to load the program files. You can follow the steps shown in the attached guide from slides 20 and on. These are for the out of box demo but the process is the same, just use the .xe754 and .xer4f from C:\ti\mmwave_sdk_01_00_00_05\packages\ti\demo\xwr16xx\capture instead.

xWR16xx_mmw_user_guide.pdf

0 Shantanu Sampath over 8 years ago in reply to aozer

Prodigy 200 points

Thanks for your reply. But after following those steps, the mss_main() fails to load. I have attached a screen shot of the output. PLease help.

Regards,

Shantanu

0 aozer over 8 years ago in reply to Shantanu Sampath

TI__Mastermind 30375 points

Hello Shantanu,

I just tried it on my end and did not encounter the error you are seeing. Can you take a screen shot of your .ccxml file setup? Also, just to confirm that you are using the correct out files, which files are you trying to load to which core?

Regards,

Adrian

0 aozer over 8 years ago in reply to Shantanu Sampath

TI__Mastermind 30375 points

Hello Shantanu,

Were you ever able to launch the capture demo correctly? Please let us know if you are still having issues so that we can help you resolve them.

Regards,

Adrian

0 Shantanu Sampath over 8 years ago in reply to aozer

Prodigy 200 points

Yeah! I was. Thanks
