Hello Sir,
I want evaluate the Phase Stability of IWR14443 at long time and at different temperature.
I will do some temperature cycles to evaluate this.
What is the maximum capture time possible with the Radar Studio suite? i tried to set some configuration to be achieve a long acquisition via Number of Frame, Periodicity and Number of Chirps per Loop, to be have 1 hour of acquisition.
i've tried this (see attached file)
- Sensor Config: Default Setting
- 4 RX, 1TX
- Number of Frame: 3200
- Numeber of chirp Loop: 20
- Periodicity: 1000 ms
to obtain: 3200 x 1000 ms = 3600 sec (round) = 1h (round)

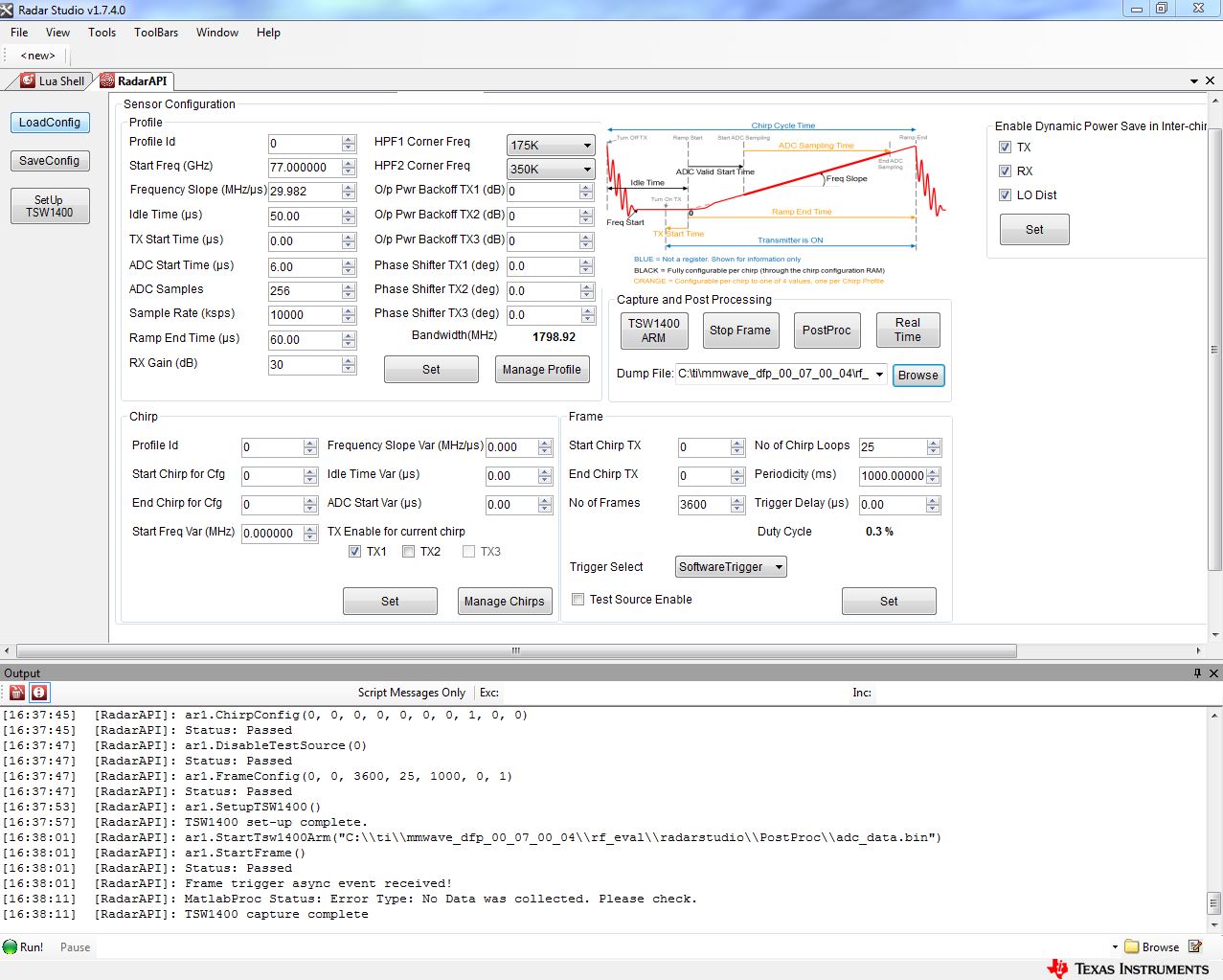

The acquisition it's started (in HSDC pro, the Trigger it's correctly armed and the acquisition it's started) but it's stopped after a few second with no data capture and Error: Matlab Script Exception (see the attached picture)
Is there anybody who can help me?
Thanks a Lot.
CDC
