TDC1000-TDC7200EVM: Start pulse is not detected

Mohammad Rafakath41

Part Number: TDC1000-TDC7200EVM

Hello,

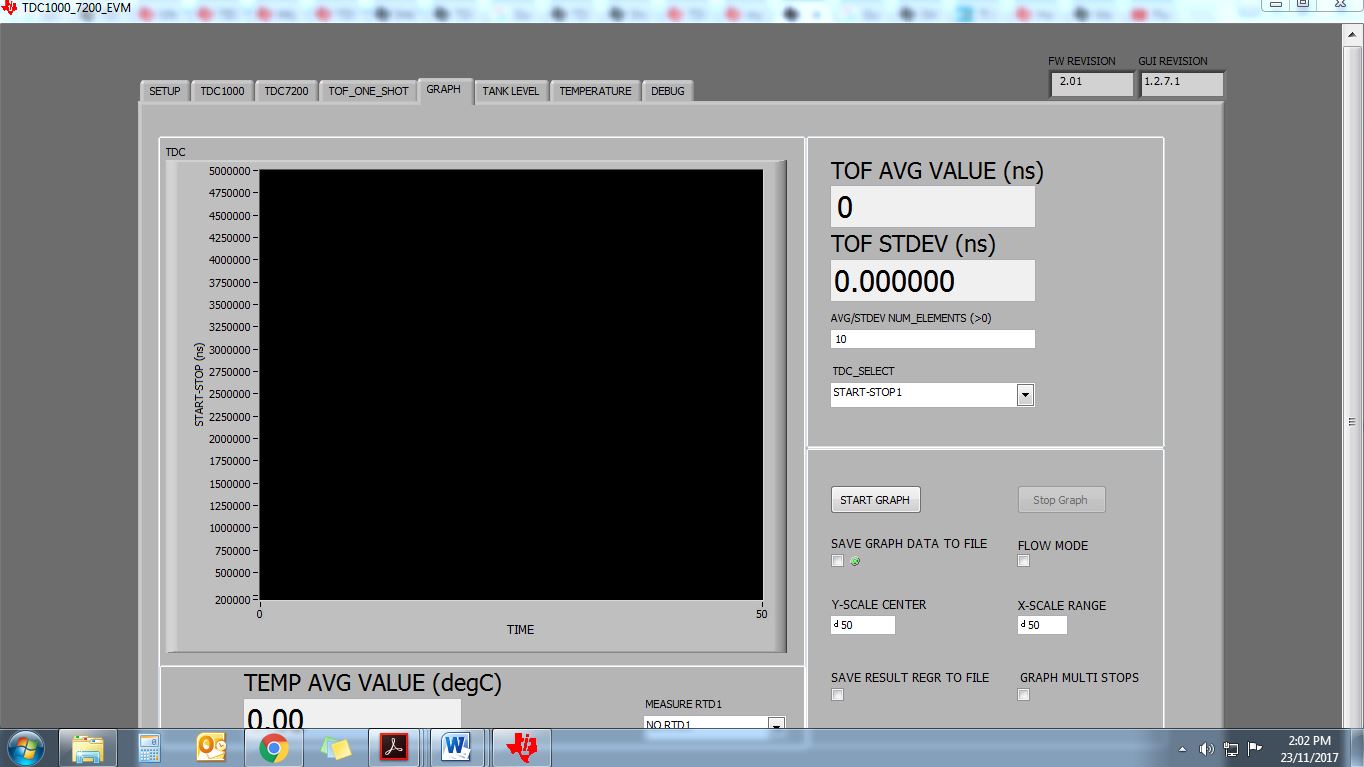

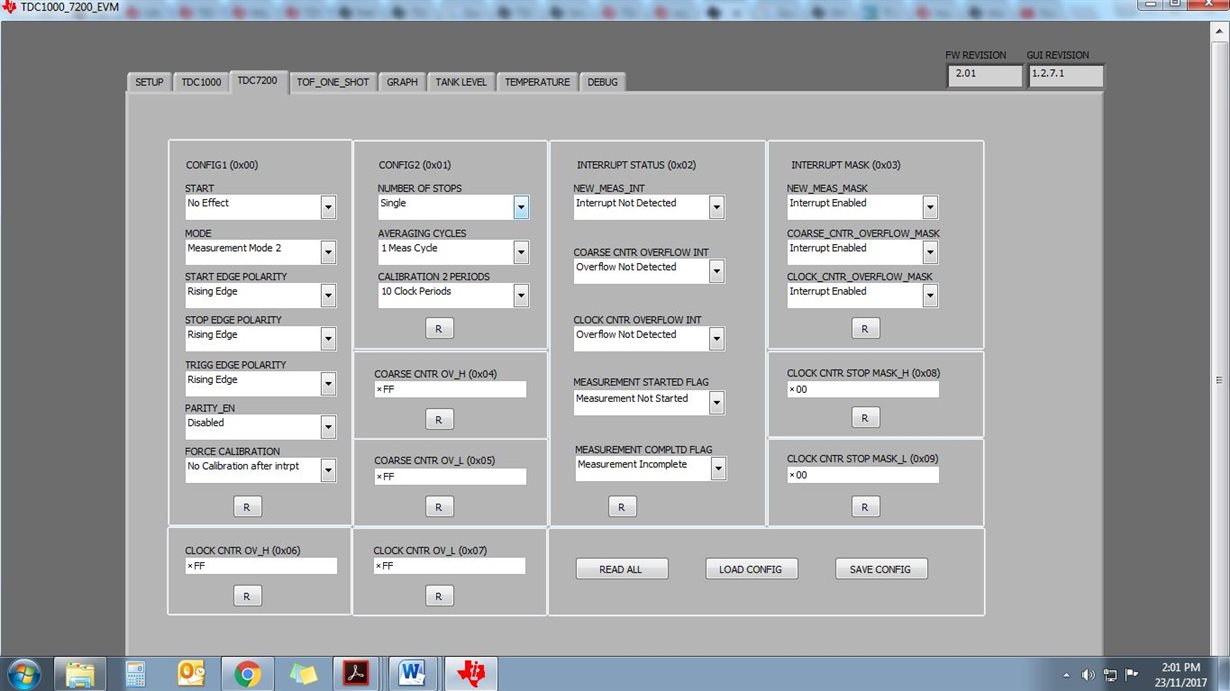

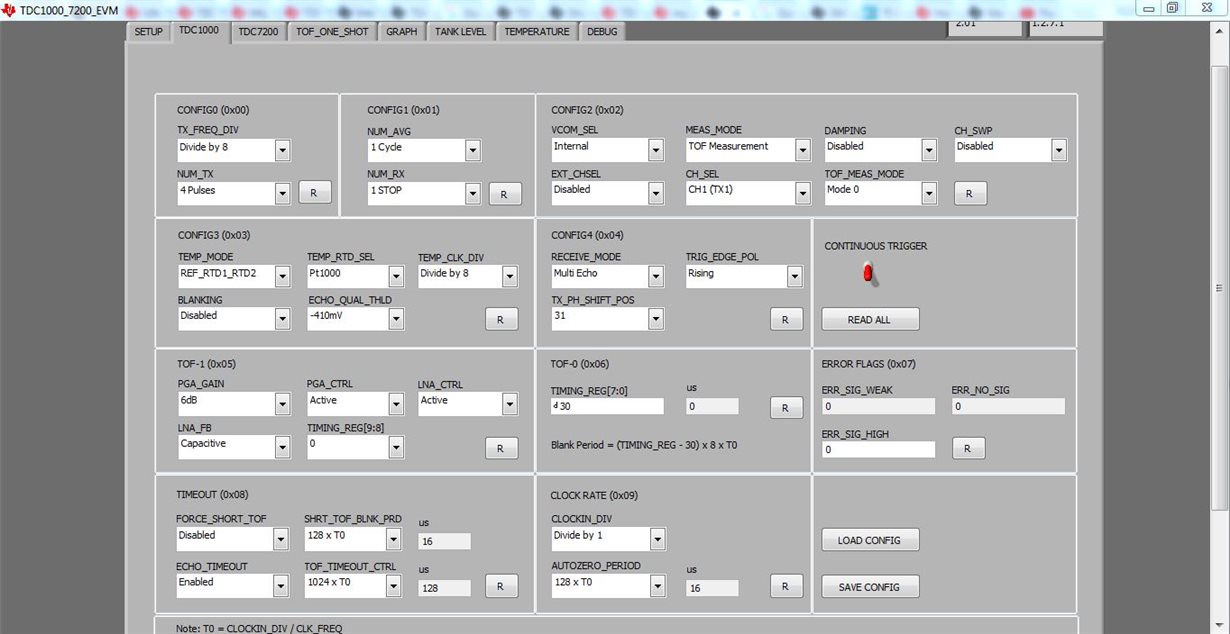

I have got TDC1000-TDC7200EVM kit and installed GUI software and updated to 2.01 revision. After clicking on start graph in Graph section of GUI I am not able to probe start pulse on Digital Oscilloscope. I have provided below default configuration of Board.

over 7 years ago

0 Mohammad Rafakath41 over 7 years ago

Prodigy 130 points

Hello,
I got start pulse it was probe cable fault, now not able to get tank level. Currently I am using default configuration for board. It would be better if any one can provide configuration file for tank level detection.

0 Scott Cummins over 7 years ago in reply to Mohammad Rafakath41

TI__Mastermind 31655 points

Hello,

Due to Thanksgiving holiday the responses on this forum have been delayed. I will be looking into this and get back to you.

Regards,

0 Scott Cummins over 7 years ago in reply to Scott Cummins

TI__Mastermind 31655 points

Hi Mohammad,

The parameter settings are dependent on the sensor being used (if using the sensor included with the EVM, the default should be fine for a wide range of distances).

To start with, please make sure the sensor is properly mounted to your tank. Here is an application note describing the recommended method: www.ti.com/.../snaa266a.pdf

Next, this application note describes the basics of level sensing in tanks. It describes many of the key parameters and how to adjust them for the best performance: www.ti.com/.../snaa270.pdf

Please reference those documents, but to get started I suggest lowering the echo quality threshold, and making sure the transducer is securely mounted before trying to read the level.
