CCS/AWR1642BOOST: capture demo

user5112907

Part Number: AWR1642BOOST

Tool/software: Code Composer Studio

after I execute the cli on teraterm according to the sdk user guide ,I can see nothing in the ccs expression window,what's the problem?

over 7 years ago

0 Raghunandan Kamath over 7 years ago

TI__Mastermind 22155 points

Hello ,

Have followed the below step mentioned in the mmwave-sdk-user-guide ?

Without powering off the board, connect the board to CCS. (See section How to connect xWR14xx/xWR16xx EVM to CCS using JTAG for details on how to connect to CCS). Load the symbols for the capture demo application using executable file provided at mmwave_sdk_<ver>\packages\ti\demo\xwr14xx\capture\xwr14xx_capture_demo_mss.xer4f.
In CCS Expressions window, view the global variable gCaptureMCB and check DMA interrupt counter(dmaIntCounter) and chirp interrupt ounter(chirpIntCounter) after sensorStart command. The chirpIntCounter should match the configuration. Forthe above configuration, the counter should be 128. The dmaIntCounter will be the actual number of DMA transfers triggered.

-Raghu

0 Kyle Cousino over 7 years ago in reply to Raghunandan Kamath

TI__Mastermind 24955 points

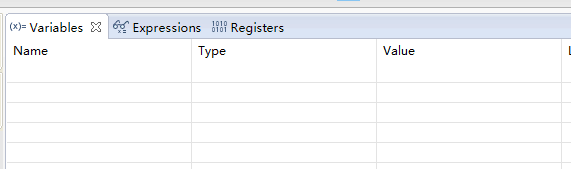

To add on this answer, the variables and and expressions windows are cleared when CCS is loaded. A variable or expression can either be added in manually or done by using the "Load" option in CCS. Feel free to reply if you have any additional questions or need more information.

Kyle

0 Kyle Cousino over 7 years ago in reply to Kyle Cousino

TI__Mastermind 24955 points

Are there any additional questions regarding this issue? If I do not see a reply in the next couple of days, this issue will be considered closed. Please reply if you have any questions.

Regards,
Kyle

0 user5112907 over 7 years ago in reply to Kyle Cousino

Intellectual 930 points

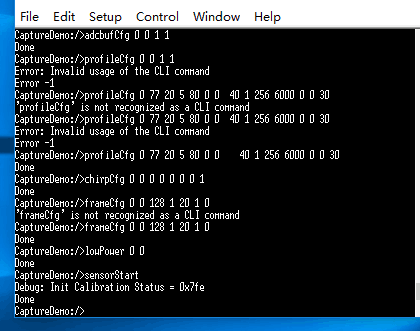

when I send the command 'sensorStart' to to the CLI window,It always prompts error.What should I do ?

0 user5112907 over 7 years ago in reply to user5112907

Intellectual 930 points

0 Kyle Cousino over 7 years ago in reply to user5112907

TI__Mastermind 24955 points

The correct command for this demo is "sensorStart". In your first attempt you issued the command "sensortStart" which is an invalid command. Our SDK provides a script that implements all of the commands that you need to correctly run this demo. Based on which high speed interface you use, there are two possible options:

Option #1: CSI-2
mmwave_sdk_<ver>\packages\ti\demo\xwr14xx\capture\csi_stream_demo_script.txt

Option #2: LVDS
mmwave_sdk_<ver>\packages\ti\demo\xwr14xx\capture\lvds_stream_demo_script.txt

Please let us know if you still have any issues after using these provided scripts.

Regards,
Kyle

0 user5112907 over 7 years ago in reply to Kyle Cousino

Intellectual 930 points

I have input all the commands according to the script.txt,but it still shows an error.

0 Kyle Cousino over 7 years ago in reply to user5112907

TI__Mastermind 24955 points

The adcCfg line should be: adcCfg 2 2

Please give that a try and see if it works. Let us know if you have any questions.

Regards,
Kyle
