LMT01: Lmt01 Pulse problem

Nikhil T11

Part Number: LMT01
Other Parts Discussed in Thread: CC2650,

Hi,
We are using "LMT01QLPGQ1" Temperature sensor to integrate with cc2650 module
For that we made attached circuit diggram using npn Transistor in datasheet it is described that It will give number of pulses according to temperature but while we are watching on CRO it is giving very less number of pulses In 100 millisec

over 7 years ago

0 Aaron Heng over 7 years ago

TI__Mastermind 37060 points

Hi Nikhil,

The circuitry looks good, which I had on my test board. The only thing that it could goes wrong is you have the Vp and Vn swapped. Could you please disconnect the VN_NOT from your cc2650 and connect it to oscillscope? Please provide me the scope photo once you have it captured.

Aaron

0 Nikhil T11 over 7 years ago in reply to Aaron Heng

Prodigy 30 points

Thanks Aaron

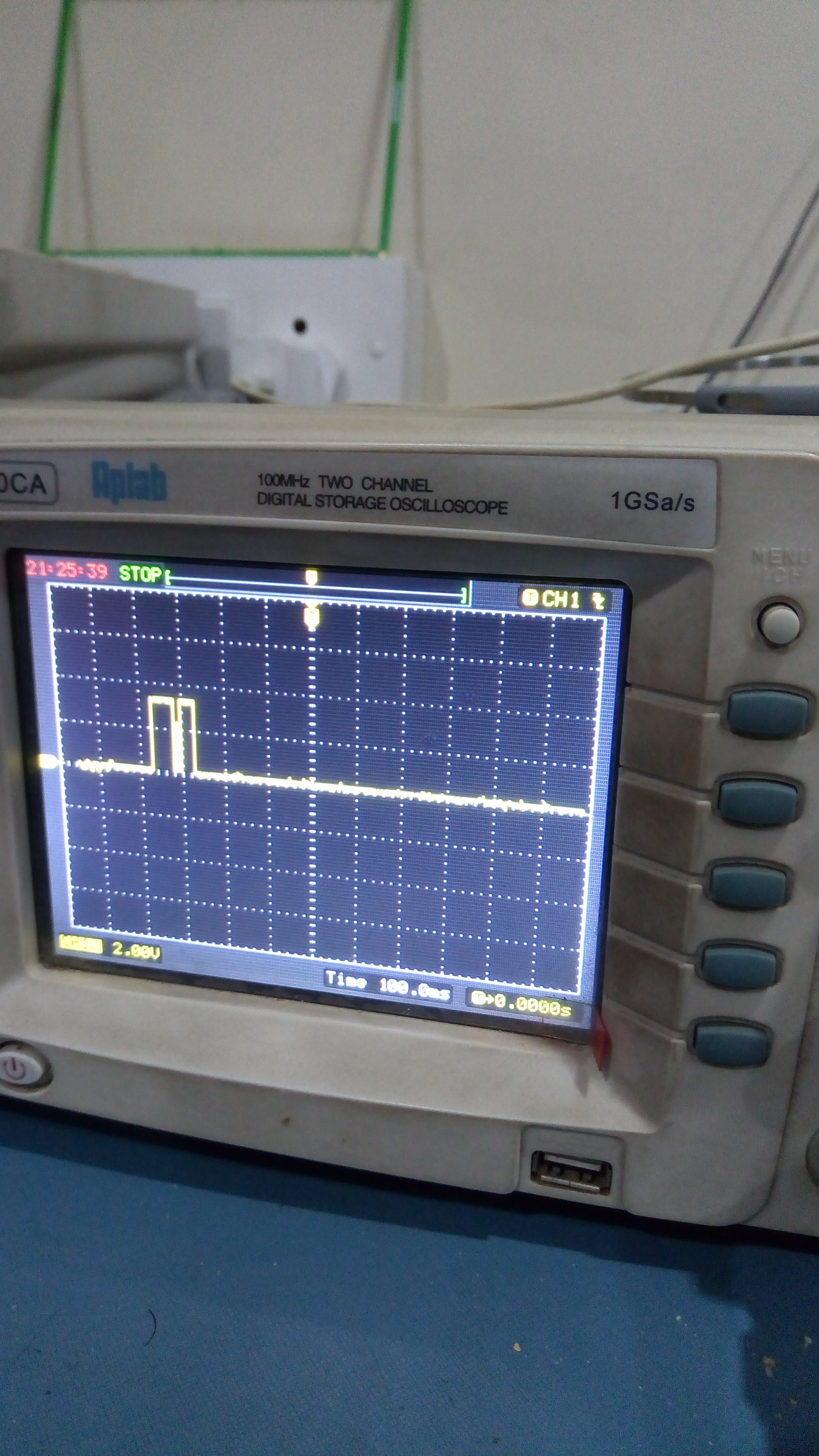

Here Iam attaching the Oscilloscope Diagram that was captured in 100msec periode

0 Aaron Heng over 7 years ago in reply to Nikhil T11

TI__Mastermind 37060 points

Hi Nikhil,

The screen snapshot does not look like output waveform from LMT01. It should be continously output the pulse count. You need double check the LMT01 if you get the Vp and Vn correctly. Also, what is the NPN transistor you are using. I am using 2N3904.

Aaron

0 Nikhil T11 over 7 years ago in reply to Aaron Heng

Prodigy 30 points

Dear Aron

We used BC847 npn transistor and with in that LOW pulse there is more number of pulses

Regards,

Nikhil

0 Aaron Heng over 7 years ago in reply to Nikhil T11

TI__Mastermind 37060 points

Hi Nikhil,

I wasn't sure understanding your comment. The NPN transistor that you were using should be fine. Did you have a chance to verify if you have the pin reverse?

Aaron
