AWR1642: Capture demo configuration

Part Number: AWR1642

Hello,

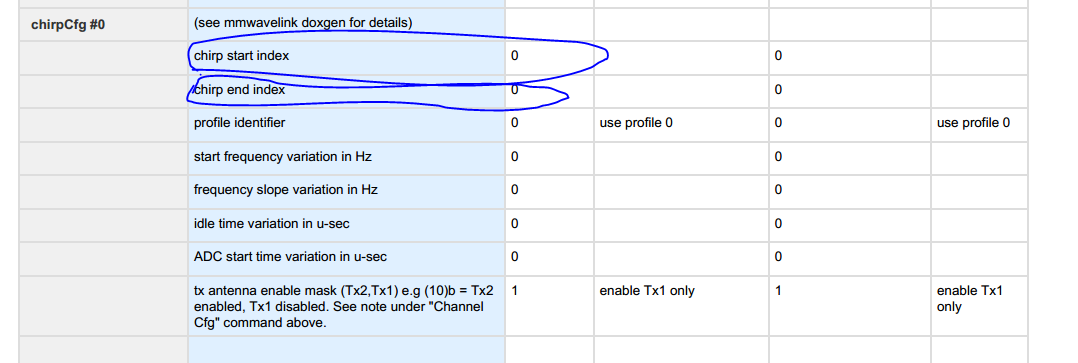

I want to ask what do chirpCfg #0 and chirpCfg #1( chirp start index  and chirp end index)repesent ?Also what  does  frameCfg( chirp start index (0-511)  and chirp end index (chirp start index-511))repesent ? I do not quite understand,As follows:

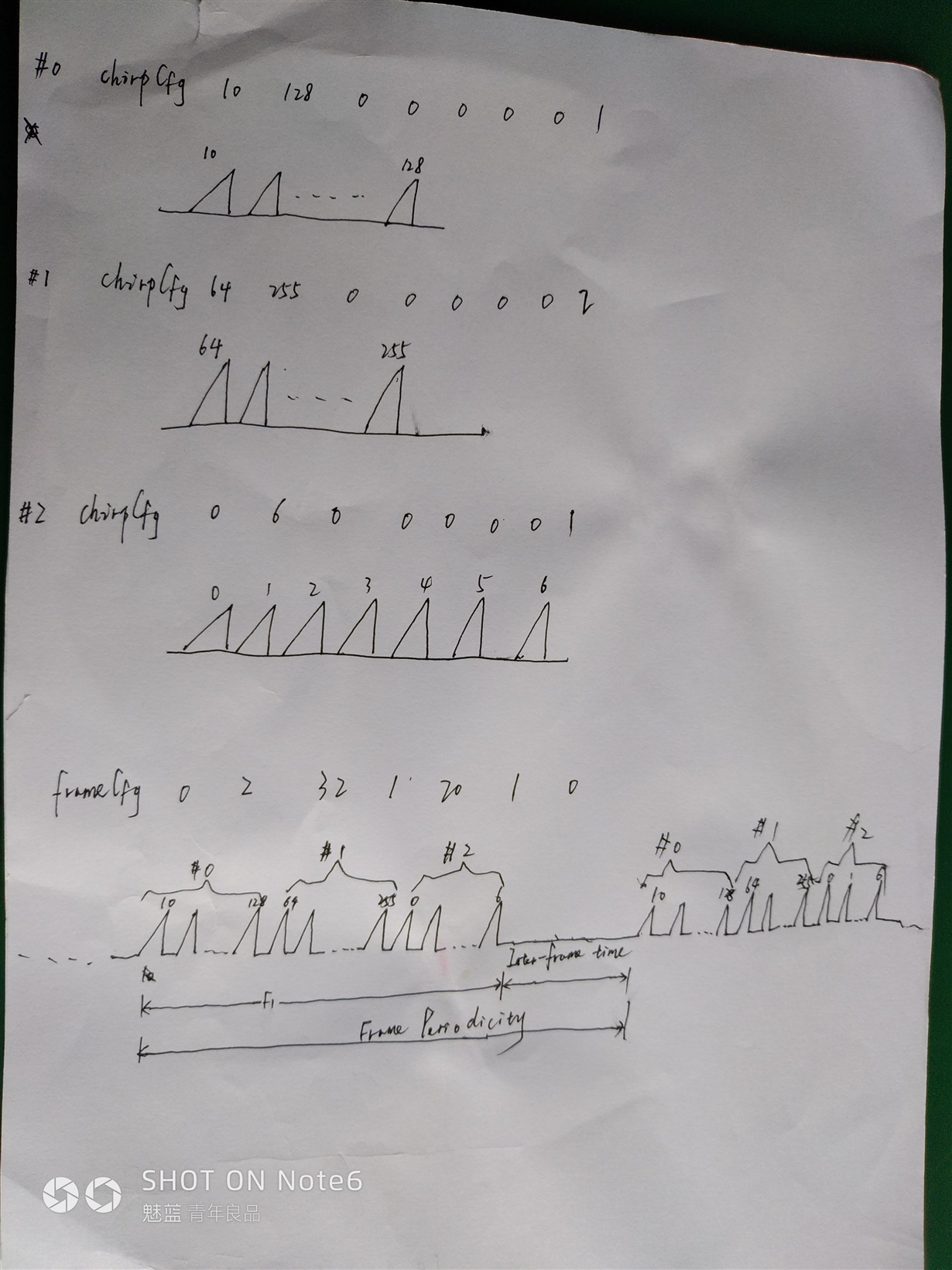

If this parameter is as follows:

chirpCfg 10 128 0 0 0 0 0 1

chirpCfg 64 255 0 0 0 0 0 1

frameCfg 32 511 128 1 20 1 0

Can you explain it in a picture way?

Thanks!
