AWR1642BOOST: Data display

Alabama2000

Part Number: AWR1642BOOST

Hi,

I have AWR1642BOOT demo kit with gui. I Start to analyze data and I have some question. There's no conenction between display data and real data. For example: data return 5 point on GUI you see 3. And if you represent it in X/Y coordonate you will realize that what you see in GUI are not same what data is return.

I insert Config.txt contain configuration data. MyDataLoadData1.log - raw data from board.

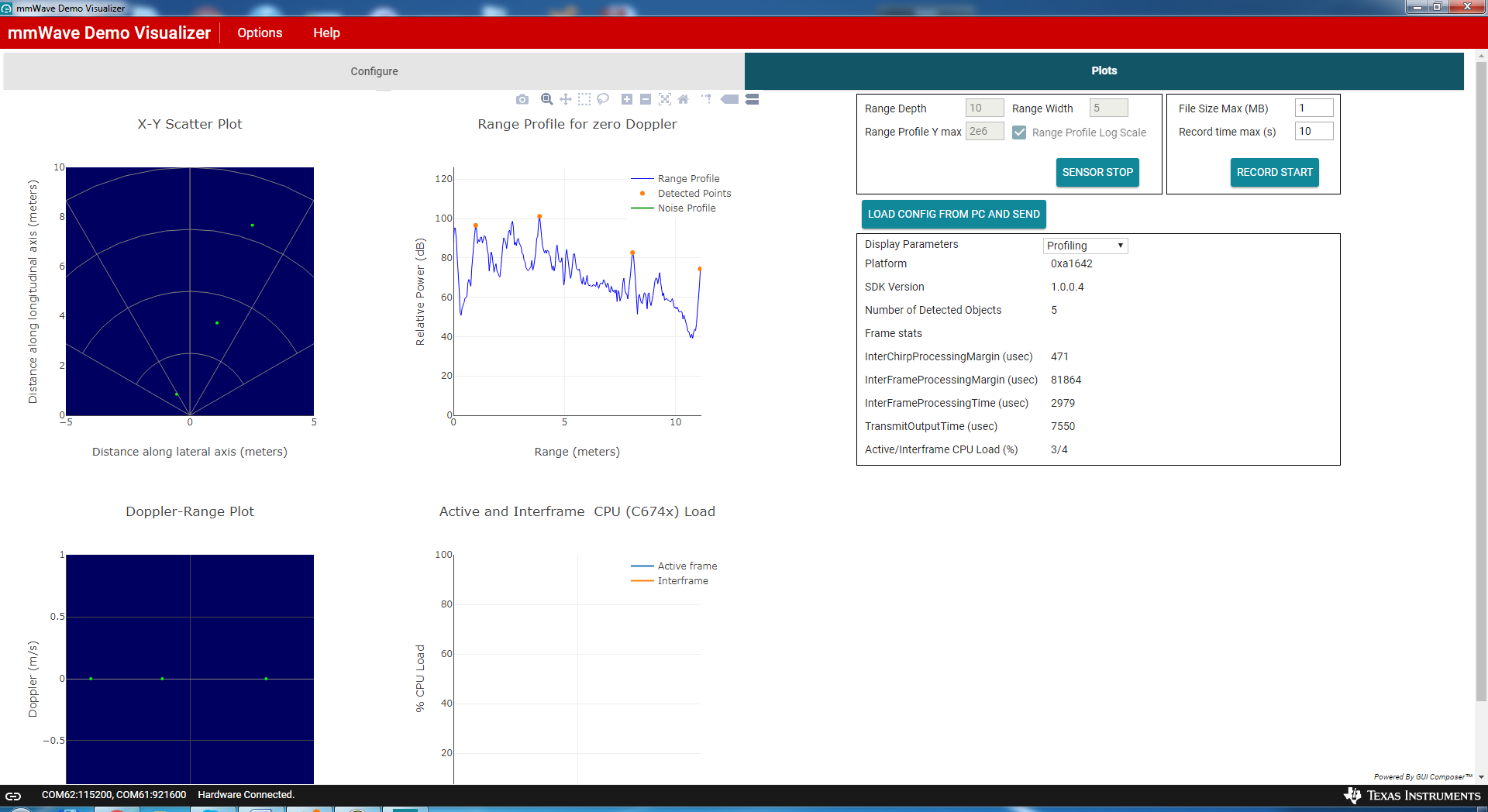

DisplayData.png is what you see. Look for example to last data:

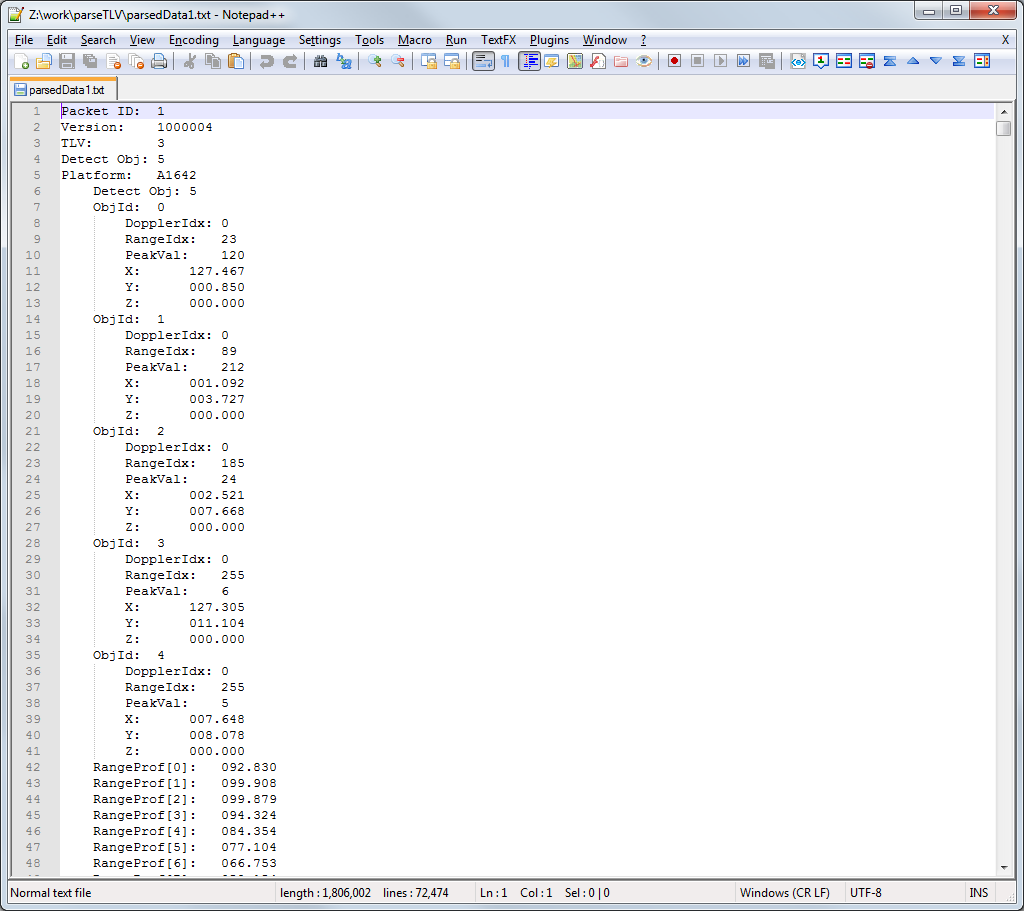

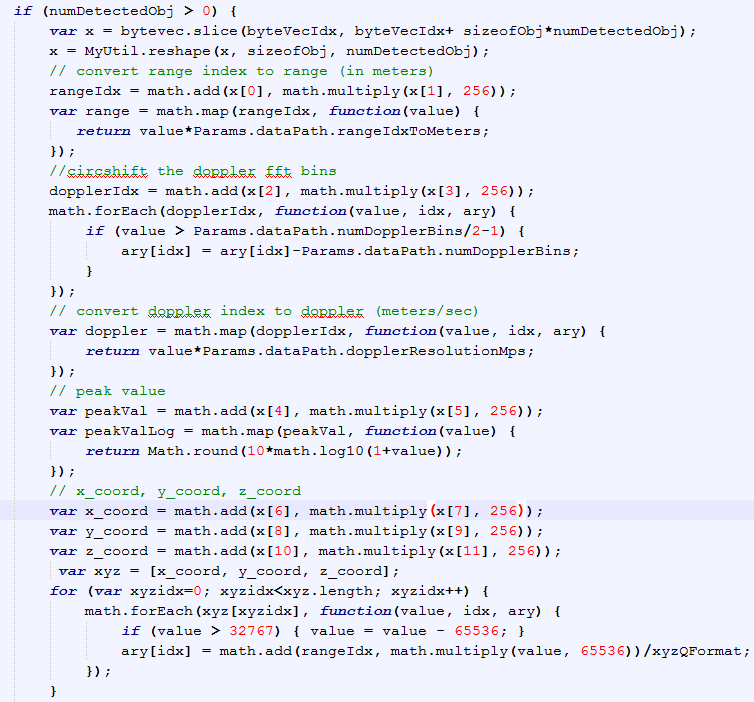

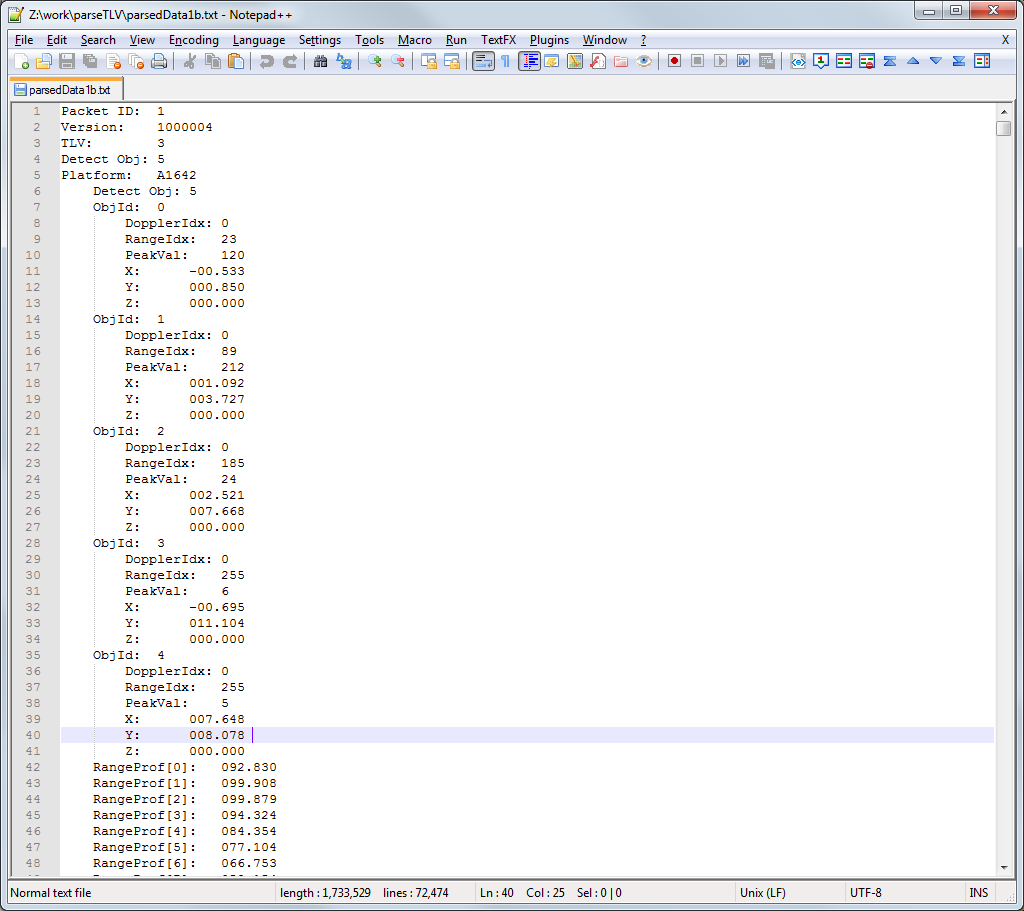

InfoData1.txt - data parse from raw - look to last data if this are same with DisplayData.png they should work in very strange mathematical system.

MyLoadData1.log 8877.InfoData1.txt

Fullscreen Config.txt Download

000001: PnP Event (DOWN), 2018-01-02 23:30:23.3999710 (1. Device: Playback)
The device has just been connected to the system.
000002: Create Request (DOWN), 2018-01-02 23:31:06.6971865 +43.2972155 (1. Device: Playback)
Process 0xf48 (<Unable to retrieve process name>) attempted to open the device
000003: Create Request (UP), 2018-01-02 23:31:06.6971865 +0.0000000 (1. Device: Playback)
Process 0xf48 (<Unable to retrieve process name>) create request status: 0x00000000
000005: I/O Request (UP), 2018-01-02 23:31:06.6971865 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_GET_BAUD_RATE: Retrieve Baud Rate
  Baud Rate=115200
000007: I/O Request (UP), 2018-01-02 23:31:06.6981865 +0.0010000 (1. Device: Playback)
IOCTL_SERIAL_GET_LINE_CONTROL: Retrieve line control
  WordLength=8
  StopBits=1 stop bit
  Parity=No parity
000009: I/O Request (UP), 2018-01-02 23:31:06.6981865 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_GET_CHARS: Retrieve special characters
  EofChar=0x0
  ErrorChar=0x0
  BreakChar=0x0
  EventChar=0x0
  XonChar=0x0
  XoffChar=0x0
000011: I/O Request (UP), 2018-01-02 23:31:06.6981865 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_GET_HANDFLOW: Retrieve handshake information
  ControlHandShake=1
  FlowReplace=64
  XonLimit=0
  XoffLimit=0

000012: I/O Request (DOWN), 2018-01-02 23:31:06.6981865 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_SET_BAUD_RATE: Set baud rate
  Baud Rate=115200

000014: I/O Request (DOWN), 2018-01-02 23:31:06.6981865 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_SET_RTS: Set RTS

000016: I/O Request (DOWN), 2018-01-02 23:31:06.6981865 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_SET_DTR: Set DTR

000018: I/O Request (DOWN), 2018-01-02 23:31:06.6981865 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_SET_LINE_CONTROL: Set line control
  WordLength=8
  StopBits=1 stop bit
  Parity=No parity

000020: I/O Request (DOWN), 2018-01-02 23:31:06.6991866 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_SET_CHARS: Set special characters
  EofChar=0x0
  ErrorChar=0x0
  BreakChar=0x0
  EventChar=0x0
  XonChar=0x0
  XoffChar=0x0
000022: I/O Request (DOWN), 2018-01-02 23:31:06.6991866 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_SET_HANDFLOW: Set handshake information
  ControlHandShake=1
  FlowReplace=64
  XonLimit=0
  XoffLimit=0

000024: I/O Request (DOWN), 2018-01-02 23:31:06.6991866 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_SET_TIMEOUTS: Set timeouts
  ReadIntervalTimeout=1
  ReadTotalTimeoutMultiplier=0
  ReadTotalTimeoutConstant=1000
  WriteTotalTimeoutMultiplier=1
  WriteTotalTimeoutConstant=1000

000026: I/O Request (DOWN), 2018-01-02 23:31:06.6991866 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_PURGE: Purge requests
  Purge mask=RXCLEAR: Write buffer

000028: I/O Request (DOWN), 2018-01-02 23:31:06.6991866 +0.0000000 (1. Device: Playback)
IOCTL_SERIAL_PURGE: Purge requests
  Purge mask=TXCLEAR: Write requests

000031: Read Request (UP), 2018-01-02 23:31:06.7011867 +0.0020001 (1. Device: Playback)
Buffer size: 0x80 bytes
Status: 0x00000102
 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A   ****************
 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A   ****************
 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 0A 0D 78 57 52 31   **********..xWR1
 36 78 78 20 4D 4D 57 20 44 65 6D 6F 20 30 31 2E   6xx MMW Demo 01.
 30 30 2E 30 30 2E 30 34 0A 0D 2A 2A 2A 2A 2A 2A   00.00.04..******
 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A   ****************
 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A   ****************
 2A 2A 2A 2A 0A 0D 6D 6D 77 44 65 6D 6F 3A 2F 3E   ****..mmwDemo:/>
