AWR1642: Continious wave's phase noise test

Wesley He

Part Number: AWR1642

Hi,

My customer is testing the phase noise in continuous wave mode. Compare with AWR1642EVM, customer’s own AWR1642 board’s phase noise isn't good enough.

Can you please check with this configuration, is phase noise will be influenced by the configuration?

Also, can you please give some advises that can help to improve the phase noise?

I have attached customer’s configuration and the test result.

SDK: mmwave_sdk_01_01_00_02
Demo: Capture demo run in Continuous wave mode
Customer’s configuration:
sensorStop
flushCfg
dfeDataOutputMode 2
channelCfg 2 1 0
adcCfg 2 2
adcbufCfg 0 0 1 1
lowPower 0 0
contModeCfg 77 0 0 6000 0 0 30 1 1024
sensorStart

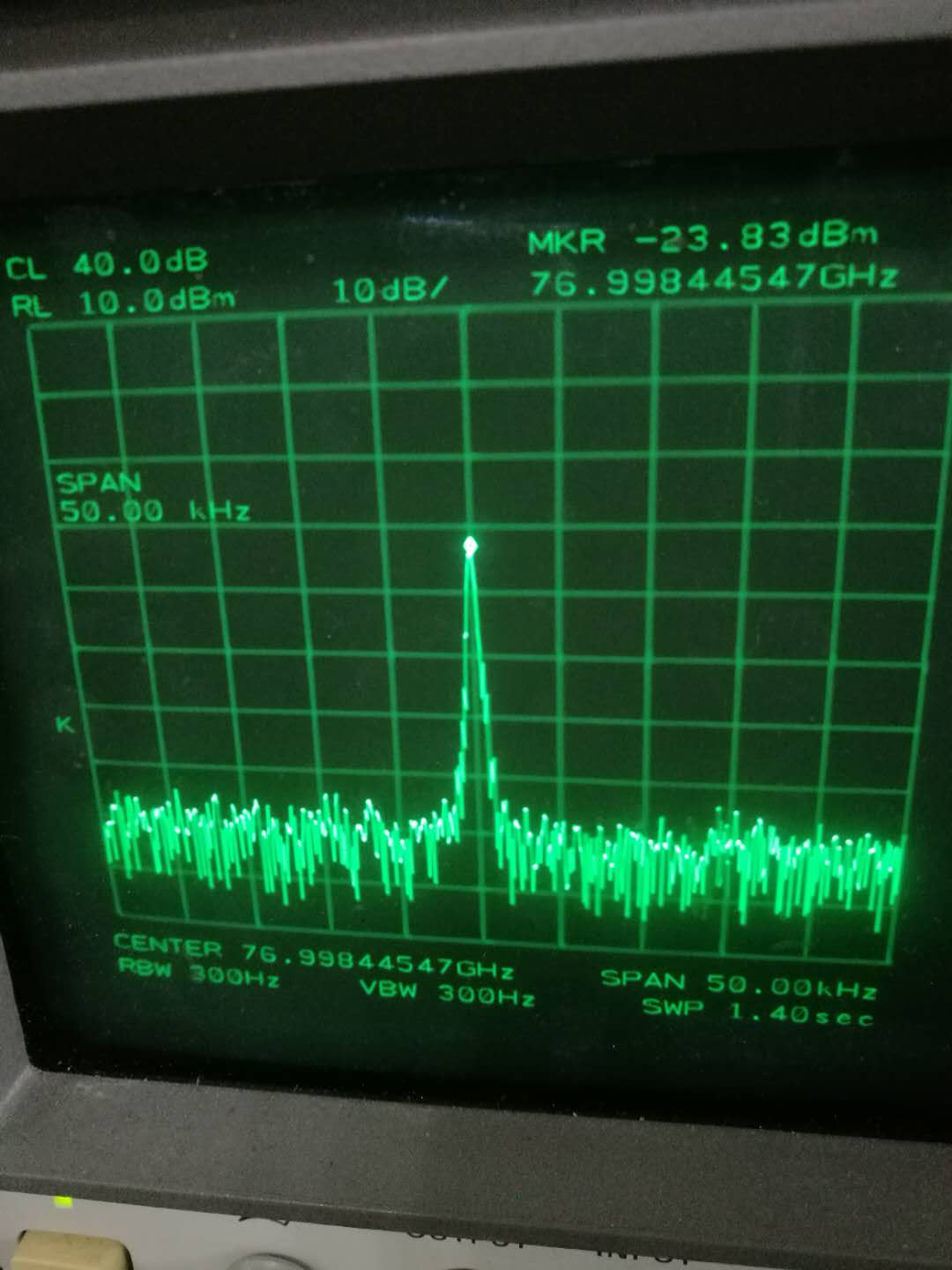

Test result on AWR1642 EVM is shown below

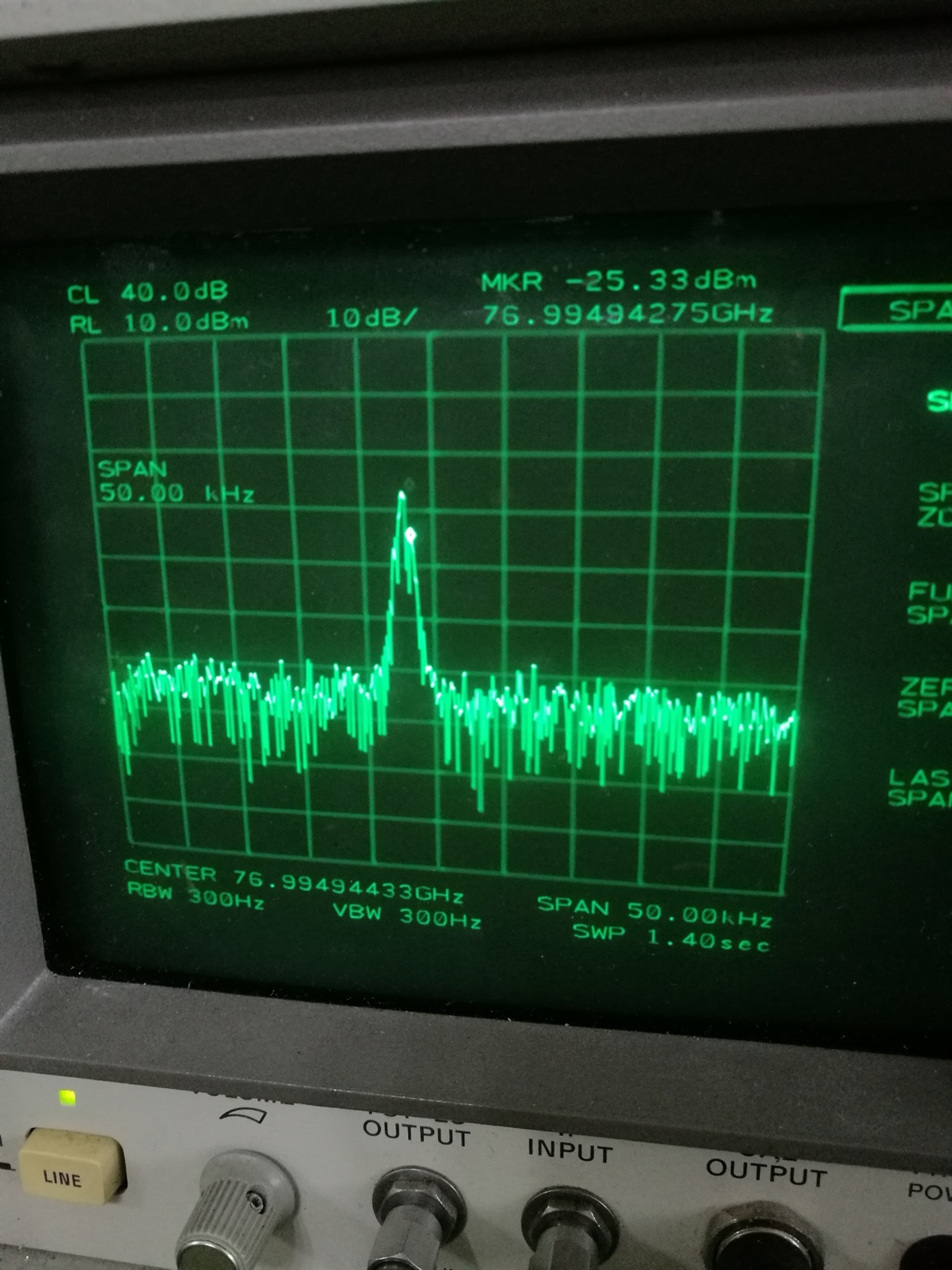

Test result on Customer’s AWR1642 Board is shown below.

over 7 years ago

0 Raghunandan Kamath over 7 years ago

TI__Mastermind 22155 points

Hello Wesley,
We will get back to you with our observation ASAP.

Thanks,
Raghu

0 Vivek Dham over 7 years ago

TI__Guru 58035 points

Hello Wesley,
I assume both the measurements are done with the same SDK version and configurations. Are you using the latest SDK package : 01_01_00_02 ?

Regards,
Vivek

0 Wesley He over 7 years ago in reply to Vivek Dham

TI__Expert 6205 points

Hi Vivek,
Yes, the SDK version is the latest one, 01_01_00_02.
If you have further questions, please let me know. thanks.

Regards,
Wesley

0 Vivek Dham over 7 years ago in reply to Wesley He

TI__Guru 58035 points

Hello Wesley,
Is the plot taken by using averaging in the spectrum analyzer? I am just thinking if this is actually frequency drift over time rather than phase noise issue. Can they remove the averaging and reduce the sweep time to get more instantaneous plot?
If the PCB heats up the onboard XTAL frequency can drift and hence change the frequency a little.

Regards,
Vivek
