TDC1000-TDC7200EVM: Increase amplitude of TX pulses

Prudhvi Sagar

Genius 3785 points

Part Number: TDC1000-TDC7200EVM

Hello,

If I purchase TDC1000-GASEVM, can I connect BSTEVM which I get along with it to work with TDC1000-7200 EVM? I need to work with 1 MHz transducers so GASEVM i cannot directly use. Does BSTEVM require a modification or can it be used directly with TDC1000-7200 EVM to increase the amplitude of TX pulses.

Regards,

Prudhvi Sagar

over 7 years ago

0 Scott Cummins over 7 years ago

TI__Mastermind 31655 points

Hi Prudhvi,

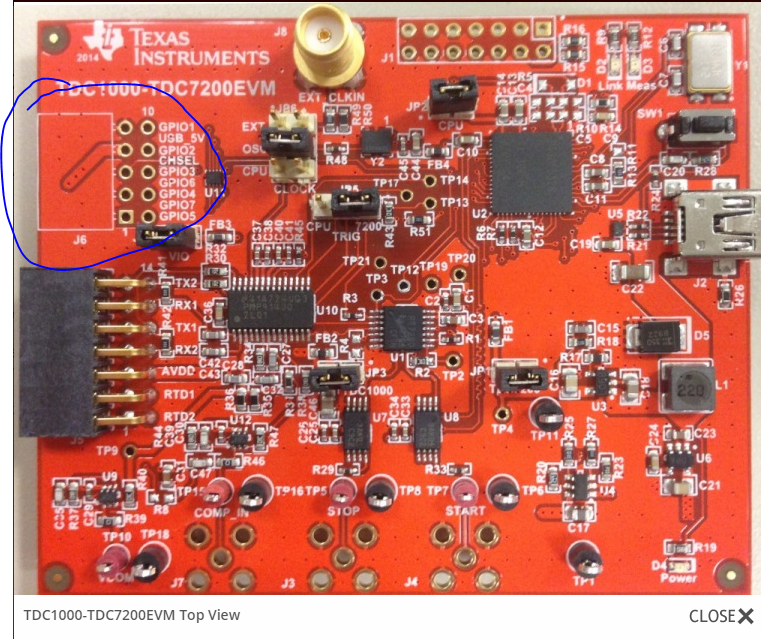

You can use the BSTEVM with the TDC1000-TDC7200EVM, but you will have to add the female headers to the part of the board circled below:

No other modification is necessary for use with 1Mhz transducers.

0 Prudhvi Sagar over 7 years ago in reply to Scott Cummins

Genius 3785 points

Hello sir,
If I purchase TDC1000-GASEVM do i get the board BSTEVM along with it?

Regards,
Prudhvi Sagar

0 Scott Cummins over 7 years ago in reply to Prudhvi Sagar

TI__Mastermind 31655 points

Yes, the TDC1000-GASEVM includes the BSTEVM.
