IWR1642BOOST: Reading the UART part without USB

Anup Kulkarni

Part Number: IWR1642BOOST
Other Parts Discussed in Thread: IWR1642

Hi,

I have brought a IWR1642 BOOST EVM for vehicle detection. I tried the mmWave Visualiser and was able to detect the desired objects in the X-Y plot and the doppler plot.

I would like to now get the data of the detected objects using a microcontroller. I know the EVM has a UART port but i see no data coming out of it ( used an osciloscope to check) even when the Visualiser is running.

What is the best way to interface with a microcontroller which has no USB port to read the data from.

over 7 years ago

0 Akash Gondalia over 7 years ago

TI__Guru 50240 points

Hi Anup,

Can you confirm which pin you are probing with oscilloscope?

Cheers,
Akash

0 Wesley He over 7 years ago

TI__Expert 6205 points

Hi Anup,

You can use PIN5 and PIN7 in J6 connector.

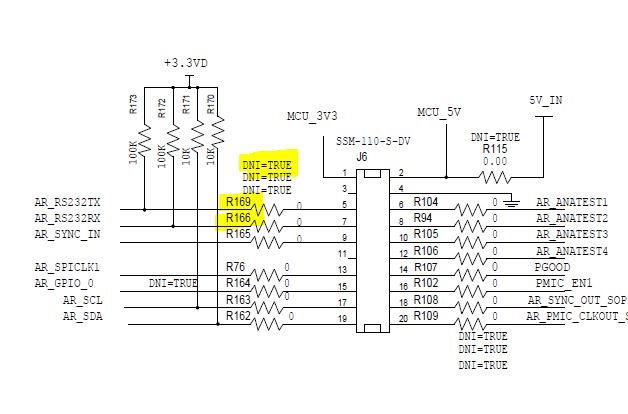

But the R166 and R169 is disconnected, you should connected these 2 resistance, then disconnect the R128 and R129 on EVM.

If you have any further questions, please let me know. Thanks.

Regards,

Wesley

0 Anup Kulkarni over 7 years ago in reply to Akash Gondalia

Intellectual 335 points

I am probing on the the J6 header pins 5 (Tx) and pin 7 (Rx).

0 Anup Kulkarni over 7 years ago in reply to Wesley He

Intellectual 335 points

5187.4201.DataStructure_table.pdfI tried 2 things

1. First I connected the R166 and R169 resistors and was able to see, some data being sent and received on the Tx and Rx pin *only* when I pressed the " Send Config to mmDevice" button. I get no data on Tx or Rx pin when the shift over to the plot tab in Visualiser.

I was expecting a stream of data ( in the format as given in the attached file) but I get no data on the Rx pin.

2. I disconnected the R128 and R129 resistors and still couldn't read any data from the Tx/Rx pins. Do I need to send some configuration information using the Tx & Rx pins? What is the way out for this?

0 Wesley He over 7 years ago in reply to Anup Kulkarni

TI__Expert 6205 points

Hi Anup,

To use the Visualiser with external UART, the data is shown below:

Config Port: PC -> RS232_RX(PIN7 in J6) -> RS232_RX(IWR1642)

Data Port: AR_MSS_LOGGER(IWR1642) -> AR_MSS_LOGGER(PIN9 in J5) -> PC

When you click "Send Config to mmDevice", you can probe the data in RS232_TX and RS232_RX.

When the radar is measuring, you can probe the data in AR_MSS_LOGGER.

If you have any further questions, please let me know. Thanks.

Regards,

Wesley

0 Anup Kulkarni over 7 years ago in reply to Wesley He

Intellectual 335 points

Thanks.
I conneced the R26 resistor and now I am able to probe signals from AR_MSS_LOGGER.
Thanks.
