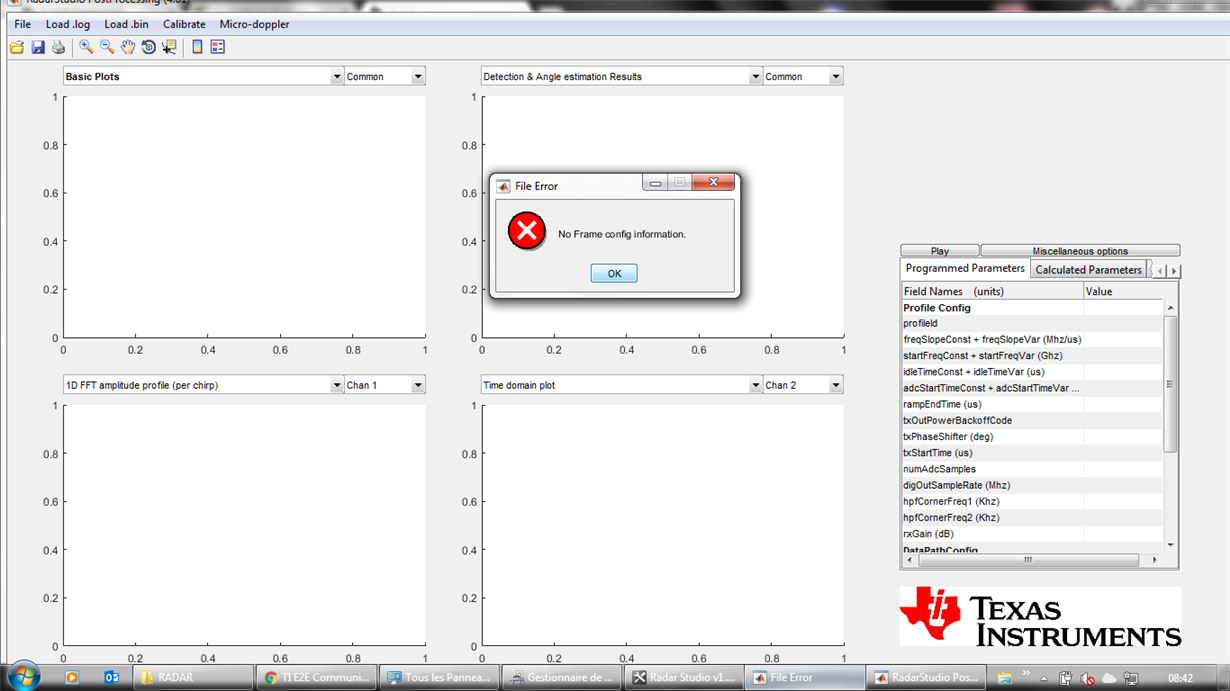

IWR1642BOOST: Post Processing display "No frame config information"

Clem

Part Number: IWR1642BOOST

Hi TI Team,

I have an IWR1624 and mmWave Dev-Pack. I use Radar Studio to observe the Radar EVM behavior but when I boot up Post Processing, I get :

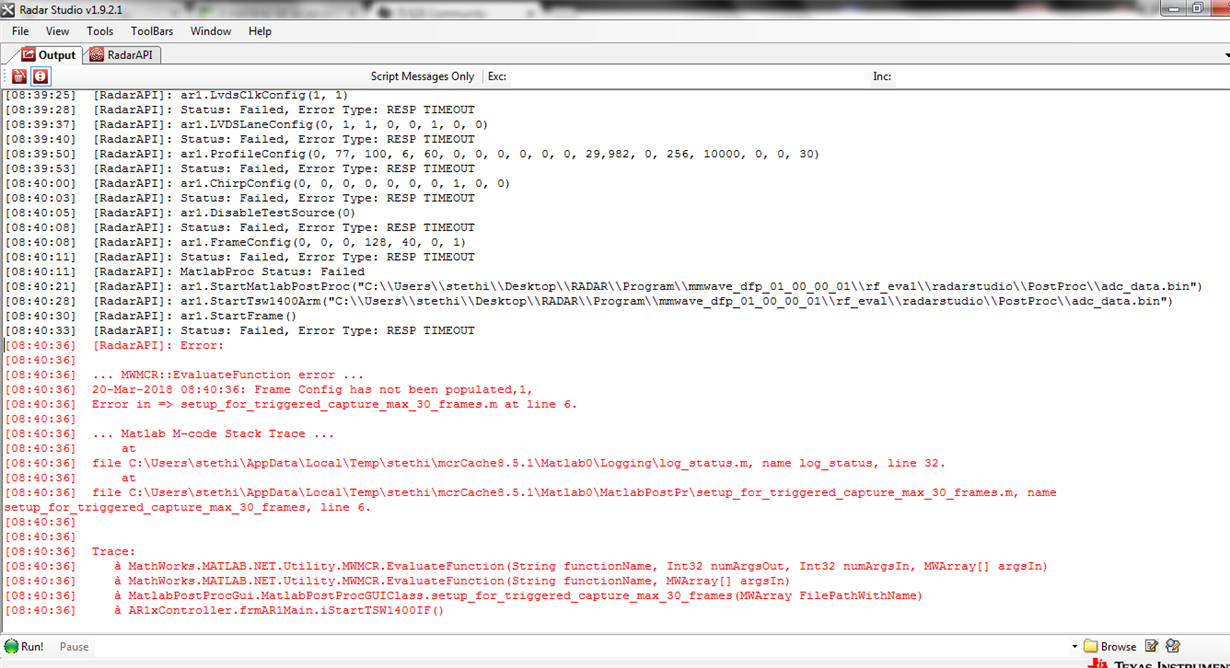

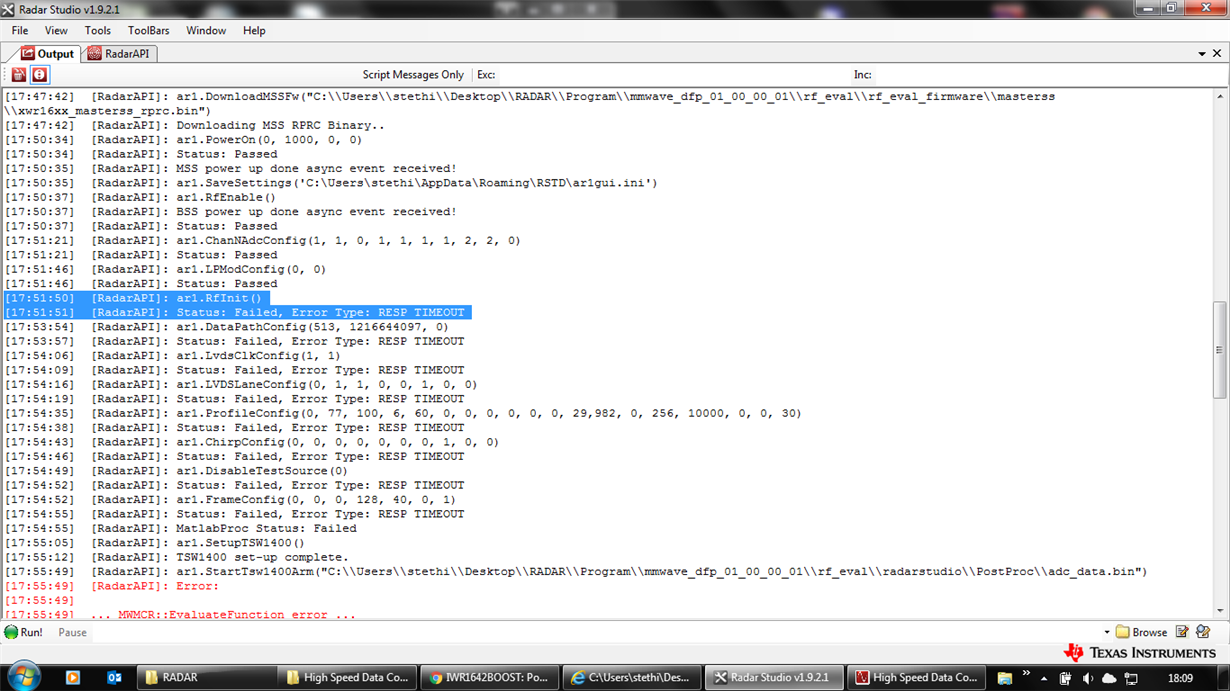

Here is the display console when I config Radar Studio :

I installed :

Matlab RunTime Engin

mmWave_dpf_01_00_00_01

FTDI Drivers

HSDC Pro

So, I have 2 questions :

What is the problem ?

What is the fonction mmWave Dev-Pack in particular ?

Thank you in advance for your assistance.

Regards,

Clément.

over 7 years ago

0 Radio-Joe over 7 years ago

TI__Mastermind 37500 points

Hello,

Depending on the mmwave programming, the LVDS outputs which are captured on the TSW1400 are then sent for post processing. There are a lot of buttons to click, on the Connection, Static Config, Data Config, and Sensor Config tabs. (a - please try to use this example, place a 12oz aluminum beverage can, full of water or soda, 3 meters to the left of the center of the EVM, 3 meters from the EVM.

Fullscreen 1642_5000_256_30_77_tx1_complex1x.xml Download

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
	<apiname_channel_cfg>
		<param name="rx0En" value="1" />
		<param name="cascadeMode" value="0" />
		<param name="tx0En" value="1" />
		<param name="rx1En" value="1" />
		<param name="tx1En" value="1" />
		<param name="rx2En" value="1" />
		<param name="tx2En" value="0" />
		<param name="rx3En" value="1" />
	</apiname_channel_cfg>
	<apiname_adc_cfg>
		<param name="bitsVal" value="2" />
		<param name="IQSwap" value="0" />
		<param name="formatVal" value="1" />
	</apiname_adc_cfg>
	<apiname_lp_cfg>
		<param name="lpAdcMode" value="0" />
	</apiname_lp_cfg>
	<apiname_freqlimit_cfg>
		<param name="freqLimitLow" value="76.0" />
		<param name="freqLimitHigh" value="81.0" />
	</apiname_freqlimit_cfg>
	<apiname_rfldobypass_cfg>
		<param name="RFLdoByPass" value="0" />
	</apiname_rfldobypass_cfg>
	<apiname_radarmisccontrol_cfg>
		<param name="PerChirpPhaseShiftEna" value="0" />
	</apiname_radarmisccontrol_cfg>
	<apiname_calmonfreqtxpowlimit_cfg>
		<param name="freqLimitLowTx1" value="76.0" />
		<param name="freqLimitHighTx2" value="81.0" />
		<param name="freqLimitLowTx0" value="76.0" />
		<param name="tx0PowerBackoff" value="0" />
		<param name="tx1PowerBackoff" value="0" />
		<param name="freqLimitHighTx0" value="81.0" />
		<param name="tx2PowerBackoff" value="0" />
		<param name="freqLimitLowTx2" value="76.0" />
		<param name="freqLimitHighTx1" value="81.0" />
	</apiname_calmonfreqtxpowlimit_cfg>
	<apiname_datapath_cfg>
		<param name="dataPathCfgPath" value="1" />
		<param name="dataCfgFmt1" value="0" />
		<param name="pkt0VChannelNo" value="0" />
		<param name="pkt1VChannelNo" value="0" />
		<param name="dataCfgFmt0" value="0" />
	</apiname_datapath_cfg>
	<apiname_clock_cfg>
		<param name="dataRate" value="1" />
		<param name="laneClock" value="1" />
	</apiname_clock_cfg>
	<apiname_lvdslane_cfg>
		<param name="lane4En" value="0" />
		<param name="lane2En" value="1" />
		<param name="lane3En" value="0" />
		<param name="lane1En" value="1" />
		<param name="lvdsPacketEndPulse" value="0" />
		<param name="lvdsCrcEn" value="0" />
		<param name="laneFormat" value="0" />
		<param name="lvdsMsbFirst" value="1" />
	</apiname_lvdslane_cfg>
	<apiname_csi2lane_cfg>
		<param name="clockPol" value="0" />
		<param name="lane2Pos" value="4" />
		<param name="lane1Pos" value="2" />
		<param name="lane0Pos" value="1" />
		<param name="lane0Pol" value="0" />
		<param name="lane1Pol" value="0" />
		<param name="lane2Pol" value="0" />
		<param name="lane3Pos" value="5" />
		<param name="lane3Pol" value="0" />
		<param name="clockPos" value="3" />
	</apiname_csi2lane_cfg>
	<apiname_testpatterngen_cfg>
		<param name="testPatternPktSize" value="0" />
		<param name="testPatternRx2QCFGStartOffset" value="0" />
		<param name="testPatternRx0ICFGStartOffset" value="0" />
		<param name="testPatternRx3QCFGVal" value="0" />
		<param name="numTestPatternPkts" value="0" />
		<param name="testPatternRx1QCFGStartOffset" value="0" />
		<param name="testPatternRx2QCFGVal" value="0" />
		<param name="testPatternGenCtl" value="0" />
		<param name="testPatternRx3QCFGStartOffset" value="0" />
		<param name="testPatternRx0QCFGVal" value="0" />
		<param name="testPatternRx0ICFGVal" value="0" />
		<param name="testPatternRx1QCFGVal" value="0" />
		<param name="testPatternRx2ICFGVal" value="0" />
		<param name="testPatternRx0QCFGStartOffset" value="0" />
		<param name="testPatternRx1ICFGStartOffset" value="0" />
		<param name="testPatternRx3ICFGStartOffset" value="0" />
		<param name="testPatternGenTime" value="0" />
		<param name="testPatternRx3ICFGVal" value="0" />
		<param name="testPatternRx2ICFGStartOffset" value="0" />
		<param name="testPatternRx1ICFGVal" value="0" />
	</apiname_testpatterngen_cfg>
	<apiname_testsource_cfg>
		<param name="obj2PosY" value="327" />
		<param name="obj1AntPosRx1X" value="0" />
		<param name="obj1AntPosRx1Z" value="0" />
		<param name="obj2Sig" value="-95" />
		<param name="obj1VelY" value="0" />
		<param name="obj2VelZ" value="0" />
		<param name="obj1PosZ" value="0" />
		<param name="obj1PosY" value="3" />
		<param name="obj2PosZ" value="0" />
		<param name="obj1BMaxZ" value="327" />
		<param name="obj1BMaxX" value="327" />
		<param name="obj1BMaxY" value="327" />
		<param name="obj1AntPosRx4Z" value="0" />
		<param name="obj1AntPosRx2Z" value="0" />
		<param name="obj1AntPosRx3Z" value="0" />
		<param name="obj1VelX" value="0" />
		<param name="obj1AntPosRx3X" value="1" />
		<param name="obj1PosX" value="4" />
		<param name="obj2BMaxZ" value="327" />
		<param name="obj2BMaxX" value="327" />
		<param name="obj2BMaxY" value="327" />
		<param name="obj1BMinZ" value="-327.6" />
		<param name="obj1BMinX" value="-327.6" />
		<param name="obj1BMinY" value="0" />
		<param name="obj1AntPosTx2X" value="0" />
		<param name="obj1AntPosTx3X" value="0" />
		<param name="obj1Sig" value="-2.5" />
		<param name="obj1AntPosTx1X" value="0" />
		<param name="obj1VelZ" value="0" />
		<param name="obj2VelX" value="0" />
		<param name="obj2BMinZ" value="-327" />
		<param name="obj2BMinX" value="-327" />
		<param name="obj2BMinY" value="0" />
		<param name="obj2PosX" value="327" />
		<param name="obj1AntPosTx2Z" value="0" />
		<param name="obj1AntPosTx3Z" value="0" />
		<param name="obj2VelY" value="0" />
		<param name="obj1AntPosTx1Z" value="0" />
		<param name="obj1AntPosRx4X" value="1.5" />
		<param name="obj1AntPosRx2X" value="0.5" />
	</apiname_testsource_cfg>
	<apiname_profile_cfg>
		<param name="rampEndTime" value="58.42" />
		<param name="adcStartTimeConst" value="6.09" />
		<param name="hpfCornerFreq1" value="0" />
		<param name="freqSlopeConst" value="50.018" />
		<param name="rxGain" value="30" />
		<param name="numAdcSamples" value="256" />
		<param name="tx1OutPowerBackoffCode" value="0" />
		<param name="tx2OutPowerBackoffCode" value="0" />
		<param name="pprofileId" value="0" />
		<param name="tx3OutPowerBackoffCode" value="0" />
		<param name="hpfCornerFreq2" value="0" />
		<param name="tx1PhaseShifter" value="0" />
		<param name="tx2PhaseShifter" value="0" />
		<param name="startFreqConst" value="77.0" />
		<param name="retainRxCalLUT" value="0" />
		<param name="vcoSelect" value="0" />
		<param name="idleTimeConst" value="5" />
		<param name="forceVCOSelect" value="0" />
		<param name="tx3PhaseShifter" value="0" />
		<param name="digOutSampleRate" value="5000" />
		<param name="retainTxCalLUT" value="0" />
		<param name="txStartTime" value="1" />
		<param name="rfGainTarget" value="0" />
	</apiname_profile_cfg>
	<apiname_chirp_cfg>
		<param name="startFreqVar" value="0" />
		<param name="cprofileId" value="0" />
		<param name="tx2Enable" value="0" />
		<param name="tx3Enable" value="0" />
		<param name="idleTimeVar" value="0" />
		<param name="tx1Enable" value="1" />
		<param name="freqSlopeVar" value="0" />
		<param name="adcStartTimeVar" value="0" />
		<param name="chirpEndIdx" value="0" />
		<param name="chirpStartIdx" value="0" />
	</apiname_chirp_cfg>
	<apiname_frame_cfg>
		<param name="frameCount" value="10" />
		<param name="testSourceEn" value="0" />
		<param name="triggerSelect" value="0" />
		<param name="periodicity" value="40" />
		<param name="triggerDelay" value="0" />
		<param name="loopCount" value="128" />
		<param name="fchirpStartIdx" value="0" />
		<param name="fchirpEndIdx" value="0" />
	</apiname_frame_cfg>
	<apiname_advanceframe_cfg>
		<param name="numOfSubFrames" value="1" />
		<param name="sb3noOfAdcSamples" value="1" />
		<param name="sb4subFramePeriod" value="40" />
		<param name="sb2brustPeriodicity" value="40" />
		<param name="sb2numOfLoops" value="128" />
		<param name="sb4numOfLoops" value="128" />
		<param name="loopBackCfg" value="0" />
		<param name="sb4numOfBrust" value="1" />
		<param name="sb1subFramePeriod" value="40" />
		<param name="numOfFrames" value="0" />
		<param name="sb3numOfBrustLoops" value="1" />
		<param name="sb3chirpStartIdx" value="0" />
		<param name="sb1chirpStartIdx" value="0" />
		<param name="sb2chirpStartIdx" value="0" />
		<param name="sb3brustPeriodicity" value="40" />
		<param name="sb3chirpStartIdxOffset" value="0" />
		<param name="sb2noOfAdcSamples" value="1" />
		<param name="sb4noOfAdcSamples" value="1" />
		<param name="sb1numOfChirps" value="1" />
		<param name="sb4chirpStartIdx" value="0" />
		<param name="sb2numOfBrustLoops" value="1" />
		<param name="sb1chirpStartIdxOffset" value="0" />
		<param name="sb2chirpStartIdxOffset" value="0" />
		<param name="hardwareTrigger" value="0" />
		<param name="sb4numOfBrustLoops" value="1" />
		<param name="sb3numOfBrust" value="1" />
		<param name="sb3subFramePeriod" value="40" />
		<param name="softwareTrigger" value="1" />
		<param name="sb1numOfBrust" value="1" />
		<param name="sb1numOfBrustLoops" value="1" />
		<param name="sb4forceProfileIdx" value="0" />
		<param name="sb1brustPeriodicity" value="40" />
		<param name="sb3numOfLoops" value="128" />
		<param name="sb3numOfChirps" value="1" />
		<param name="sb1forceProfileIdx" value="0" />
		<param name="frameTriggerDelay" value="0" />
		<param name="sb2numOfChirps" value="1" />
		<param name="sb2numOfBrust" value="1" />
		<param name="sb2forceProfileIdx" value="0" />
		<param name="sb2subFramePeriod" value="40" />
		<param name="testSourceEn" value="0" />
		<param name="forceProfileEna" value="0" />
		<param name="sb4brustPeriodicity" value="40" />
		<param name="sb1noOfAdcSamples" value="1" />
		<param name="sb4numOfChirps" value="1" />
		<param name="sb3forceProfileIdx" value="0" />
		<param name="sb1numOfLoops" value="128" />
		<param name="loopBackCfgSubFrameID" value="3" />
		<param name="sb4chirpStartIdxOffset" value="0" />
	</apiname_advanceframe_cfg>
	<apiname_loopbackburst_cfg>
		<param name="digCorrRxGainPhase" value="0" />
		<param name="iflLoopBackMag" value="2" />
		<param name="rfGainTarget" value="0" />
		<param name="psTx1LoopBackFreq" value="0" />
		<param name="tx2En" value="0" />
		<param name="digitalCorrDisable" value="0" />
		<param name="tx2BackOff" value="0" />
		<param name="bpmTx0On" value="0" />
		<param name="bpmTx2Off" value="0" />
		<param name="loopBackSelect" value="0" />
		<param name="baseProfileIndex" value="0" />
		<param name="ifLoopBackFreq" value="0" />
		<param name="bpmTx1On" value="0" />
		<param name="paLoopBackFreq" value="2" />
		<param name="bpmTx2On" value="0" />
		<param name="tx0En" value="0" />
		<param name="tx1En" value="0" />
		<param name="psTx0LoopBackFreq" value="0" />
		<param name="freqConst" value="77" />
		<param name="busrtIndex" value="0" />
		<param name="ps1PGAGainIndex" value="23" />
		<param name="tx0BackOff" value="0" />
		<param name="rxGain" value="30" />
		<param name="ps2PGAGainIndex" value="23" />
		<param name="bpmTx0Off" value="0" />
		<param name="slopeConst" value="0" />
		<param name="bpmTx1Off" value="0" />
		<param name="tx1BackOff" value="0" />
	</apiname_loopbackburst_cfg>
	<apiname_analogmonenable_cfg>
		<param name="tx2BallBreakMonEna" value="0" />
		<param name="rxNoiseMonEna" value="0" />
		<param name="rxIFStageMonEna" value="0" />
		<param name="reservedMonEna" value="0" />
		<param name="tx0BPMMonEna" value="0" />
		<param name="rxIFASaturationMonEna" value="0" />
		<param name="internalGPADCSignalsMonEna" value="0" />
		<param name="tx0BallBreakMonEna" value="0" />
		<param name="internalTX0SignalsMonEna" value="0" />
		<param name="rxGainPhaseMonEna" value="0" />
		<param name="internalTX1SignalsMonEna" value="0" />
		<param name="internalRXSignalsMonEna" value="0" />
		<param name="tx1PowerMonEna" value="0" />
		<param name="rxSigImgBandMonEna" value="0" />
		<param name="temperatureMonEna" value="0" />
		<param name="internalTX2SignalsMonEna" value="0" />
		<param name="txGainPhaseMonEna" value="0" />
		<param name="synthFreqMonEna" value="0" />
		<param name="tx1BPMMonEna" value="0" />
		<param name="tx2BPMMonEna" value="0" />
		<param name="pllControlVolMonEna" value="0" />
		<param name="tx0PowerMonEna" value="0" />
		<param name="externalAnalogSignalsMonEna" value="0" />
		<param name="tx2PowerMonEna" value="0" />
		<param name="tx1BallBreakMonEna" value="0" />
		<param name="rxMixerInputPowerMonEna" value="0" />
		<param name="dccClockFreqMonEna" value="0" />
		<param name="internalPMCLKLOSignalsMonEna" value="0" />
	</apiname_analogmonenable_cfg>
	<apiname_tx0ballbreak_cfg>
		<param name="tx0ReflCoeffMagThreshold" value="90" />
		<param name="tx0BallBreakMonReportingMode" value="0" />
	</apiname_tx0ballbreak_cfg>
	<apiname_tx1ballbreak_cfg>
		<param name="tx1BallBreakMonReportingMode" value="0" />
		<param name="tx1ReflCoeffMagThreshold" value="90" />
	</apiname_tx1ballbreak_cfg>
	<apiname_tx2ballbreak_cfg>
		<param name="tx2BallBreakMonReportingMode" value="0" />
		<param name="tx2ReflCoeffMagThreshold" value="90" />
	</apiname_tx2ballbreak_cfg>
	<apiname_tx0powermon_cfg>
		<param name="tx0PowerReportingMode" value="0" />
		<param name="tx0PwAbsErrThreshold" value="1" />
		<param name="tx0PowerRF3" value="1" />
		<param name="tx0PwFlatnessThreshold" value="0" />
		<param name="tx0PwrMonProfileIndex" value="0" />
		<param name="tx0PowerRF1" value="1" />
		<param name="tx0PowerRF2" value="1" />
	</apiname_tx0powermon_cfg>
	<apiname_tx1powermon_cfg>
		<param name="tx1PowerReportingMode" value="0" />
		<param name="tx1PwrMonProfileIndex" value="0" />
		<param name="tx1PwFlatnessThreshold" value="0" />
		<param name="tx1PowerRF1" value="1" />
		<param name="tx1PowerRF2" value="1" />
		<param name="tx1PwAbsErrThreshold" value="1" />
		<param name="tx1PowerRF3" value="1" />
	</apiname_tx1powermon_cfg>
	<apiname_tx2powermon_cfg>
		<param name="tx2PwFlatnessThreshold" value="0" />
		<param name="tx2PwAbsErrThreshold" value="1" />
		<param name="tx2PowerRF3" value="1" />
		<param name="tx2PwrMonProfileIndex" value="0" />
		<param name="tx2PowerRF2" value="1" />
		<param name="tx2PowerReportingMode" value="0" />
		<param name="tx2PowerRF1" value="1" />
	</apiname_tx2powermon_cfg>
	<apiname_tx0bpmmon_cfg>
		<param name="tx0BPMPhaseMonErrorThreshold" value="0" />
		<param name="tx0BPMPhaseMonReportMode" value="0" />
		<param name="tx0BPMMonRx2" value="1" />
		<param name="tx0BPMMonRx0" value="1" />
		<param name="tx0BPMAmplitudeMonErrorThreshold" value="0" />
		<param name="tx0BPMMonRx1" value="1" />
		<param name="tx0BPMPhaseMonProfileIndex" value="0" />
		<param name="tx0BPMMonRx3" value="1" />
	</apiname_tx0bpmmon_cfg>
	<apiname_tx1bpmmon_cfg>
		<param name="tx1BPMMonRx3" value="1" />
		<param name="tx1BPMMonRx1" value="1" />
		<param name="tx1BPMPhaseMonProfileIndex" value="0" />
		<param name="tx1BPMAmplitudeMonErrorThreshold" value="0" />
		<param name="tx1BPMPhaseMonReportMode" value="0" />
		<param name="tx1BPMMonRx2" value="1" />
		<param name="tx1BPMMonRx0" value="1" />
		<param name="tx1BPMPhaseMonErrorThreshold" value="0" />
	</apiname_tx1bpmmon_cfg>
	<apiname_tx2bpmmon_cfg>
		<param name="tx2BPMPhaseMonErrorThreshold" value="0" />
		<param name="tx2BPMPhaseMonReportMode" value="0" />
		<param name="tx2BPMMonRx1" value="1" />
		<param name="tx2BPMPhaseMonProfileIndex" value="0" />
		<param name="tx2BPMMonRx3" value="1" />
		<param name="tx2BPMMonRx2" value="1" />
		<param name="tx2BPMMonRx0" value="1" />
		<param name="tx2BPMAmplitudeMonErrorThreshold" value="0" />
	</apiname_tx2bpmmon_cfg>
	<apiname_txgainphasemismatchmon_cfg>
		<param name="rf3TX2TXGainPhaseMismatchOffVal" value="0" />
		<param name="txGainPhaseMismatchMonRx3" value="1" />
		<param name="txGainPhaseMismatchMonRx2" value="1" />
		<param name="txGainPhaseMismatchMonRx1" value="1" />
		<param name="txGainPhaseMismatchMonRx0" value="1" />
		<param name="rf3TX2TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TX2TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf1TX1TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf2TX2TXPhaseMismatchOffVal" value="0" />
		<param name="rf1TX2TXPhaseMismatchOffVal" value="0" />
		<param name="txGainPhaseMismacthMonTxPhaseMismatchThreshold" value="0" />
		<param name="txGainPhaseMismacthMonReportingMode" value="0" />
		<param name="rf1TX0TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TXGainPhaseMismatchMonBitMask" value="1" />
		<param name="rf3TX0TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf1TX1TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TX0TXGainPhaseMismatchOffVal" value="0" />
		<param name="txGainPhaseMismacthMonProfileIndex" value="0" />
		<param name="rf3TXGainPhaseMismatchMonBitMask" value="1" />
		<param name="rf3TX1TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf3TX1TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TX1TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TX1TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf1TX2TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf3TX0TXPhaseMismatchOffVal" value="0" />
		<param name="rf1TXGainPhaseMismatchMonBitMask" value="1" />
		<param name="rf2TX0TXPhaseMismatchOffVal" value="0" />
		<param name="txGainPhaseMismacthMonTxGainMismatchThreshold" value="0" />
		<param name="tx1GainPhaseMismatchMon" value="1" />
		<param name="tx0GainPhaseMismatchMon" value="1" />
		<param name="tx2GainPhaseMismatchMon" value="0" />
		<param name="rf1TX0TXGainPhaseMismatchOffVal" value="0" />
	</apiname_txgainphasemismatchmon_cfg>
	<apiname_analogfaultinjection_cfg>
		<param name="rxIFStageRx2" value="0" />
		<param name="txGainInvTx2BPMVal" value="0" />
		<param name="rxLOAmpRx2Rx3" value="0" />
		<param name="txGainInvTx1BPMVal" value="0" />
		<param name="rxHighNoiseRx2" value="0" />
		<param name="rxHighNoiseRx1" value="0" />
		<param name="gpadcClkFreqFault" value="0" />
		<param name="ldoRxLODistFault" value="0" />
		<param name="txLOAmpTx2" value="0" />
		<param name="rxGainDropRx3" value="0" />
		<param name="rxPhaseInvRx2" value="0" />
		<param name="rxGainDropRx1" value="0" />
		<param name="rxGainDropRx0" value="0" />
		<param name="rxHighNoiseRx3" value="0" />
		<param name="gpadcIntSigMon" value="0" />
		<param name="txGainInvTxFault" value="0" />
		<param name="txLOAmpTx0Tx1" value="0" />
		<param name="txGainInvTx0BPMVal" value="0" />
		<param name="txGainDropTx1" value="0" />
		<param name="txGainDropTx0" value="0" />
		<param name="rxIFStageRx1" value="0" />
		<param name="txGainDropTx2" value="0" />
		<param name="rxGainDropRx2" value="0" />
		<param name="rxIFStageRx3" value="0" />
		<param name="rxLOAmpRx0Rx1" value="0" />
		<param name="synthFreqMonOffset" value="0" />
		<param name="rxHighNoiseRx0" value="0" />
		<param name="rxIFStageRx0" value="0" />
		<param name="synthVCOOpenLoop" value="0" />
		<param name="extAnaSigMon" value="0" />
		<param name="rxPhaseInvRx1" value="0" />
		<param name="rxPhaseInvRx0" value="0" />
		<param name="rxPhaseInvRx3" value="0" />
	</apiname_analogfaultinjection_cfg>
	<apiname_rxgainphasemon_cfg>
		<param name="rf3RX0RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX1RXPhaseMismatchOffVal" value="0" />
		<param name="rf1RX3RXGainMismatchOffVal" value="0" />
		<param name="rf3RX2RXGainMismatchOffVal" value="0" />
		<param name="rf2RX1RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX3RXPhaseMismatchOffVal" value="0" />
		<param name="rf2RX3RXGainMismatchOffVal" value="0" />
		<param name="rxGainPhaseReprotingMode" value="0" />
		<param name="rxPhaseMismatchThreshold" value="0" />
		<param name="rf1RX2RXPhaseMismatchOffVal" value="0" />
		<param name="rf2RX1RXGainMismatchOffVal" value="0" />
		<param name="rf1RX1RXGainMismatchOffVal" value="0" />
		<param name="rf2RX2RXPhaseMismatchOffVal" value="0" />
		<param name="rf2RX3RXPhaseMismatchOffVal" value="0" />
		<param name="rf2RX2RXGainMismatchOffVal" value="0" />
		<param name="rf2RX0RXGainMismatchOffVal" value="0" />
		<param name="rf2RXGainPhaseMonBitMask" value="1" />
		<param name="rf1RX0RXGainMismatchOffVal" value="0" />
		<param name="rf1RXGainPhaseMonBitMask" value="1" />
		<param name="rxGainFlatnessErrThreshold" value="0" />
		<param name="rxGainMismatchThresholds" value="0" />
		<param name="rf1RX0RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX2RXPhaseMismatchOffVal" value="0" />
		<param name="rf1RX2RXGainMismatchOffVal" value="0" />
		<param name="rf1RX1RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX3RXGainMismatchOffVal" value="0" />
		<param name="rf2RX0RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX1RXGainMismatchOffVal" value="0" />
		<param name="rxGainPhaseMonTxSelect" value="0" />
		<param name="rxGainPhaseMonProfileIndex" value="0" />
		<param name="rf3RX0RXGainMismatchOffVal" value="0" />
		<param name="rxGainPhaseAbsErrThreshold" value="0" />
		<param name="rf3RXGainPhaseMonBitMask" value="1" />
		<param name="rf1RX3RXPhaseMismatchOffVal" value="0" />
	</apiname_rxgainphasemon_cfg>
	<apiname_rxnoisefiguremon_cfg>
		<param name="rf1RXNoiseMon" value="1" />
		<param name="rxNoiseFigureThreshold" value="0" />
		<param name="rf3RXNoiseMon" value="1" />
		<param name="rf2RXNoiseMon" value="1" />
		<param name="rxNoiseFigureReportingMode" value="0" />
		<param name="rxNoiseMonProfileIndex" value="0" />
	</apiname_rxnoisefiguremon_cfg>
	<apiname_rxifstagemon_cfg>
		<param name="rxIFStageReportingMode" value="0" />
		<param name="rxIFStageMonProfileIndex" value="0" />
		<param name="rxIFStageLPFCuttoffFreqErrThreshold" value="0" />
		<param name="rxIFStageHPFCuttoffFreqErrThreshold" value="0" />
		<param name="rxIFStageIFAGainErrThreshold" value="0" />
	</apiname_rxifstagemon_cfg>
	<apiname_rxsaturationdetectormon_cfg>
		<param name="rxSatDetectorMonSatMonNumSlice" value="63" />
		<param name="rxSatDetectorSatMonSelect" value="2" />
		<param name="rxSatDetectorMonSatMonRxChannelMask" value="0" />
		<param name="rxSatDetectorMonPriTimeSliceDuration" value="0.8" />
		<param name="rxSatDetectorMonProfileIndex" value="0" />
	</apiname_rxsaturationdetectormon_cfg>
	<apiname_rxsignalandimagemon_cfg>
		<param name="sigImgMonNumSlice" value="63" />
		<param name="sigImgMonPriTimeSliceNumSamples" value="8" />
		<param name="sigImgMonProfileIndex" value="0" />
	</apiname_rxsignalandimagemon_cfg>
	<apiname_rxmixerinputpowermon_cfg>
		<param name="rxMixerIpPowMonMinThresholds" value="0" />
		<param name="rxMixerIpPowMonProfielIdnex" value="0" />
		<param name="rxMixerIpPowMonMaxThresholds" value="0" />
		<param name="rxMixerIpPowMonReportingMode" value="0" />
		<param name="rxMixerIpPowMonTx2Ena" value="0" />
		<param name="rxMixerIpPowMonTx0Ena" value="0" />
		<param name="rxMixerIpPowMonTx1Ena" value="0" />
	</apiname_rxmixerinputpowermon_cfg>
	<apiname_rxtemperaturemon_cfg>
		<param name="tempMonDigTempThreshMax" value="0" />
		<param name="tempMonTempDiffThresh" value="0" />
		<param name="tempMonDigTempThreshMin" value="0" />
		<param name="tempMonReportingMode" value="0" />
		<param name="tempMonAnaTempThreshMax" value="0" />
		<param name="tempMonAnaTempThreshMin" value="0" />
	</apiname_rxtemperaturemon_cfg>
	<apiname_rxsynthfreqerrormon_cfg>
		<param name="synthFrequencyMonStartTime" value="2.0" />
		<param name="synthFrequencyMonReportingMode" value="0" />
		<param name="synthFrequencyProfileIndex" value="0" />
		<param name="synthFrequencyMonFreqErrorThreshold" value="4000" />
	</apiname_rxsynthfreqerrormon_cfg>
	<apiname_rxextanalogsignalmon_cfg>
		<param name="extAnalogSigMonSigSettlingTimeAnaTest4" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaTest4" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaTest3" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaTest2" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaTest4" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaTest1" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaVSense" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaTest2" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaVSense" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaVSense" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaTest2" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaTest3" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaMux" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaMux" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaTest4" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaTest2" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaTest1" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaMux" value="0" />
		<param name="extAnalogSigMonReportingMode" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaTest4" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaTest3" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaMux" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaTest3" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaTest1" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaTest3" value="0" />
		<param name="extAnalogSigMonSigIPEnaVSense" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaMux" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaTest1" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaTest2" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaTest1" value="0" />
	</apiname_rxextanalogsignalmon_cfg>
	<apiname_tx0intanalogsignalmon_cfg>
		<param name="tx0IntAnalogSigMonReportingMode" value="0" />
		<param name="tx0IntAnalogSigMonProfileIndex" value="0" />
	</apiname_tx0intanalogsignalmon_cfg>
	<apiname_tx1intanalogsignalmon_cfg>
		<param name="tx1IntAnalogSigMonReportingMode" value="0" />
		<param name="tx1IntAnalogSigMonProfileIndex" value="0" />
	</apiname_tx1intanalogsignalmon_cfg>
	<apiname_tx2intanalogsignalmon_cfg>
		<param name="tx2IntAnalogSigMonReportingMode" value="0" />
		<param name="tx2IntAnalogSigMonProfileIndex" value="0" />
	</apiname_tx2intanalogsignalmon_cfg>
	<apiname_rxintanalogsignalmon_cfg>
		<param name="rxIntAnalogSigMonProfileIndex" value="0" />
		<param name="rxIntAnalogSigMonReportingMode" value="0" />
	</apiname_rxintanalogsignalmon_cfg>
	<apiname_pmclklointanalogsignalmon_cfg>
		<param name="pmCLKLOIntAnalogSigMonReportingMode" value="0" />
		<param name="pmCLKLOIntAnalogSigMonProfileIndex" value="0" />
	</apiname_pmclklointanalogsignalmon_cfg>
	<apiname_gpadcintanalogsignalmon_cfg>
		<param name="gpadcIntAnalogSigMonReportingMode" value="0" />
	</apiname_gpadcintanalogsignalmon_cfg>
	<apiname_pllcontrolvoltagemon_cfg>
		<param name="pllCtlVolMonSynthVCO2VolControl" value="0" />
		<param name="pllCtlVolMonReportingMode" value="0" />
		<param name="pllCtlVolMonSynthVCO1VolControl" value="0" />
		<param name="pllCtlVolMonAPLLVctl" value="0" />
	</apiname_pllcontrolvoltagemon_cfg>
	<apiname_dccmon_cfg>
		<param name="dccMonClockPair4" value="0" />
		<param name="dccMonClockPair0" value="0" />
		<param name="dccMonClockPair5" value="0" />
		<param name="dccMonReportingMode" value="0" />
		<param name="dccMonClockPair1" value="0" />
		<param name="dccMonClockPair3" value="0" />
		<param name="dccMonClockPair2" value="0" />
	</apiname_dccmon_cfg>
</configuration>

Please use the attached Config, scroll to the left of the display, and Load this config file. as you perform each step, check the Output box for errors

Note: the BSS and MSS file linkage is not included in this configuration (you must link to your dfp installation - follow the dfp user guide..

Connection - Board Control - Mode 2 - Set

Connection - Board Control - RS232 Operations, set com port, Connect

Connection - Files - Select BSS FW, load file

Connection - Files - Select MSS FW, load file

Connection - SPI Operations SPI Connect

Connection - SPI Operations RF Power Up

Static Config - Static Configuration - Basic Configuration Set

Static Config - Static Configuration - LP Mode Set

Static Config - Static Configuration - RF Init

Data Config - Data Configuration - Data Path Configuration - Set

Data Config - Data Configuration - Clock Configuration - Set

Data Config - Data Configuration - under LVDS Lane Configuration / CSI2 Lane Configuration - Set

Sensor Config - Sensor Configuration - Profile - Set

Sensor Config - Sensor Configuration - Chirp - Set

Sensor Config - Sensor Configuration - Frame - Set

(left side) Setup TSW1400

(the next two need to be done within one second of each other)

Sensor Config - Sensor Configuration - TSW1400 ARM

Sensor Config - Sensor Configuration - Trigger Frame

note: the TSW1400 should have some blinking LEDs, then after the data collection is complete

Sensor Config - Sensor Configuration - Post Proc

We will start with a known configuration, this works for me.

The Devpack allows the BP/LP control of the mmwave EVM. Please see the EVM schematic page 10.

SOP control, MCU_nRST, Control UART flashing if used, SPI command interface.

The Devpack with the blue cable to the mmwave EVM, transfers the LVDS data to the TSW1400.

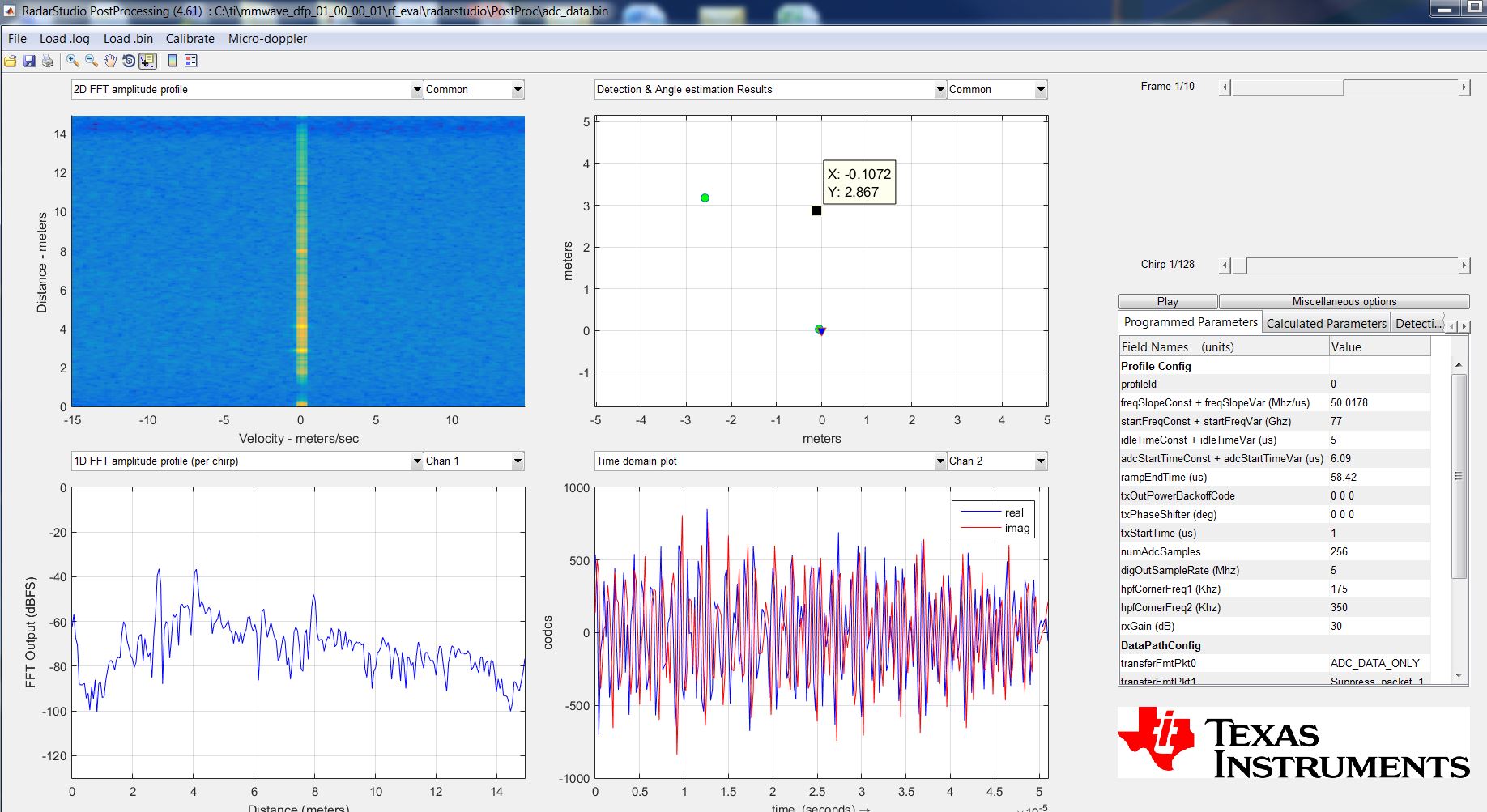

In my example I have a radar target, 3 meters to the left of the center, 3 meters from the radar sensor.

0 Clem over 7 years ago in reply to Radio-Joe

Prodigy 120 points

Hi Radio-Joe,

Thank for your quick reply.

I don't have the TSW1400 device. Can I used Post Processing ?

I followed your configuration but it's not work...

0 Clem over 7 years ago in reply to Clem

Prodigy 120 points

When I click on "RfInit", there are a lot of errors :

0 Radio-Joe over 7 years ago in reply to Clem

TI__Mastermind 37500 points

Hello,
In the radar studio, you can use the EVM and Devpack for configuration.
However to evaluate the Radar Rx for Post Processing, you also need the TSW1400.

Only needs the EVM and software:
Alternately, you can use the mmwave SDK, data capture demo, to collect the Radar Rx data.
Alternately, you can use the mmwave SDK, demo, and the PC-Visualizer to see the detected objects and other displays.

Regards,
Joe Quintal

0 Clem over 7 years ago in reply to Radio-Joe

Prodigy 120 points

Hi Joe,

Thanks for your reply.

Regards,
Clément.

Sensors

Sensors forum

IWR1642BOOST: Post Processing display "No frame config information"
