AWR1642BOOST: Visualize the Short Range Radar lab data.

Rahul Kumar85

Part Number: AWR1642BOOST

as i'm using AWR1642BOOST EVM, while using the demo in mmwave_automotive_toolbox_2_0_0 for the short range radar, i'm not able to use the gui provided. It's throwing error with opening the ports. Is thre any other alternate way i can visualize this data coming?

help ASAP.

Thanks

Regards

over 7 years ago

0 Cesar over 7 years ago

TI__Guru*** 149044 points

Hi,

Please let us know which operating system you are using on your PC.

Would you be able to re-build the gui using the matlab source files?

Thank you
Cesar

0 Rahul Kumar85 over 7 years ago in reply to Cesar

Intellectual 890 points

i'm using windows 10. Using a Matlab version 2017b. I trieed to rebuild the package using the '.prj. file but still the gui isn't working and throwing up the same error with opening the ports.
Can you please guide me to the steps how to re-build the gui, if i have gone wrong somewhere?

Thanks

0 Cesar over 7 years ago in reply to Rahul Kumar85

TI__Guru*** 149044 points

Hi,

Would it be possible to try this on a Windows 7 PC? I am curious if the behavior is different

thank you
Cesar

0 Rahul Kumar85 over 7 years ago in reply to Cesar

Intellectual 890 points

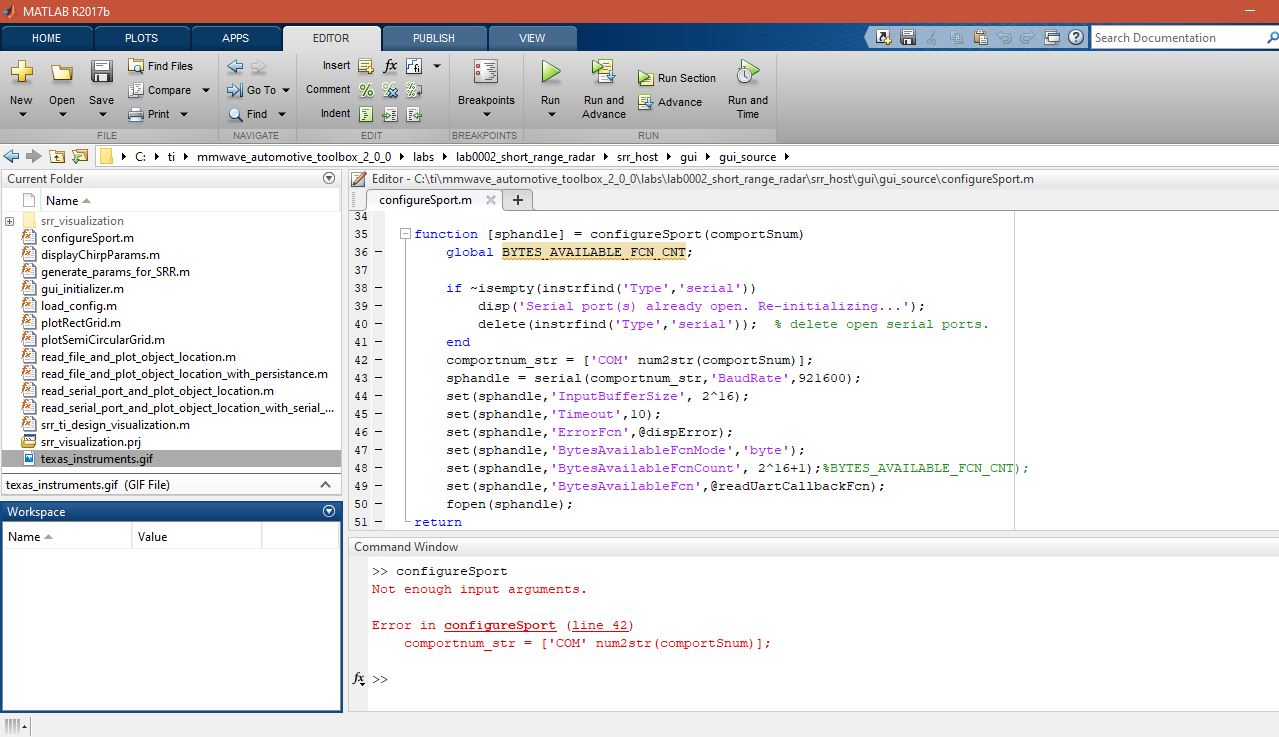

I'm constantly getting this error while i run this 'confgureSport.m' file. i think some files are missing for this package. can you please check. As i'm not able too find where the "comportSnum " variable is declared.

0 db_woodall over 7 years ago in reply to Rahul Kumar85

TI__Mastermind 21025 points

What version of mmWave SDK are you using? The SDK 2.0 port of the SRR demo has not yet been placed in the toolbox. So you need to be using SDK 1.2 with an ES1 version of the chip.

0 Rahul Kumar85 over 7 years ago in reply to db_woodall

Intellectual 890 points

This lab is in automotive toolbox 2.0 and yes i'm using sdk 1.2 only. I didn't get what you mean by "The SDK 2.0 port of the SRR demo has not yet been placed in the toolbox."

0 db_woodall over 7 years ago in reply to Rahul Kumar85

TI__Mastermind 21025 points

By "SDK 2.0 port" I meant that the version of the SRR demo in the 2.0 toolbox is still applicable to SDK 1.2. I think the problem is that you are trying to run the wrong Matlab file. A much easier way to run the GUI is shown in the developer's guide. See the third bullet on page 4 (Step 3: Run the Lab). It shows how to start the pre-built GUI via a DOS command window.
