AWR1642: AR1xxx Image Creator User Guide Clarifications

Barend Ungrodt
Intellectual 1420 points
Other Parts Discussed in Thread: AWR1642

art Number: AWR1642

Hi AWR Team,

I have some clarifications from the AR1xxx Image Creator User Guide that I am hoping you can assist with.

  1. In image #1 below (Image Creator User Guide page #3) the RPRC header shows 2 entry points addresses. I assume this should be a single 4 byte address. I also assume that each block is a 4 byte value. Correct?
  2. In image #2 below: What is the Device ID? What is included in the CRC calculation? Does the meta image size include the header? Is the "Image File Present" a binary (Yes/No) value?
  3. In image #3 below what is the "Shared Memory Alloc" value?

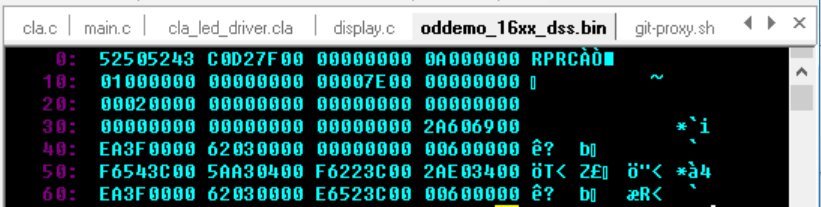

Image #1:

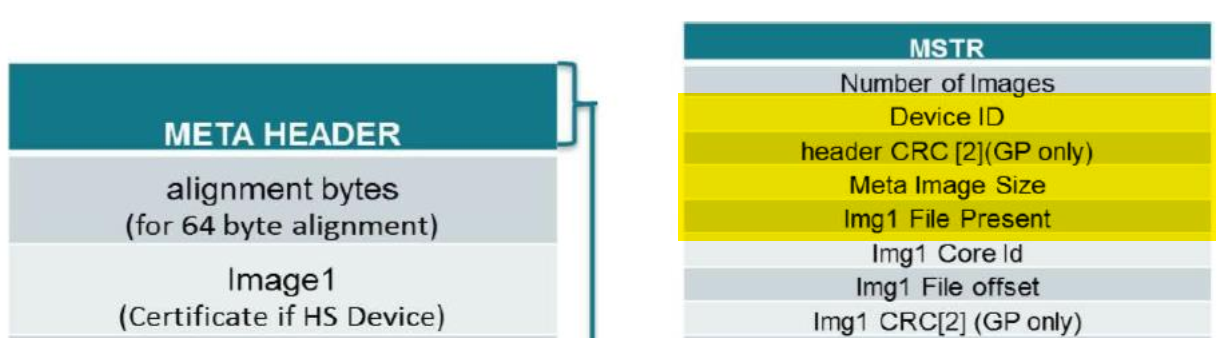

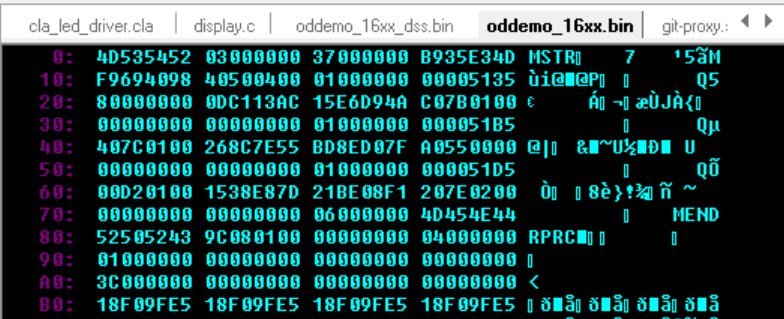

Image #2:

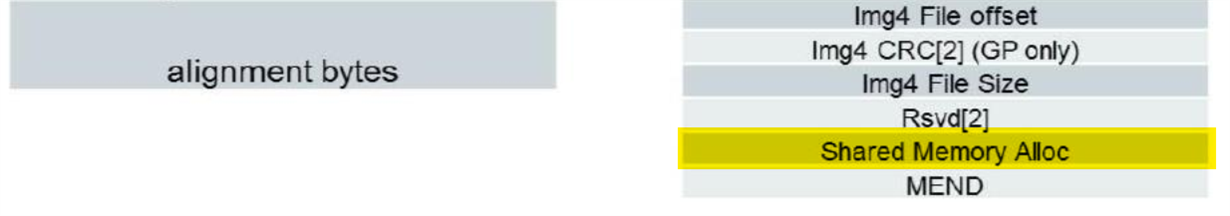

Image #3


Thanks & Regards,
Barend
