DCA1000EVM: Issue in connecting DCA1000EVM and AWR1243 BOOST

Part Number: DCA1000EVM
Other Parts Discussed in Thread: AWR1243

Hi,

We have  connected AWR1243 and DCA1000 EVM. We are following the  DCA1000EVM Data Capture Card User's Guide.

Our SW2 pin configurations are:

sw2.1 ==> pin1(LVDS capture)
sw2.2 ==> pin 15 (Ethernet stream)
sw2.3 ==> pin 3 1243 mode
sw2.4 ==> pin4  RAW MODE
sw2.5 ==> pin12 SW_Config
sw2.6 ==> pin 11 (Using FPGA configuration)
sw2.7 ==> pin 10 (GND)

SOP jumpers on AWR1243 are:

SOP0, SOP1 are closed and SOP2 is open.

Connected two power supplies,

We have configured the chirp, frame configurations and trying to dump raw data using trigger.

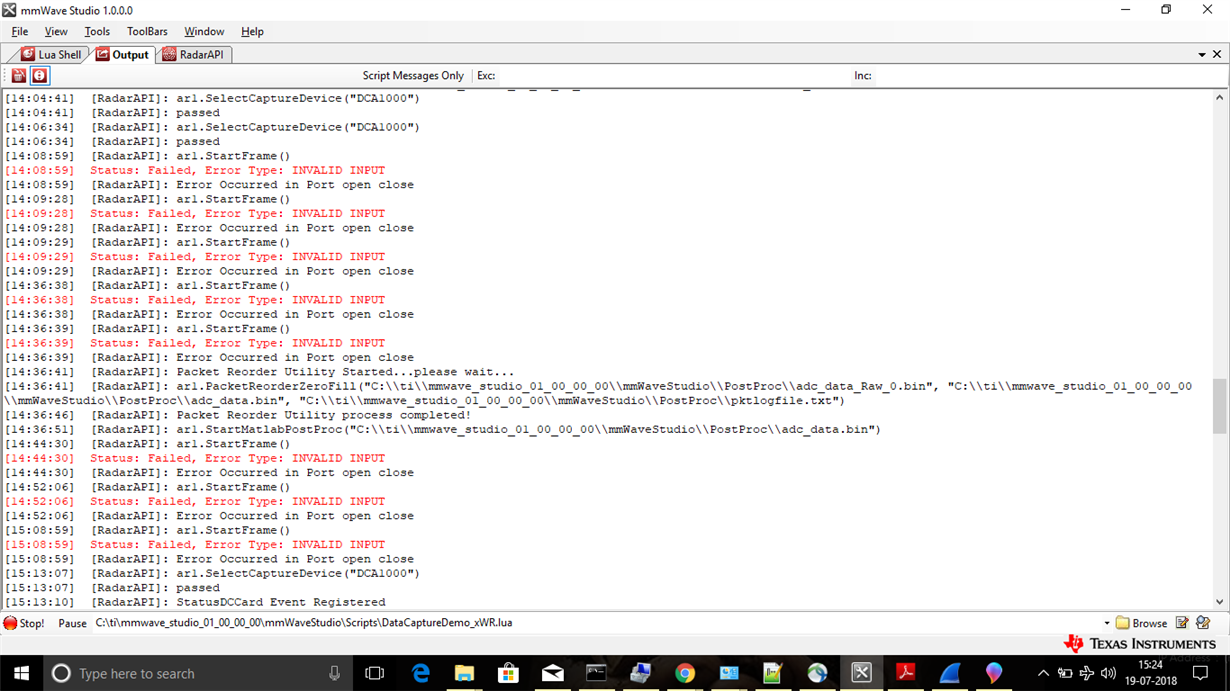

We are getting "No frame Configuration Information"  error and following is the screenshot of the log:

Following screenshots are our configurations:

Untitled_Message (1).zip

Kindly help me solve the error.

Regards,

Varsha
