AWR1243: Timing required is different in mmwave sensing estimator and Radar Studio

Wesley He

Expert 6205 points

Part Number: AWR1243

Hi team,

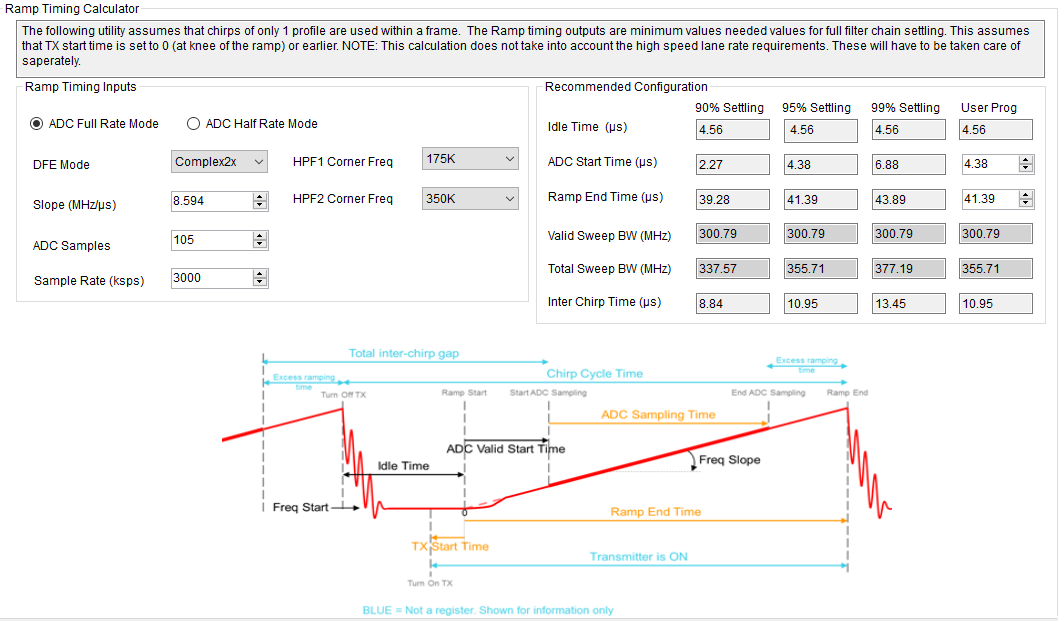

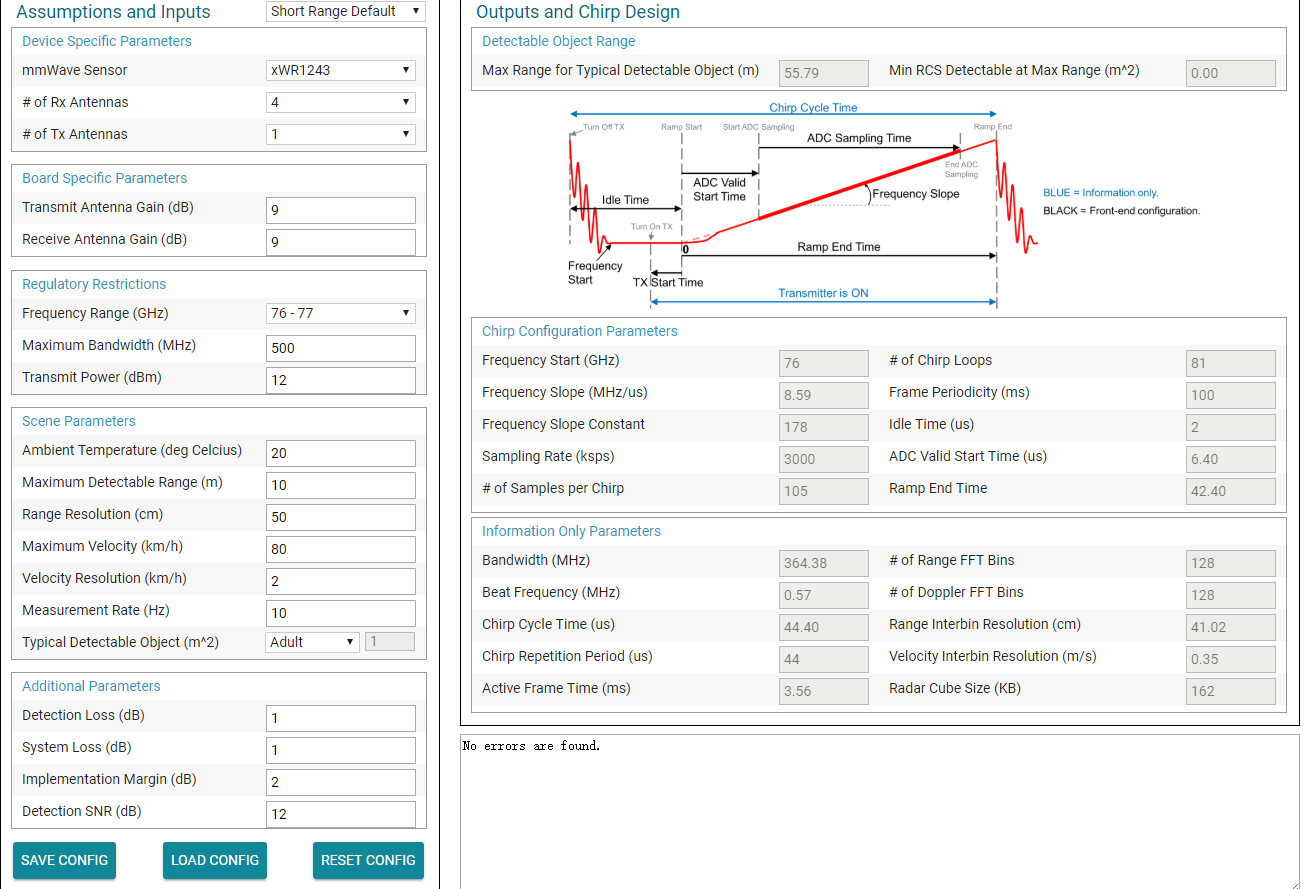

Why the mmwave sensing estimator give the chirp timing value is different to Radar studio?

If these 2 timing value is different, which one can be trust?

And what's the meaning of 90%, 99% settle time.

Thanks.

Regards,

Wesley

over 7 years ago

0 Anand Gadiyar over 7 years ago

TI__Genius 15005 points

Hi Wesley,

The Sensing Estimator is more of a guideline and for now RadarStudio should be more trust worthy. We will work to sync up these results.

The 90, 95 and 99% settling terms mainly refer to the time needed for the step response of the filter chain to settle to 90/95/99% of the target value. This impacts the ADC start time and therefore the other parameters.

Best Regards,
Anand

0 Wesley He over 7 years ago in reply to Anand Gadiyar

TI__Expert 6205 points

Hi Anand,

Thanks for your reply.
Could you please give more details for this 90, 95 and 99% settling?
For regular use, which one is prefer? Which one is most risky?

Regards,
Wesley

0 Anand Gadiyar over 7 years ago in reply to Wesley He

TI__Genius 15005 points

Wesley,

The time needed for the step response of the chain to settle at 99% is higher than for 90%.

The 99% settling is the least risky as you provide more time for settling.

Best Regards,
Anand

0 rongjiang liu over 7 years ago in reply to Anand Gadiyar

Expert 1275 points

thanks
good reply
