AWR1642BOOST: Strange doppler heatmap display with SRR.cfg in mmW demo visualizer

Weks Chen

Intellectual 880 points

Part Number: AWR1642BOOST

Hi team,

I want to display SRR heatmap, but I met a strange issue that doppler-heatmap doesn't show properly.

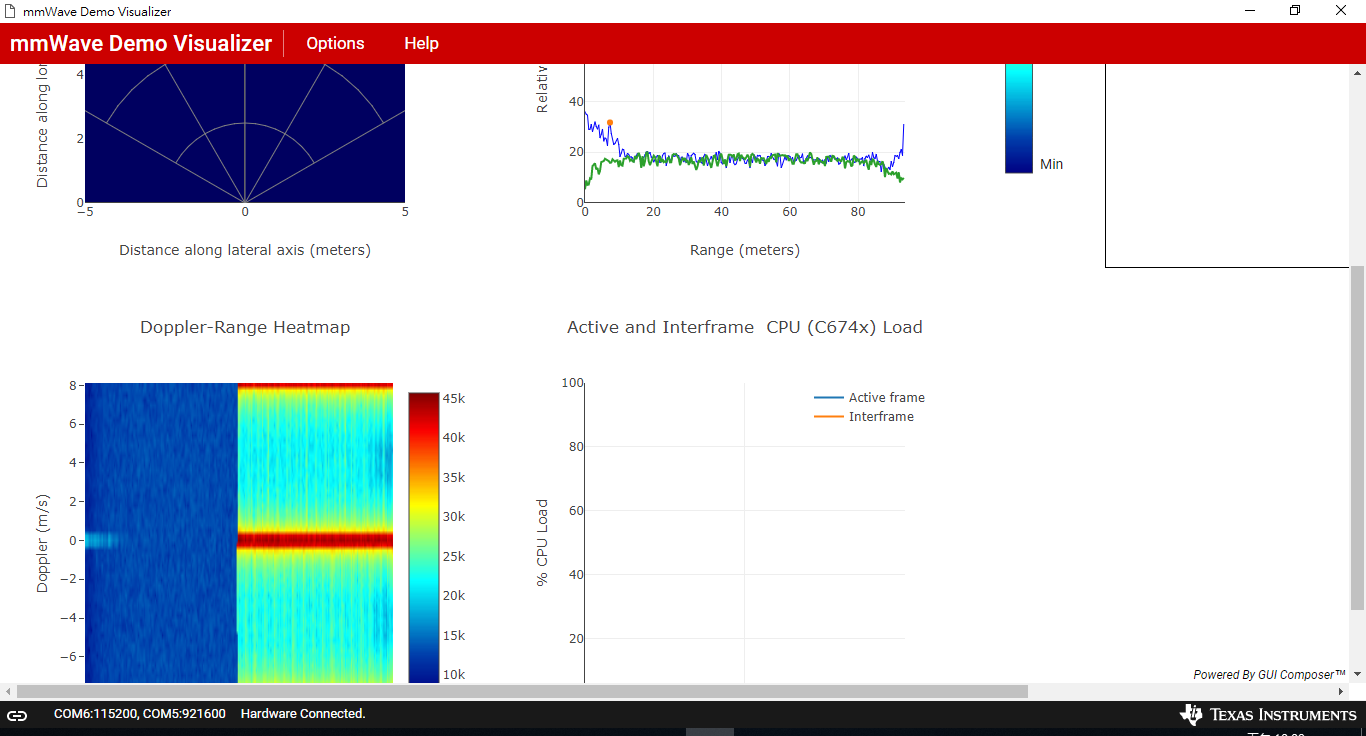

When I zoom in over 60 meter, it will show below picture.

SDK: mmwave_sdk_02_00_00_04

mmWave Demo Visualizer: 2.0.0

Do you know how to fix the problem?

Thanks.

profile_2d_srr.cfg

over 7 years ago

0 Kyle Cousino over 7 years ago

TI__Mastermind 24955 points

Weks,

I have looped in Anil to your question. Please look out for his response.

Regards,
Kyle

0 Anil Mani over 7 years ago

TI__Expert 4720 points

Hi Weks,

You cannot use the 'mmwave Demo visualizer' with the SRR demo. I'd recommend that you modify the matlab-based visualizer and have it plot the 2D-FFT output. Both demos were developed independently of each other.

That being said, I think you are getting a valid plot in the visualizer (though the axes are invalid). Just check if the information you are providing the visualizer is correct - in the case of the SRR subframe - you should be providing only transferring only 64 (doppler bins) * 256 (range bins) samples.

Regards
Anil

0 Weks Chen over 7 years ago in reply to Anil Mani

Intellectual 880 points

Hi Anil,

I know, so I modified the mmW demo Visualizer to support SRR demo.
I suppose the doppler-range heatmap of SRR demo is same as mmW demo, is it right?

I will check the data again.

Thanks a lot.

0 Anil Mani over 7 years ago in reply to Weks Chen

TI__Expert 4720 points

Hi Weks,

That is correct. There was no change between the doppler-range heatmap of the SRR demo, and the mmw demo.

Regards
Anil

0 Weks Chen over 7 years ago in reply to Anil Mani

Intellectual 880 points

Hi Anil,

Thanks for your reply.

Weks.
