AWR1642: Confirm a basic frame configuration in mmwave studio

rongjiang liu

Expert 1275 points

Part Number: AWR1642

fig1

fig2

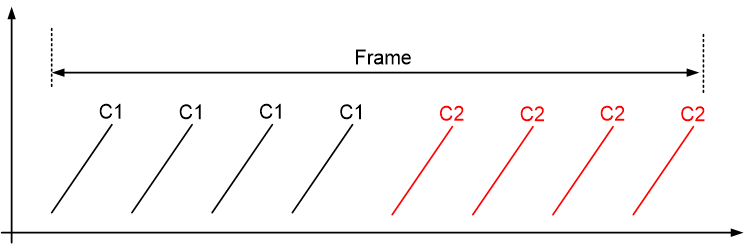

Assume the frame has 8 chirps: 4 C1+4 C2, see fig1.

C1 and C2 are all the same, except : the Idle time of C1=10us，Idle time of C2=100us

1/ when config the frame,are the steps right in fig2? Especially all the profile =0 for the 8 chirps and No of Chirp Loops=1.

2/ if No of Chirp Loops=2.

What is the frame’s costructure?

C1C1C1C1+C2C2C2C2+ C1C1C1C1+C2C2C2C2 or

C1C1C1C1+ C1C1C1C1+ C2C2C2C2+ C2C2C2C2+

Which one above is right？

over 7 years ago

0 Cesar over 7 years ago

TI__Guru*** 149384 points

Hi,

In order to understand the chirp configuration, you need to understand the use of Chirp RAM and Profile RAM

Please read section 4 in this AppNote

www.ti.com/.../swra553.pdf

Thank you
Cesar

0 aozer over 7 years ago

TI__Mastermind 30875 points

Hello,

It should be the first structure, C1C1C1C1+C2C2C2C2+C1....

However, I would recommend using multiple profile Id's for various chirps. For example, set Profile Id to 0 for C1 under 'Sensor Configuration' and 'Chirp' and set Profile Id to 1 for C2 under 'Sensor Configuration' and 'Chirp'.

Regards,

Adrian

0 rongjiang liu over 7 years ago in reply to aozer

Expert 1275 points

Thanks.

I aggree with you: using different profile ids.

But it seems different chirp should be different profile id, as a result a further dissussion comes out:

TI only allows 4 profile ids.

if the frame is c1c2c3c4c5c6c7c8c10c11c12, and the chirps are all different.

in this case, the 12 chirps can not have 12 profile ids.

What kinds of profile id style is better:

(1)all chirps belongs to 1 profile id, like p0p0p0p0.....

(2)the chirps belongs to different profile id , but chirp id is continuous, like p0p0p0p0p1p1p1p1p2p2p2p2

(3)the chirps belongs to different profile id , but chirp id is not continuous, like p0p1p2p3p0p1p2p3p0p1p2p3.

Which style is better, or either one is ok?

0 Anand Gadiyar over 7 years ago in reply to rongjiang liu

TI__Genius 15005 points

Hi,

You do not require multiple profile IDs for different chirps. Profiles are used mainly to define the RF parameters, and if you can use a single profile to achieve your desired chirp configurations, it is better overall. In general, using lesser profiles is better.

All 3 of your configurations above are okay if they meet your requirement.

Best Regards,
Anand

0 rongjiang liu over 7 years ago in reply to Anand Gadiyar

Expert 1275 points

Thanks very much Anand!!!

0 rongjiang liu over 7 years ago in reply to Anand Gadiyar

Expert 1275 points

Hi, Anand.

Would you help me sovle the question 1~5 in the thread https://e2e.ti.com/support/sensor/mmwave_sensors/f/1023/t/714261 ? Nobody answer me for a week.

Actually i want to know the steps of config a BMP frame.

Thanks very much!

0 Anand Gadiyar over 7 years ago in reply to rongjiang liu

TI__Genius 15005 points

Rongjiang,

I will take a look.

I understand nobody answered for a week, but if possible, please reply on the original thread.

Best Regards,
Anand
