IWR1642BOOST： IWR1642 - principle

Hi Justin

Except for these experiments, do you have any suggested experiments to see?
Please give a suggestion Thank you Environment Objects Any restrictions?

THANK YOU

Hi Mason,

Many of our labs work differently; it is hard to recommend anything without knowing what you are doing. What do you want to learn from the experiments?

I am not sure I understand your second question. The radar will work in any environment, but will have some trouble detecting certain materials like cardboard and drywall.

Regards,
Justin

Hi Justin

Any experiment can just want to have a direction, there is an idea,

I want to do some experiments outside the manual.

thank you

Hi Mason,

I think you will want to make sure you understand 1D FFT - range, 2D FFT - velocity, 3D FFT - angle, as well as CFAR, which is the algorithm we use to detect points from the radar signal. You should try to implement each of these parts if you are trying to understand the basic radar theory.

Regards,
Justin

Hi Justin

I think this iwr1642 is a very good product, just thinking about other experiments and recording data, but I can't think of any interesting experiments, so I want to discuss with you

Thank You

Hi Mason,

The limitation of radar in general is the angular resolution and angular accuracy. These values are determined by the number of antennas, and this is limiting in most devices, including IWR1642. However, there are multiple mechanical techniques that can be used to increase angular resolution. One idea is to mount the EVM on a motor that can spin at very small degree increments, and then use the EVM to measure at boresight. In general, I think angular accuracy and resolution is an interesting problem for radar, especially as it is applied to more complex problems such as robotics.

Regards,
Justin

Hi Justin

OK..Thank you.sound is good, I would like to ask 2 dimensional map How to draw matlab fhist data into a graph, is to write matlab code?

For example, point cloud , target list to be converted into matlab graphics?

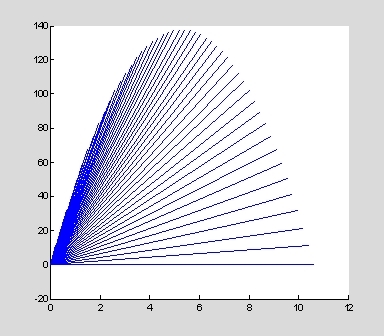

like this photo

Thank you

Hi Mason,

The point cloud data is in polar coordinate format. Each column is one point. The first value is range, the second value is angle, in radians. You can use the function pol2cart to convert the values from polar to cartesian (x, y). See the user's guide link in my first post for more.

Regards,
Justin

If are people counting ，what experiments can do,l Simply experimenters

Experiments from TI:

1. Range Accuracy when tracking a person
2. Max number of people that can be detected, will not exceed 20
3. People Density (how many can be counted in a square meter)
4. count accuracy - how accurate is the people count

Regards,

Justin

Hi Justin

How can I calculate the accuracy and calculate it from the data?

Thank You

You will have to compare the position given from the People Count demo running on the EVM to the actual values, which you will have to measure.

Regards,
Justin

Hi Justin

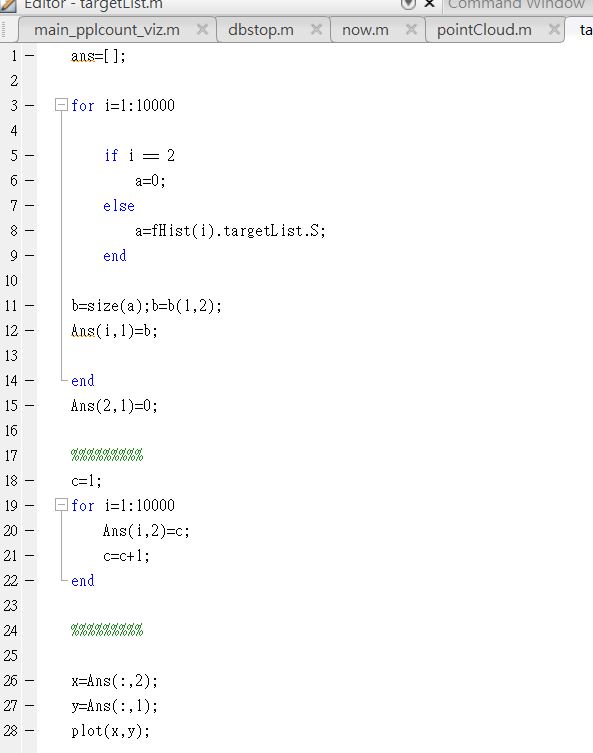

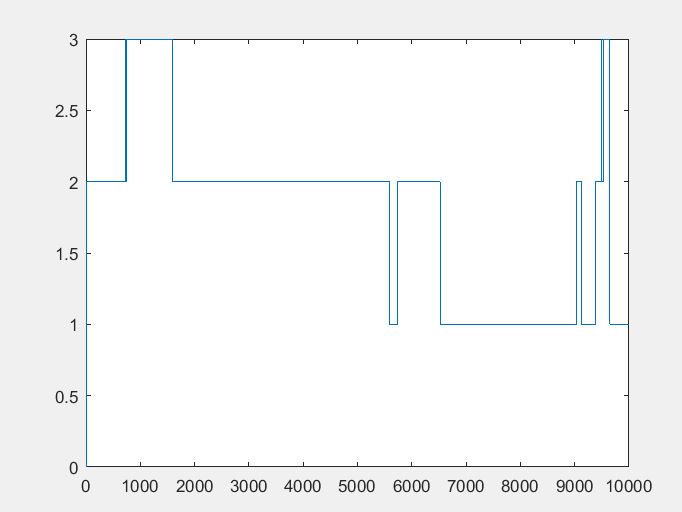

I can only write this code, as shown in the figure 1.point cloud 2.target list.

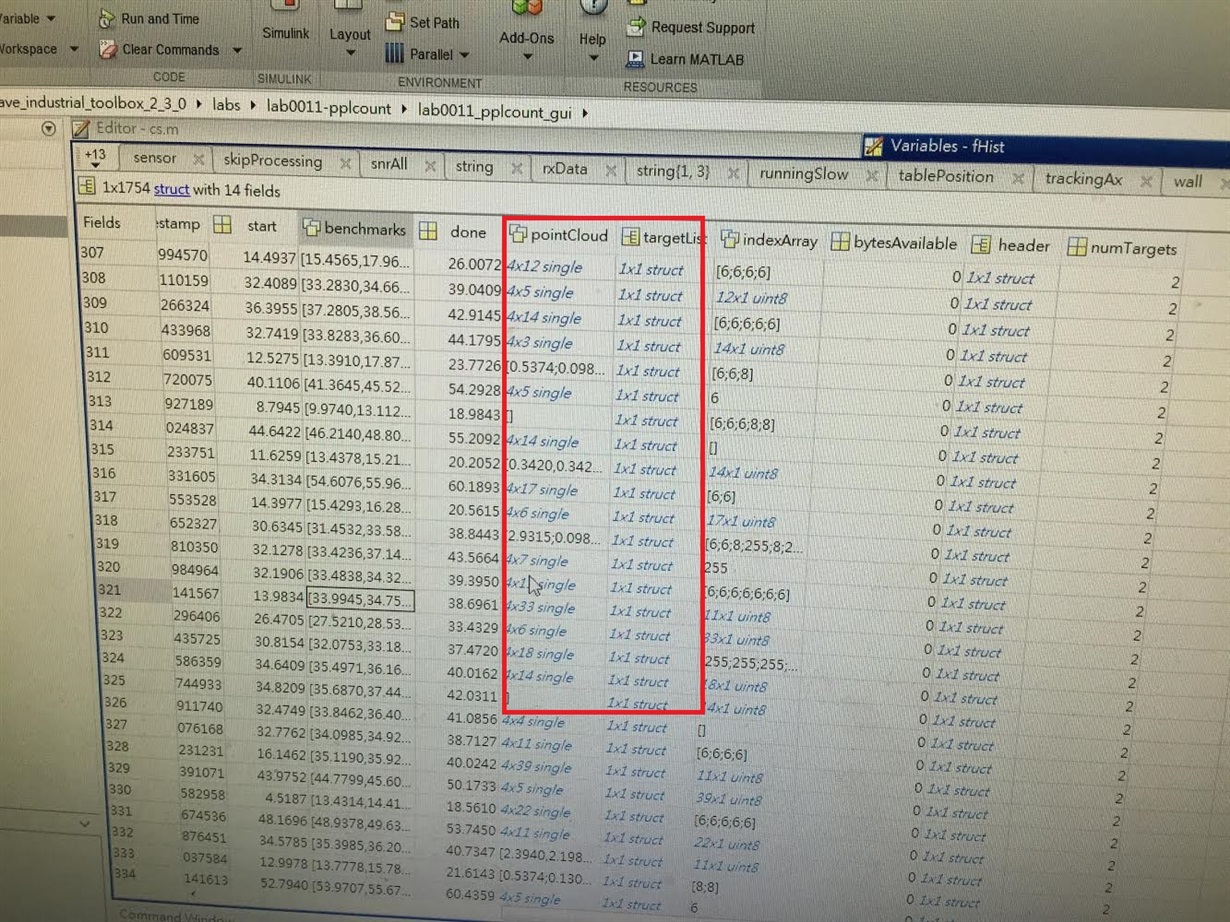

Now it's only the value of the red box. The value you want to point into the point cloud should also be displayed graphically.

How do I write the code? The values inside are also presented.

Is there a maximum of 10,000 documents?

Thank you

Hi Mason,

The fHist that is saved will only be 10,000 frames long. Matlab stores the last 10,000 frames. At 20 frames per second, this is 500 second, which is 8 minutes 20 seconds.

As discussed previously, the point cloud data is stored in polar/spherical coordinates. Please see line 586 - 591 of main_pplcount_viz.m to understand how this is converted to cartesian (x, y).

I believe careful analysis of the main_pplcount_viz.m script will help you understand how to work with the data that is stored in the fHist.

I am closing this thread as the original question has been answered. Feel free to create a new thread if you have more questions.

Regards,
Justin

Where can find main_pplcount_viz.m

I know, open main_pplcount_viz.m in MATLAMB. THANK YOU

Find main_pplcount_viz.m at <mmwave_industrial_toolbox>/labs/lab0011-pplcount/lab0011_pplcount_gui/main_pplcount_viz.m

Regards,
Justin

Hi Justin

OK. Understand. I looked at line 586-592 and still can't read it.

 So it is possible to draw all the values in the point cloud and target list.

Point cloud and target list represent (X, Y) respectively?
I will show you my code, where I need to modify it.

Thank you

Hi Mason,

Please see an example of polar coordinates here.  pointCloud(1, :) is range.  pointCloud(2,:) is angle. These are detected points from the radar front end.

Tracked targets:

fHist.targetList.S(1,:) = x coordinate of every tracked target.

fHist.targetList.S(2,:) = y coordinate of every tracked target.

Regards,

Justin

Hi Justin

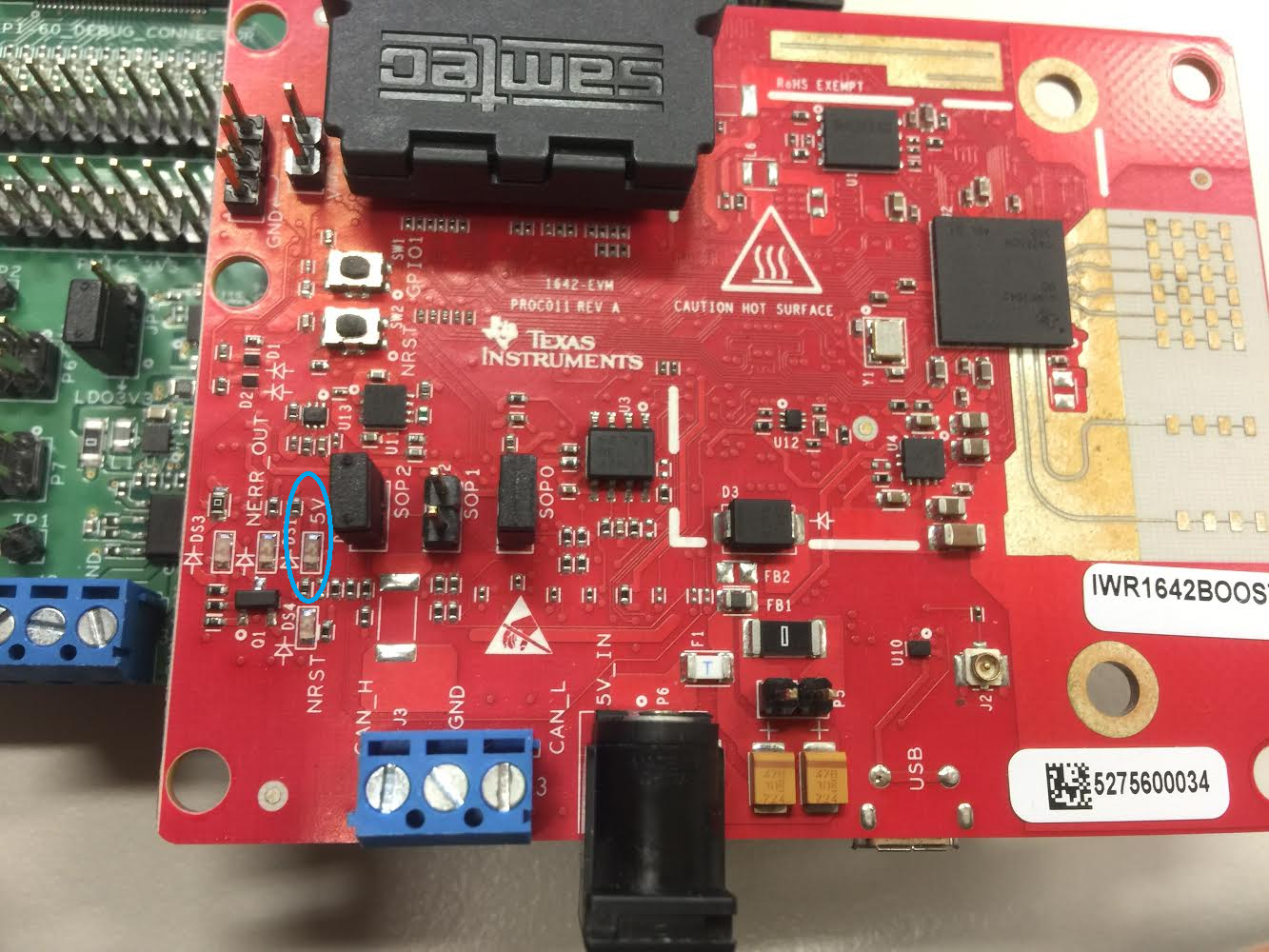

Iwer1642 seems to be broken, it will not be powered now, it seems that there is a problem with the power supply.

If  want to repair, who should I look for, I have just bought it for less than 3 months. Is it still in the warranty period?
Who is the corresponding window?

Thank you

Hi Justin

Iwr1642 plugged in the power, 5V lights have been flashing, so that there should be power on? Should there be a problem with the settings? Need to reset?

Hi Mason,

This is a different problem from the issue that caused you to open this thread. Please create a new thread and I or another engineer will answer your question.

Regards,

Justin

OK ,I i open the other one
e2e.ti.com/.../722589
