DCA1000EVM: Replaying capture data is error,after I closed PostProc onece.

user5205609

Part Number: DCA1000EVM
Other Parts Discussed in Thread: IWR1443BOOST

Hi,

I use DCA1000EVM and IWR1443BOOST(ES2.0),SDK1.2.0.5,ToolBox 2.3.0,mmwave_studio_01_00_00_00.

I captured one raw data,replayed it onece by pushing "PostProc".
PostProc could play and replay with reading this bin data any number of times,
before I closed the window of PostProc.

I once closed the the window of PostProc,then I push "PostProc" again,
error messages were displayed.(Line :233 to Line:255 of this log text file)

Fullscreen ErrLog20180828.txt Download

GM: Constructor
GM: Tue Aug 28 13:29:05 2018
RSTD.Transmit("/Settings")
[13:29:06]
[13:29:06]  ### Running Startup script: "C:\ti\mmwave_studio_01_00_00_00\mmWaveStudio\Scripts\Startup.lua" ###
[13:29:06]  RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[13:29:06]  RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[13:29:06]  Scripter ignored: Attempt to UnBuild() again or before Build.
[13:29:06]  RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
[13:29:06]  RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[13:29:06]  RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[13:29:06]  RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[13:29:06]  RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[13:29:06]  RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[13:29:06]  RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\RunTime\\SAL.dll")
[13:29:06]  RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[13:29:06]  RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[13:29:06]  RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[13:29:06]  RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[13:29:06]  RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[13:29:06]  RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[13:29:06]  RSTD.Transmit("/")
[13:29:06]  RSTD.SaveSettings(): Settings saved to "C:\Users\omron\AppData\Roaming\RSTD\config.xml"
[13:29:06]  RSTD.Build()
[13:29:06]  RSTD.SaveSettings(): Settings saved to "C:\Users\omron\AppData\Roaming\RSTD\config.xml"
[13:29:06]  RSTD.Transmit("/")
[13:29:06]  RSTD.AL_Build()
[13:29:06]  RSTD.AL_LoadXml()
[13:29:06]  RSTD.Transmit("/")
[13:29:06]  RSTD.AL_Init()
[13:29:06]  RSTD.Clients_Build()
[13:29:06]  GM: Init
[13:29:06]  GM: Loaded 'C:\ti\mmwave_studio_01_00_00_00\mmWaveStudio\Clients\\LabClient.dll'
[13:29:06]  GM: 1 Guest (s) init
[13:29:06]  GM: 1 Module(s) init
[13:29:06]  GM: 2 Tab   (s) init
[13:29:06]  RSTD.Client_LoadXml()
[13:29:06]  [RadarAPI]: Starting Matlab Engine..
[13:29:08]  [RadarAPI]: Matlab Engine Started!
[13:29:14]  [RadarAPI]: ar1.LoadSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[13:29:14]  TESTING = false
[13:29:14]
[13:29:14]  ***Script completed successfully.***
[13:29:17]  [RadarAPI]: Opening Gpio Control Port()
[13:29:17]  [RadarAPI]: Status: Passed
[13:29:17]  [RadarAPI]: Opening Board Control Port()
[13:29:17]  [RadarAPI]: Status: Passed
[13:29:18]  [RadarAPI]: ar1.FullReset()
[13:29:18]  [RadarAPI]: Status: Passed
[13:29:19]  [RadarAPI]: Closing Board Control Port()
[13:29:19]  [RadarAPI]: Status: Passed
[13:29:19]  [RadarAPI]: Closing Gpio Control Port()
[13:29:19]  [RadarAPI]: Status: Passed
[13:29:19]  [RadarAPI]: ar1.SOPControl(2)
[13:29:19]  [RadarAPI]: Status: Passed
[13:29:22]  [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[13:29:22]  [RadarAPI]: passed
[13:29:24]  [RadarAPI]: StatusDCCard Event Registered
[13:29:24]  [RadarAPI]: Status: Passed

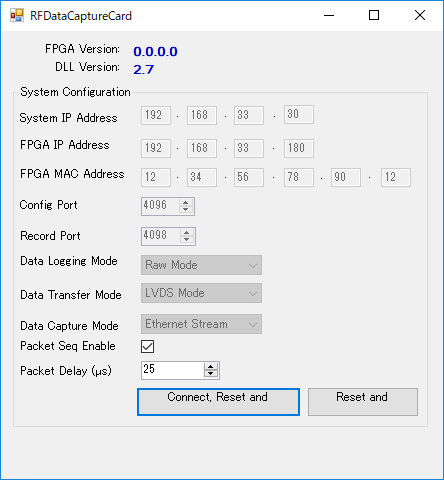

[13:29:24]  [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[13:29:24]  [RadarAPI]: SYSTEM_CONNECT_CMD_CODE Async event recieved(9)
[13:29:24]  [RadarAPI]: ConnectRFDCCard Status: Passed
[13:29:24]  [RadarAPI]: CaptureCardConfig_EthInit API Status: Failed, Error Type: RRFDCCARD_SUCCESS
[13:29:24]  [RadarAPI]: READ_FPGA_VERSION_CMD_CODE event recieved(14)
[13:29:24]  [RadarAPI]: Error Occurred in Port open close
[13:29:24]  [RadarAPI]: ar1.CaptureCardConfig_Mode(1, 0, 1, 2, 3, 0)
[13:29:24]  [RadarAPI]: CaptureCardConfig_Mode API Status: Failed, Error Type: RRFDCCARD_SUCCESS
[13:29:24]  [RadarAPI]: CONFIG_FPGA_GEN_CMD_CODE Async event recieved(3)
[13:29:24]  [RadarAPI]: Error Occurred in Port open close
[13:29:24]  [RadarAPI]: ar1.CaptureCardConfig_PacketDelay(25)
[13:29:24]  [RadarAPI]: CaptureCardConfig_PacketDelay API Status: Failed, Error Type: RRFDCCARD_SUCCESS
[13:29:24]  [RadarAPI]: CONFIG_PACKET_DATA_CMD_CODE Async event recieved(11)
[13:29:24]  [RadarAPI]: Error Occurred in Port open close
[13:29:25]  [RadarAPI]: ar1.CaptureCard_DisConnect()
[13:29:25]  [RadarAPI]: Status:Passed
[13:29:30]  [RadarAPI]: ar1.Connect(21,921600,1000)
[13:29:32]  [RadarAPI]: Warning: Connected with baudrate 115200
[13:29:33]  [RadarAPI]: Warning: Disconnected existing BaudRate
[13:29:34]  [RadarAPI]: Warning: Trying to connect with baudrate 921600
[13:29:35]  [RadarAPI]: ar1.Calling_IsConnected()
[13:29:36]  [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[13:29:36]  [RadarAPI]: Status: Passed
[13:29:37]  [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[13:29:37]  [RadarAPI]: Status: Passed
[13:29:37]  [RadarAPI]: ar1.SaveSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[13:29:42]  [RadarAPI]: ar1.ReadRegister(0xffffe210, 0, 31)
[13:29:42]  [RadarAPI]: Value : 100001
[13:29:42]  [RadarAPI]: ar1.ReadRegister(0xffffe218, 0, 31)
[13:29:42]  [RadarAPI]: Value : 12
[13:29:42]  [RadarAPI]: ar1.DownloadBSSFw("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\..\\rf_eval_firmware\\radarss\\xwr12xx_xwr14xx_radarss_ES2.0.bin")
[13:29:43]  [RadarAPI]: Downloading BSS ROM Legacy Binary..
[13:29:49]  BSS FW Download Success
[13:29:51]  [RadarAPI]: ar1.DownloadMSSFw("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\..\\rf_eval_firmware\\masterss\\xwr12xx_xwr14xx_masterss_ES2.0.bin")
[13:29:51]  [RadarAPI]: Downloading MSS Legacy Binary..
[13:29:54]  MSS FW Download Success
[13:29:57]  [RadarAPI]: ar1.PowerOn(0, 1000, 0, 0)
[13:29:57]  MSS power up done async event received!
[13:29:57]  [RadarAPI]: Status: Passed
[13:29:57]  [RadarAPI]: ar1.SaveSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[13:29:57]  Power On Success
[13:29:58]  BSS power up done async event received!
[13:29:58]  [RadarAPI]: ar1.RfEnable()
[13:29:58]  [RadarAPI]: Status: Passed
[13:30:00]  RF Enable Success
[13:30:01]  [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 0, 1, 1, 1, 1, 2, 1, 0)
[13:30:01]  [RadarAPI]: Status: Passed
[13:30:01]  ChanNAdcConfig Success
[13:30:02]  [RadarAPI]: ar1.LPModConfig(0, 0)
[13:30:02]  [RadarAPI]: Status: Passed
[13:30:02]  Regualar mode Cfg Success
[13:30:04]  [RadarAPI]: ar1.RfInit()
[13:30:04]  RF Init async event received!
[13:30:04]  [RadarAPI]: Time stamp, Temperture: 5968,36; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[13:30:04]  [RadarAPI]: Status: Passed
[13:30:04]  RfInit Success
[13:30:05]  [RadarAPI]: ar1.DataPathConfig(1, 1, 0)
[13:30:05]  [RadarAPI]: Status: Passed
[13:30:05]  DataPathConfig Success
[13:30:06]  [RadarAPI]: ar1.LvdsClkConfig(1, 1)
[13:30:07]  [RadarAPI]: Status: Passed
[13:30:07]  LvdsClkConfig Success
[13:30:08]  [RadarAPI]: ar1.LVDSLaneConfig(0, 1, 1, 1, 1, 1, 0, 0)
[13:30:08]  [RadarAPI]: Status: Passed
[13:30:08]  LVDSLaneConfig Success
[13:30:09]  [RadarAPI]: ar1.ProfileConfig(0, 77, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 0, 30)
[13:30:09]  [RadarAPI]: Status: Passed
[13:30:09]  ProfileConfig Success
[13:30:10]  [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 1, 0)
[13:30:10]  [RadarAPI]: Status: Passed
[13:30:10]  ChirpConfig Success
[13:30:11]  [RadarAPI]: ar1.DisableTestSource(0)
[13:30:11]  [RadarAPI]: Status: Passed
[13:30:11]  [RadarAPI]: ar1.FrameConfig(0, 0, 8, 128, 40, 0, 1)
[13:30:11]  [RadarAPI]: Status: Passed
[13:30:11]  FrameConfig Success
[13:30:12]  [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[13:30:12]  [RadarAPI]: passed
[13:30:12]  SelectCaptureDevice Success
[13:30:13]  [RadarAPI]: StatusDCCard Event Registered
[13:30:13]  [RadarAPI]: Status: Passed
[13:30:13]  [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[13:30:13]  [RadarAPI]: Status: Passed
[13:30:13]  [RadarAPI]: SYSTEM_CONNECT_CMD_CODE Async event recieved(9)
[13:30:14]  [RadarAPI]: ConnectRFDCCard Status: Passed
[13:30:14]  [RadarAPI]: Status: Passed
[13:30:14]  [RadarAPI]: READ_FPGA_VERSION_CMD_CODE event recieved(14)
[13:30:14]  [RadarAPI]: Status: Passed
[13:30:14]  CaptureCardConfig_EthInit Success
[13:30:15]  [RadarAPI]: ar1.ConfigureRFDCCardMode(1, 1, 1, 2, 3, 0)
[13:30:15]  [RadarAPI]: Status: Passed
[13:30:15]  [RadarAPI]: CONFIG_FPGA_GEN_CMD_CODE Async event recieved(3)
[13:30:15]  CaptureCardConfig_Mode Success
[13:30:16]  [RadarAPI]: ar1.CaptureCardConfig_PacketDelay(25)
[13:30:16]  [RadarAPI]: Status: Passed
[13:30:16]  [RadarAPI]: CONFIG_PACKET_DATA_CMD_CODE Async event recieved(11)
[13:30:16]  CaptureCardConfig_PacketDelay Success
[13:30:17]  [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", 1)
[13:30:17]  [RadarAPI]: Status: Passed
[13:30:17]  [RadarAPI]: RECORD_START_CMD_CODE Async event recieved(5)
[13:30:18]  [RadarAPI]: ar1.StartFrame()
[13:30:18]  [RadarAPI]: Status: Passed
[13:30:18]  Frame start async event received!
[13:30:18]  [RadarAPI]: Frame Ended
[13:30:18]  Frame End async event received!
[13:30:20]  Please wait for a few seconds for Packet reorder utility processing .....!!!!
[13:30:20]  [RadarAPI]: Packet Reorder Utility Started...please wait...
[13:30:20]  [RadarAPI]: ar1.PacketReorderZeroFill("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data_Raw_0.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\pktlogfile.txt")
[13:30:20]  [RadarAPI]: STS_RECORD_COMPLETED Async event recieved(8)
[13:30:20]  [RadarAPI]: ar1.CaptureCardConfig_StopRecord()
[13:30:20]  [RadarAPI]: Status: Passed
[13:30:20]  [RadarAPI]: RECORD_STOP_CMD_CODE Async event recieved(6)
[13:30:25]  [RadarAPI]: Packet Reorder Utility process completed!
[13:30:25]  Reordering required : NO
[13:30:25]  Packet loss : NO
[13:30:25]  Number of packets received : 2879
[13:30:25]  Number of zero filled packets : 0
[13:30:25]  Number of zero filled bytes : 0
[13:30:35]  Packet reorder utility processing done.....!!!!
[13:30:35]  Please wait for a few seconds for matlab post processing .....!!!!
[13:30:35]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin")
[13:30:45]
[13:30:45]  ***Script completed successfully.***
[13:31:49]  [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 1, 1, 1, 1, 1, 2, 1, 0)
[13:31:50]  [RadarAPI]: Status: Passed
[13:31:51]  [RadarAPI]: ar1.LPModConfig(0, 0)
[13:31:51]  [RadarAPI]: Status: Passed
[13:31:52]  [RadarAPI]: ar1.RfInit()
[13:31:52]  RF Init async event received!
[13:31:52]  [RadarAPI]: Time stamp, Temperture: 114096,42; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[13:31:52]  [RadarAPI]: Status: Passed
[13:31:56]  [RadarAPI]: ar1.ProfileConfig(0, 77, 15, 7, 114, 0, 0, 0, 0, 0, 0, 35.003, 1, 224, 2107, 0, 0, 30)
[13:31:56]  [RadarAPI]: Status: Passed
[13:32:01]  [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 0, 0)
[13:32:01]  [RadarAPI]: Status: Passed
[13:32:08]  [RadarAPI]: ar1.ChirpConfig(1, 1, 0, 0, 0, 0, 0, 0, 1, 0)
[13:32:08]  [RadarAPI]: Status: Passed
[13:32:13]  [RadarAPI]: ar1.ChirpConfig(2, 2, 0, 0, 0, 0, 0, 0, 0, 1)
[13:32:13]  [RadarAPI]: Status: Passed
[13:32:15]  [RadarAPI]: ar1.DisableTestSource(0)
[13:32:15]  [RadarAPI]: Status: Passed
[13:32:15]  [RadarAPI]: ar1.FrameConfig(0, 2, 0, 16, 100, 0, 1)
[13:32:15]  [RadarAPI]: Status: Passed
[13:32:18]  [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", 1)
[13:32:18]  [RadarAPI]: Status: Passed
[13:32:18]  [RadarAPI]: RECORD_START_CMD_CODE Async event recieved(5)
[13:32:26]  [RadarAPI]: ar1.StartFrame()
[13:32:26]  [RadarAPI]: Status: Passed
[13:32:26]  Frame start async event received!
[13:32:36]  [RadarAPI]: ar1.StopFrame()
[13:32:36]  [RadarAPI]: ar1.CaptureCardConfig_StopRecord()
[13:32:36]  [RadarAPI]: StopRecordData Status: Passed
[13:32:36]  [RadarAPI]: RECORD_STOP_CMD_CODE Async event recieved(6)
[13:32:36]  [RadarAPI]: Status: Passed
[13:32:36]  Frame End async event received!
[13:32:38]  [RadarAPI]: Packet Reorder Utility Started...please wait...
[13:32:38]  [RadarAPI]: ar1.PacketReorderZeroFill("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data_Raw_0.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\PostProc\\pktlogfile.txt")
[13:32:43]  [RadarAPI]: Packet Reorder Utility process completed!
[13:32:48]  Reordering required : NO
[13:32:48]  Packet loss : NO
[13:32:48]  Number of packets received : 11224
[13:32:48]  Number of zero filled packets : 0
[13:32:48]  Number of zero filled bytes : 0
[13:32:48]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin")
[13:34:38]  [RadarAPI]: Packet Reorder Utility Started...please wait...
[13:34:38]  [RadarAPI]: ar1.PacketReorderZeroFill("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data_Raw_0.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\PostProc\\pktlogfile.txt")
[13:34:43]  [RadarAPI]: Packet Reorder Utility process completed!
[13:34:48]  Reordering required : NO
[13:34:48]  Packet loss : NO
[13:34:48]  Number of packets received : 11224
[13:34:48]  Number of zero filled packets : 0
[13:34:48]  Number of zero filled bytes : 0
[13:34:48]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin")
[13:34:49]  [RadarAPI]: Error:
[13:34:49]
[13:34:49]  ... MWMCR::EvaluateFunction error ...
[13:34:49]  28-Aug-2018 13:34:49: Unable to access frame :,96,1,
[13:34:49]  Error in => process_adc_data.m at line 52.
[13:34:49]
[13:34:49]  ... Matlab M-code Stack Trace ...
[13:34:49]      at
[13:34:49]  file C:\Users\omron\AppData\Local\Temp\omron\mcrCache8.5.1\Matlab0\Logging\log_status.m, name log_status, line 32.
[13:34:49]      at
[13:34:49]  file C:\Users\omron\AppData\Local\Temp\omron\mcrCache8.5.1\Matlab0\Processing_functions\read_adc_data.m, name read_adc_data_12xx, line 312.
[13:34:49]      at
[13:34:49]  file C:\Users\omron\AppData\Local\Temp\omron\mcrCache8.5.1\Matlab0\Processing_functions\read_adc_data.m, name read_adc_data, line 49.
[13:34:49]      at
[13:34:49]  file C:\Users\omron\AppData\Local\Temp\omron\mcrCache8.5.1\Matlab0\MatlabPostPr\process_adc_data.m, name process_adc_data, line 52.
[13:34:49]
[13:34:49]
[13:34:49]  Trace:
[13:34:49]     �ꏊ(Place) MathWorks.MATLAB.NET.Utility.MWMCR.EvaluateFunction(String functionName, Int32 numArgsOut, Int32 numArgsIn, MWArray[] argsIn)
[13:34:49]     �ꏊ(Place) MathWorks.MATLAB.NET.Utility.MWMCR.EvaluateFunction(Int32 numArgsOut, String functionName, MWArray[] argsIn)
[13:34:49]     �ꏊ(Place) MatlabPostProcGui.MatlabPostProcGUIClass.process_adc_data(MWArray adc_file_name, MWArray force_cont_stream_mode)
[13:34:49]     �ꏊ(Place) AR1xController.frmAR1Main.iStartCaptureMtlabPostProc()

I can not open PostProc again.

In order to open PostProc again, must I close the mmwave_studio_01_00_00_00 once and reset all again?

Regards,
user5205609

over 7 years ago

0 Michelle Liu over 7 years ago

TI__Genius 11405 points

Hi,

Could you move the config DCA card step to after the chirp/frame config is done and right before staring the capture (DCA1000 ARM)?

Thanks and Regards,
Michelle

0 user5205609 over 7 years ago in reply to Michelle Liu

Intellectual 960 points

Hi,

Thank you very much.

I attempted to execute in the following procedure, but an error occurs. I will attach a log and xml of cfg..

1.mmwaveStudio Start
2.Coonection Tab
　Set(1)
　Connect(2)
　Run
3.On PostProc screen,I play data,and close screen.
4.Load config.
5.Static Config Tab.
　Adc Config Set
　LP Mode Set
　RF Init
6.Sensor Config Tab
　Profile Set
　Chirp Set 3 times
1).Start Chirp:0
　End Chirp:0
　Tx0
2).Start Chirp:1
　End Chirp:1
　Tx1
3).Start Chirp:2
　End Chirp:2
　Tx2
Frame Set
SetUp DCA1000...Error.

Fullscreen 20180831_log001.txt Download

GM: Constructor
GM: Fri Aug 31 11:19:05 2018
RSTD.Transmit("/Settings")
[11:19:05]
[11:19:05]  ### Running Startup script: "C:\ti\mmwave_studio_01_00_00_00\mmWaveStudio\Scripts\Startup.lua" ###
[11:19:05]  RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[11:19:05]  RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[11:19:05]  Scripter ignored: Attempt to UnBuild() again or before Build.
[11:19:05]  RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
[11:19:05]  RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[11:19:05]  RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[11:19:05]  RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[11:19:05]  RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[11:19:05]  RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[11:19:05]  RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\RunTime\\SAL.dll")
[11:19:05]  RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[11:19:05]  RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[11:19:05]  RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[11:19:05]  RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[11:19:05]  RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[11:19:05]  RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[11:19:05]  RSTD.Transmit("/")
[11:19:05]  RSTD.SaveSettings(): Settings saved to "C:\Users\omron\AppData\Roaming\RSTD\config.xml"
[11:19:05]  RSTD.Build()
[11:19:05]  RSTD.SaveSettings(): Settings saved to "C:\Users\omron\AppData\Roaming\RSTD\config.xml"
[11:19:05]  RSTD.Transmit("/")
[11:19:05]  RSTD.AL_Build()
[11:19:05]  RSTD.AL_LoadXml()
[11:19:05]  RSTD.Transmit("/")
[11:19:05]  RSTD.AL_Init()
[11:19:05]  RSTD.Clients_Build()
[11:19:05]  GM: Init
[11:19:05]  GM: Loaded 'C:\ti\mmwave_studio_01_00_00_00\mmWaveStudio\Clients\\LabClient.dll'
[11:19:05]  GM: 1 Guest (s) init
[11:19:05]  GM: 1 Module(s) init
[11:19:05]  GM: 2 Tab   (s) init
[11:19:05]  RSTD.Client_LoadXml()
[11:19:05]  [RadarAPI]: Starting Matlab Engine..
[11:19:07]  [RadarAPI]: Matlab Engine Started!
[11:19:12]  [RadarAPI]: ar1.LoadSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[11:19:12]  TESTING = false
[11:19:12]
[11:19:12]  ***Script completed successfully.***
[11:19:43]  [RadarAPI]: Opening Gpio Control Port()
[11:19:43]  [RadarAPI]: Status: Passed
[11:19:44]  [RadarAPI]: Opening Board Control Port()
[11:19:44]  [RadarAPI]: Status: Passed
[11:19:45]  [RadarAPI]: ar1.FullReset()
[11:19:45]  [RadarAPI]: Status: Passed
[11:19:46]  [RadarAPI]: Closing Board Control Port()
[11:19:46]  [RadarAPI]: Status: Passed
[11:19:46]  [RadarAPI]: Closing Gpio Control Port()
[11:19:46]  [RadarAPI]: Status: Passed
[11:19:46]  [RadarAPI]: ar1.SOPControl(2)
[11:19:46]  [RadarAPI]: Status: Passed
[11:19:48]  [RadarAPI]: ar1.Connect(9,921600,1000)
[11:19:51]  [RadarAPI]: Warning: Connected with baudrate 115200
[11:19:52]  [RadarAPI]: Warning: Disconnected existing BaudRate
[11:19:52]  [RadarAPI]: Warning: Trying to connect with baudrate 921600
[11:19:54]  [RadarAPI]: ar1.Calling_IsConnected()
[11:19:55]  [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[11:19:55]  [RadarAPI]: Status: Passed
[11:19:56]  [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[11:19:56]  [RadarAPI]: Status: Passed
[11:19:56]  [RadarAPI]: ar1.SaveSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[11:19:59]  [RadarAPI]: ar1.ReadRegister(0xffffe210, 0, 31)
[11:19:59]  [RadarAPI]: Value : 100001
[11:19:59]  [RadarAPI]: ar1.ReadRegister(0xffffe218, 0, 31)
[11:19:59]  [RadarAPI]: Value : 12
[11:19:59]  [RadarAPI]: ar1.DownloadBSSFw("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\..\\rf_eval_firmware\\radarss\\xwr12xx_xwr14xx_radarss_ES2.0.bin")
[11:20:00]  [RadarAPI]: Downloading BSS ROM Legacy Binary..
[11:20:06]  BSS FW Download Success
[11:20:08]  [RadarAPI]: ar1.DownloadMSSFw("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\..\\rf_eval_firmware\\masterss\\xwr12xx_xwr14xx_masterss_ES2.0.bin")
[11:20:08]  [RadarAPI]: Downloading MSS Legacy Binary..
[11:20:12]  MSS FW Download Success
[11:20:14]  MSS power up done async event received!
[11:20:14]  [RadarAPI]: ar1.PowerOn(0, 1000, 0, 0)
[11:20:14]  [RadarAPI]: Status: Passed
[11:20:14]  [RadarAPI]: ar1.SaveSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[11:20:14]  Power On Success
[11:20:15]  BSS power up done async event received!
[11:20:15]  [RadarAPI]: ar1.RfEnable()
[11:20:15]  [RadarAPI]: Status: Passed
[11:20:17]  RF Enable Success
[11:20:18]  [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 0, 1, 1, 1, 1, 2, 1, 0)
[11:20:18]  [RadarAPI]: Status: Passed
[11:20:18]  ChanNAdcConfig Success
[11:20:19]  [RadarAPI]: ar1.LPModConfig(0, 0)
[11:20:19]  [RadarAPI]: Status: Passed
[11:20:19]  Regualar mode Cfg Success
[11:20:21]  [RadarAPI]: ar1.RfInit()
[11:20:21]  RF Init async event received!
[11:20:21]  [RadarAPI]: Time stamp, Temperture: 5778,39; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:20:21]  [RadarAPI]: Status: Passed
[11:20:21]  RfInit Success
[11:20:22]  [RadarAPI]: ar1.DataPathConfig(1, 1, 0)
[11:20:22]  [RadarAPI]: Status: Passed
[11:20:22]  DataPathConfig Success
[11:20:23]  [RadarAPI]: ar1.LvdsClkConfig(1, 1)
[11:20:23]  [RadarAPI]: Status: Passed
[11:20:23]  LvdsClkConfig Success
[11:20:24]  [RadarAPI]: ar1.LVDSLaneConfig(0, 1, 1, 1, 1, 1, 0, 0)
[11:20:24]  [RadarAPI]: Status: Passed
[11:20:24]  LVDSLaneConfig Success
[11:20:25]  [RadarAPI]: ar1.ProfileConfig(0, 77, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 0, 30)
[11:20:26]  [RadarAPI]: Status: Passed
[11:20:26]  ProfileConfig Success
[11:20:27]  [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 1, 0)
[11:20:27]  [RadarAPI]: Status: Passed
[11:20:27]  ChirpConfig Success
[11:20:28]  [RadarAPI]: ar1.DisableTestSource(0)
[11:20:28]  [RadarAPI]: Status: Passed
[11:20:28]  [RadarAPI]: ar1.FrameConfig(0, 0, 8, 128, 40, 0, 1)
[11:20:28]  [RadarAPI]: Status: Passed
[11:20:28]  FrameConfig Success
[11:20:29]  [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[11:20:29]  [RadarAPI]: passed
[11:20:29]  SelectCaptureDevice Success
[11:20:30]  [RadarAPI]: StatusDCCard Event Registered
[11:20:30]  [RadarAPI]: Status: Passed
[11:20:30]  [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[11:20:30]  [RadarAPI]: Status: Passed
[11:20:30]  [RadarAPI]: SYSTEM_CONNECT_CMD_CODE Async event recieved(9)
[11:20:30]  [RadarAPI]: ConnectRFDCCard Status: Passed
[11:20:30]  [RadarAPI]: Status: Passed
[11:20:30]  [RadarAPI]: READ_FPGA_VERSION_CMD_CODE event recieved(14)
[11:20:30]  [RadarAPI]: Status: Passed
[11:20:30]  CaptureCardConfig_EthInit Success
[11:20:31]  [RadarAPI]: ar1.ConfigureRFDCCardMode(1, 1, 1, 2, 3, 0)
[11:20:31]  [RadarAPI]: Status: Passed
[11:20:31]  [RadarAPI]: CONFIG_FPGA_GEN_CMD_CODE Async event recieved(3)
[11:20:31]  CaptureCardConfig_Mode Success
[11:20:32]  [RadarAPI]: ar1.CaptureCardConfig_PacketDelay(25)
[11:20:32]  [RadarAPI]: Status: Passed
[11:20:32]  [RadarAPI]: CONFIG_PACKET_DATA_CMD_CODE Async event recieved(11)
[11:20:32]  CaptureCardConfig_PacketDelay Success
[11:20:33]  [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", 1)
[11:20:33]  [RadarAPI]: Status: Passed
[11:20:33]  [RadarAPI]: RECORD_START_CMD_CODE Async event recieved(5)
[11:20:34]  [RadarAPI]: ar1.StartFrame()
[11:20:34]  [RadarAPI]: Status: Passed
[11:20:34]  Frame start async event received!
[11:20:35]  [RadarAPI]: Frame Ended
[11:20:35]  Frame End async event received!
[11:20:36]  Please wait for a few seconds for Packet reorder utility processing .....!!!!
[11:20:36]  [RadarAPI]: Packet Reorder Utility Started...please wait...
[11:20:36]  [RadarAPI]: ar1.PacketReorderZeroFill("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data_Raw_0.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\pktlogfile.txt")
[11:20:37]  [RadarAPI]: STS_RECORD_COMPLETED Async event recieved(8)
[11:20:37]  [RadarAPI]: ar1.CaptureCardConfig_StopRecord()
[11:20:37]  [RadarAPI]: Status: Passed
[11:20:37]  [RadarAPI]: RECORD_STOP_CMD_CODE Async event recieved(6)
[11:20:41]  [RadarAPI]: Packet Reorder Utility process completed!
[11:20:41]  Reordering required : NO
[11:20:41]  Packet loss : NO
[11:20:41]  Number of packets received : 2879
[11:20:41]  Number of zero filled packets : 0
[11:20:41]  Number of zero filled bytes : 0
[11:20:52]  Packet reorder utility processing done.....!!!!
[11:20:52]  Please wait for a few seconds for matlab post processing .....!!!!
[11:20:52]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin")
[11:21:02]
[11:21:02]  ***Script completed successfully.***
[11:21:14]  [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 1, 1, 1, 1, 1, 2, 1, 0)
[11:21:15]  [RadarAPI]: Status: Passed
[11:21:16]  [RadarAPI]: ar1.LPModConfig(0, 0)
[11:21:16]  [RadarAPI]: Status: Passed
[11:21:16]  [RadarAPI]: ar1.RfInit()
[11:21:17]  RF Init async event received!
[11:21:17]  [RadarAPI]: Time stamp, Temperture: 61179,41; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:21:17]  [RadarAPI]: Status: Passed
[11:21:19]  [RadarAPI]: ar1.ProfileConfig(0, 77, 15, 7, 114, 0, 0, 0, 0, 0, 0, 35.003, 1, 224, 2107, 0, 0, 30)
[11:21:20]  [RadarAPI]: Status: Passed
[11:21:23]  [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 0, 0)
[11:21:23]  [RadarAPI]: Status: Passed
[11:21:29]  [RadarAPI]: ar1.ChirpConfig(1, 1, 0, 0, 0, 0, 0, 0, 1, 0)
[11:21:29]  [RadarAPI]: Status: Passed
[11:21:34]  [RadarAPI]: ar1.ChirpConfig(2, 2, 0, 0, 0, 0, 0, 0, 0, 1)
[11:21:34]  [RadarAPI]: Status: Passed
[11:21:39]  [RadarAPI]: ar1.DisableTestSource(0)
[11:21:39]  [RadarAPI]: Status: Passed
[11:21:39]  [RadarAPI]: ar1.FrameConfig(0, 2, 0, 16, 100, 0, 1)
[11:21:39]  [RadarAPI]: Status: Passed
[11:21:49]  [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[11:21:49]  [RadarAPI]: passed
[11:21:53]  [RadarAPI]: StatusDCCard Event Registered
[11:21:53]  [RadarAPI]: Status: Passed
[11:21:53]  [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[11:21:55]  ConnectRFDCCard Status: RFDCCARD_UDP_WRITE_ERR
[11:21:55]  Ethernet Cable is disconnected Please check.....!!!
[11:22:18]  [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", 1)
[11:22:18]  [RadarAPI]: Status: Failed, Error Type: RFDCCARD_UDP_WRITE_ERR
[11:22:25]  [RadarAPI]: ar1.StartFrame()
[11:22:25]  [RadarAPI]: Status: Passed
[11:22:25]  Frame start async event received!
[11:22:58]  [RadarAPI]: ar1.StopFrame()
[11:22:59]  [RadarAPI]: ar1.CaptureCardConfig_StopRecord()
[11:22:59]  [RadarAPI]: StopRecordData Status: Failed, Error Type: RFDCCARD_UDP_WRITE_ERR
[11:22:59]  Status: Failed, Error Type: SELF ERROR
[11:22:59]  Frame End async event received!

Fullscreen Near_CFG_for_test_180724.xml Download

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
	<apiname_channel_cfg>
		<param name="rx0En" value="1" />
		<param name="tx0En" value="1" />
		<param name="rx1En" value="1" />
		<param name="cascadeMode" value="0" />
		<param name="rx2En" value="1" />
		<param name="tx2En" value="1" />
		<param name="rx3En" value="1" />
		<param name="tx1En" value="1" />
	</apiname_channel_cfg>
	<apiname_adc_cfg>
		<param name="bitsVal" value="2" />
		<param name="IQSwap" value="0" />
		<param name="formatVal" value="1" />
	</apiname_adc_cfg>
	<apiname_lp_cfg>
		<param name="lpAdcMode" value="0" />
	</apiname_lp_cfg>
	<apiname_freqlimit_cfg>
		<param name="freqLimitLow" value="76.0" />
		<param name="freqLimitHigh" value="81.0" />
	</apiname_freqlimit_cfg>
	<apiname_rfldobypass_cfg>
		<param name="RFLdoByPass" value="0" />
	</apiname_rfldobypass_cfg>
	<apiname_radarmisccontrol_cfg>
		<param name="PerChirpPhaseShiftEna" value="0" />
	</apiname_radarmisccontrol_cfg>
	<apiname_calmonfreqtxpowlimit_cfg>
		<param name="freqLimitLowTx1" value="76.0" />
		<param name="freqLimitHighTx2" value="81.0" />
		<param name="freqLimitLowTx0" value="76.0" />
		<param name="tx0PowerBackoff" value="0" />
		<param name="tx1PowerBackoff" value="0" />
		<param name="freqLimitHighTx0" value="81.0" />
		<param name="tx2PowerBackoff" value="0" />
		<param name="freqLimitLowTx2" value="76.0" />
		<param name="freqLimitHighTx1" value="81.0" />
	</apiname_calmonfreqtxpowlimit_cfg>
	<apiname_datapath_cfg>
		<param name="dataPathCfgPath" value="1" />
		<param name="dataCfgFmt1" value="0" />
		<param name="pkt0VChannelNo" value="0" />
		<param name="pkt1VChannelNo" value="0" />
		<param name="dataCfgFmt0" value="0" />
	</apiname_datapath_cfg>
	<apiname_clock_cfg>
		<param name="dataRate" value="1" />
		<param name="laneClock" value="1" />
	</apiname_clock_cfg>
	<apiname_lvdslane_cfg>
		<param name="lane4En" value="1" />
		<param name="lane2En" value="1" />
		<param name="lane3En" value="1" />
		<param name="lane1En" value="1" />
		<param name="lvdsPacketEndPulse" value="0" />
		<param name="lvdsCrcEn" value="0" />
		<param name="laneFormat" value="0" />
		<param name="lvdsMsbFirst" value="1" />
	</apiname_lvdslane_cfg>
	<apiname_csi2lane_cfg>
		<param name="clockPol" value="0" />
		<param name="lane1Pos" value="2" />
		<param name="lane2Pos" value="4" />
		<param name="lane2Pol" value="0" />
		<param name="lane0Pos" value="1" />
		<param name="lane0Pol" value="0" />
		<param name="lane1Pol" value="0" />
		<param name="lane3Pos" value="5" />
		<param name="lane3Pol" value="0" />
		<param name="clockPos" value="3" />
	</apiname_csi2lane_cfg>
	<apiname_testpatterngen_cfg>
		<param name="testPatternRx3ICFGVal" value="0" />
		<param name="testPatternPktSize" value="0" />
		<param name="testPatternRx0ICFGStartOffset" value="0" />
		<param name="numTestPatternPkts" value="0" />
		<param name="testPatternRx1QCFGStartOffset" value="0" />
		<param name="testPatternRx2QCFGVal" value="0" />
		<param name="testPatternGenCtl" value="0" />
		<param name="testPatternRx3QCFGStartOffset" value="0" />
		<param name="testPatternRx0QCFGVal" value="0" />
		<param name="testPatternRx3QCFGVal" value="0" />
		<param name="testPatternRx2QCFGStartOffset" value="0" />
		<param name="testPatternRx1QCFGVal" value="0" />
		<param name="testPatternRx2ICFGVal" value="0" />
		<param name="testPatternRx0QCFGStartOffset" value="0" />
		<param name="testPatternRx1ICFGStartOffset" value="0" />
		<param name="testPatternRx3ICFGStartOffset" value="0" />
		<param name="testPatternGenTime" value="0" />
		<param name="testPatternRx0ICFGVal" value="0" />
		<param name="testPatternRx2ICFGStartOffset" value="0" />
		<param name="testPatternRx1ICFGVal" value="0" />
	</apiname_testpatterngen_cfg>
	<apiname_testsource_cfg>
		<param name="obj2PosY" value="327" />
		<param name="obj1AntPosRx1X" value="0" />
		<param name="obj2Sig" value="-95" />
		<param name="obj1VelY" value="0" />
		<param name="obj2VelZ" value="0" />
		<param name="obj1PosZ" value="0" />
		<param name="obj1PosY" value="3" />
		<param name="obj2PosZ" value="0" />
		<param name="obj1BMaxZ" value="327" />
		<param name="obj1BMaxX" value="327" />
		<param name="obj1BMaxY" value="327" />
		<param name="obj1AntPosRx4Z" value="0" />
		<param name="obj1AntPosRx2Z" value="0" />
		<param name="obj1AntPosRx3Z" value="0" />
		<param name="obj1AntPosRx1Z" value="0" />
		<param name="obj1VelX" value="0" />
		<param name="obj1AntPosRx3X" value="1" />
		<param name="obj1PosX" value="4" />
		<param name="obj2BMaxZ" value="327" />
		<param name="obj2BMaxX" value="327" />
		<param name="obj2BMaxY" value="327" />
		<param name="obj1BMinZ" value="-327.6" />
		<param name="obj1BMinX" value="-327.6" />
		<param name="obj1BMinY" value="0" />
		<param name="obj1AntPosTx2X" value="0" />
		<param name="obj1AntPosTx3X" value="0" />
		<param name="obj1Sig" value="-2.5" />
		<param name="obj1AntPosTx1X" value="0" />
		<param name="obj1VelZ" value="0" />
		<param name="obj2VelX" value="0" />
		<param name="obj2BMinZ" value="-327" />
		<param name="obj2BMinX" value="-327" />
		<param name="obj2BMinY" value="0" />
		<param name="obj2PosX" value="327" />
		<param name="obj1AntPosTx2Z" value="0" />
		<param name="obj1AntPosTx3Z" value="0" />
		<param name="obj2VelY" value="0" />
		<param name="obj1AntPosTx1Z" value="0" />
		<param name="obj1AntPosRx4X" value="1.5" />
		<param name="obj1AntPosRx2X" value="0.5" />
	</apiname_testsource_cfg>
	<apiname_profile_cfg>
		<param name="tx1OutPowerBackoffCode" value="0" />
		<param name="rampEndTime" value="114" />
		<param name="tx1PhaseShifter" value="0" />
		<param name="adcStartTimeConst" value="7" />
		<param name="hpfCornerFreq1" value="0" />
		<param name="freqSlopeConst" value="35.003" />
		<param name="numAdcSamples" value="224" />
		<param name="rxGain" value="30" />
		<param name="tx2OutPowerBackoffCode" value="0" />
		<param name="pprofileId" value="0" />
		<param name="tx3OutPowerBackoffCode" value="0" />
		<param name="hpfCornerFreq2" value="0" />
		<param name="txStartTime" value="1" />
		<param name="tx2PhaseShifter" value="0" />
		<param name="startFreqConst" value="77.0" />
		<param name="retainRxCalLUT" value="0" />
		<param name="vcoSelect" value="0" />
		<param name="idleTimeConst" value="15" />
		<param name="forceVCOSelect" value="0" />
		<param name="tx3PhaseShifter" value="0" />
		<param name="digOutSampleRate" value="2107" />
		<param name="rfGainTarget" value="0" />
		<param name="retainTxCalLUT" value="0" />
	</apiname_profile_cfg>
	<apiname_chirp_cfg>
		<param name="startFreqVar" value="0" />
		<param name="adcStartTimeVar" value="0" />
		<param name="cprofileId" value="0" />
		<param name="tx3Enable" value="1" />
		<param name="tx2Enable" value="0" />
		<param name="tx1Enable" value="0" />
		<param name="freqSlopeVar" value="0" />
		<param name="idleTimeVar" value="0" />
		<param name="chirpEndIdx" value="2" />
		<param name="chirpStartIdx" value="2" />
	</apiname_chirp_cfg>
	<apiname_frame_cfg>
		<param name="frameCount" value="0" />
		<param name="triggerSelect" value="0" />
		<param name="triggerDelay" value="0" />
		<param name="testSourceEn" value="0" />
		<param name="loopCount" value="16" />
		<param name="fchirpStartIdx" value="0" />
		<param name="periodicity" value="100" />
		<param name="fchirpEndIdx" value="2" />
	</apiname_frame_cfg>
	<apiname_advanceframe_cfg>
		<param name="numOfSubFrames" value="1" />
		<param name="sb3noOfAdcSamples" value="1" />
		<param name="sb4subFramePeriod" value="40" />
		<param name="sb2brustPeriodicity" value="40" />
		<param name="sb1numOfBrust" value="1" />
		<param name="sb2numOfLoops" value="128" />
		<param name="sb4numOfLoops" value="128" />
		<param name="loopBackCfg" value="0" />
		<param name="sb4numOfBrust" value="1" />
		<param name="sb1subFramePeriod" value="40" />
		<param name="numOfFrames" value="0" />
		<param name="sb3numOfBrustLoops" value="1" />
		<param name="sb3chirpStartIdxOffset" value="0" />
		<param name="sb2chirpStartIdx" value="0" />
		<param name="sb3brustPeriodicity" value="40" />
		<param name="sb2numOfBrust" value="1" />
		<param name="sb2noOfAdcSamples" value="1" />
		<param name="sb4noOfAdcSamples" value="1" />
		<param name="sb1numOfChirps" value="1" />
		<param name="sb4chirpStartIdx" value="0" />
		<param name="sb4brustPeriodicity" value="40" />
		<param name="sb1chirpStartIdxOffset" value="0" />
		<param name="sb2chirpStartIdxOffset" value="0" />
		<param name="softwareTrigger" value="1" />
		<param name="sb3numOfBrust" value="1" />
		<param name="sb3subFramePeriod" value="40" />
		<param name="sb3chirpStartIdx" value="0" />
		<param name="sb4numOfBrustLoops" value="1" />
		<param name="sb1numOfBrustLoops" value="1" />
		<param name="sb4forceProfileIdx" value="0" />
		<param name="sb1brustPeriodicity" value="40" />
		<param name="sb3numOfLoops" value="128" />
		<param name="sb3numOfChirps" value="1" />
		<param name="sb1forceProfileIdx" value="0" />
		<param name="frameTriggerDelay" value="0" />
		<param name="sb2numOfChirps" value="1" />
		<param name="sb1chirpStartIdx" value="0" />
		<param name="sb2numOfBrustLoops" value="1" />
		<param name="sb2forceProfileIdx" value="0" />
		<param name="sb2subFramePeriod" value="40" />
		<param name="testSourceEn" value="0" />
		<param name="forceProfileEna" value="0" />
		<param name="sb4chirpStartIdxOffset" value="0" />
		<param name="loopBackCfgSubFrameID" value="3" />
		<param name="sb1noOfAdcSamples" value="1" />
		<param name="sb4numOfChirps" value="1" />
		<param name="sb3forceProfileIdx" value="0" />
		<param name="sb1numOfLoops" value="128" />
		<param name="hardwareTrigger" value="0" />
	</apiname_advanceframe_cfg>
	<apiname_loopbackburst_cfg>
		<param name="bpmTx2Off" value="0" />
		<param name="iflLoopBackMag" value="2" />
		<param name="rfGainTarget" value="0" />
		<param name="psTx1LoopBackFreq" value="0" />
		<param name="tx2En" value="0" />
		<param name="digitalCorrDisable" value="0" />
		<param name="digCorrRxGainPhase" value="0" />
		<param name="tx2BackOff" value="0" />
		<param name="loopBackSelect" value="0" />
		<param name="tx0En" value="0" />
		<param name="baseProfileIndex" value="0" />
		<param name="psTx0LoopBackFreq" value="0" />
		<param name="bpmTx1On" value="0" />
		<param name="bpmTx2On" value="0" />
		<param name="paLoopBackFreq" value="2" />
		<param name="tx1En" value="0" />
		<param name="freqConst" value="77" />
		<param name="busrtIndex" value="0" />
		<param name="tx1BackOff" value="0" />
		<param name="ps1PGAGainIndex" value="23" />
		<param name="tx0BackOff" value="0" />
		<param name="rxGain" value="30" />
		<param name="ps2PGAGainIndex" value="23" />
		<param name="ifLoopBackFreq" value="0" />
		<param name="bpmTx0Off" value="0" />
		<param name="slopeConst" value="0" />
		<param name="bpmTx1Off" value="0" />
		<param name="bpmTx0On" value="0" />
	</apiname_loopbackburst_cfg>
	<apiname_analogmonenable_cfg>
		<param name="tx2BallBreakMonEna" value="0" />
		<param name="rxNoiseMonEna" value="0" />
		<param name="rxIFStageMonEna" value="0" />
		<param name="reservedMonEna" value="0" />
		<param name="tx0BPMMonEna" value="0" />
		<param name="rxIFASaturationMonEna" value="0" />
		<param name="internalGPADCSignalsMonEna" value="0" />
		<param name="tx0BallBreakMonEna" value="0" />
		<param name="internalTX0SignalsMonEna" value="0" />
		<param name="rxGainPhaseMonEna" value="0" />
		<param name="internalTX1SignalsMonEna" value="0" />
		<param name="internalRXSignalsMonEna" value="0" />
		<param name="tx1PowerMonEna" value="0" />
		<param name="rxSigImgBandMonEna" value="0" />
		<param name="temperatureMonEna" value="0" />
		<param name="internalTX2SignalsMonEna" value="0" />
		<param name="txGainPhaseMonEna" value="0" />
		<param name="synthFreqMonEna" value="0" />
		<param name="tx1BPMMonEna" value="0" />
		<param name="tx2BPMMonEna" value="0" />
		<param name="pllControlVolMonEna" value="0" />
		<param name="tx0PowerMonEna" value="0" />
		<param name="externalAnalogSignalsMonEna" value="0" />
		<param name="tx2PowerMonEna" value="0" />
		<param name="tx1BallBreakMonEna" value="0" />
		<param name="rxMixerInputPowerMonEna" value="0" />
		<param name="dccClockFreqMonEna" value="0" />
		<param name="internalPMCLKLOSignalsMonEna" value="0" />
	</apiname_analogmonenable_cfg>
	<apiname_tx0ballbreak_cfg>
		<param name="tx0ReflCoeffMagThreshold" value="90" />
		<param name="tx0BallBreakMonReportingMode" value="0" />
	</apiname_tx0ballbreak_cfg>
	<apiname_tx1ballbreak_cfg>
		<param name="tx1BallBreakMonReportingMode" value="0" />
		<param name="tx1ReflCoeffMagThreshold" value="90" />
	</apiname_tx1ballbreak_cfg>
	<apiname_tx2ballbreak_cfg>
		<param name="tx2BallBreakMonReportingMode" value="0" />
		<param name="tx2ReflCoeffMagThreshold" value="0" />
	</apiname_tx2ballbreak_cfg>
	<apiname_tx0powermon_cfg>
		<param name="tx0PowerRF2" value="1" />
		<param name="tx0PwAbsErrThreshold" value="1" />
		<param name="tx0PowerReportingMode" value="0" />
		<param name="tx0PwFlatnessThreshold" value="0" />
		<param name="tx0PwrMonProfileIndex" value="0" />
		<param name="tx0PowerRF3" value="1" />
		<param name="tx0PowerRF1" value="1" />
	</apiname_tx0powermon_cfg>
	<apiname_tx1powermon_cfg>
		<param name="tx1PowerReportingMode" value="0" />
		<param name="tx1PwrMonProfileIndex" value="0" />
		<param name="tx1PwFlatnessThreshold" value="0" />
		<param name="tx1PowerRF1" value="1" />
		<param name="tx1PowerRF2" value="1" />
		<param name="tx1PwAbsErrThreshold" value="1" />
		<param name="tx1PowerRF3" value="1" />
	</apiname_tx1powermon_cfg>
	<apiname_tx2powermon_cfg>
		<param name="tx2PwrMonProfileIndex" value="0" />
		<param name="tx2PwFlatnessThreshold" value="0" />
		<param name="tx2PowerRF3" value="1" />
		<param name="tx2PwAbsErrThreshold" value="1" />
		<param name="tx2PowerRF2" value="1" />
		<param name="tx2PowerReportingMode" value="0" />
		<param name="tx2PowerRF1" value="1" />
	</apiname_tx2powermon_cfg>
	<apiname_tx0bpmmon_cfg>
		<param name="tx0BPMPhaseMonErrorThreshold" value="0" />
		<param name="tx0BPMPhaseMonReportMode" value="0" />
		<param name="tx0BPMMonRx3" value="1" />
		<param name="tx0BPMMonRx2" value="1" />
		<param name="tx0BPMMonRx0" value="1" />
		<param name="tx0BPMMonRx1" value="1" />
		<param name="tx0BPMPhaseMonProfileIndex" value="0" />
		<param name="tx0BPMAmplitudeMonErrorThreshold" value="0" />
	</apiname_tx0bpmmon_cfg>
	<apiname_tx1bpmmon_cfg>
		<param name="tx1BPMMonRx3" value="1" />
		<param name="tx1BPMMonRx1" value="1" />
		<param name="tx1BPMPhaseMonProfileIndex" value="0" />
		<param name="tx1BPMAmplitudeMonErrorThreshold" value="0" />
		<param name="tx1BPMPhaseMonReportMode" value="0" />
		<param name="tx1BPMMonRx2" value="1" />
		<param name="tx1BPMMonRx0" value="1" />
		<param name="tx1BPMPhaseMonErrorThreshold" value="0" />
	</apiname_tx1bpmmon_cfg>
	<apiname_tx2bpmmon_cfg>
		<param name="tx2BPMPhaseMonErrorThreshold" value="0" />
		<param name="tx2BPMMonRx3" value="1" />
		<param name="tx2BPMPhaseMonReportMode" value="0" />
		<param name="tx2BPMMonRx1" value="1" />
		<param name="tx2BPMPhaseMonProfileIndex" value="0" />
		<param name="tx2BPMMonRx2" value="1" />
		<param name="tx2BPMMonRx0" value="1" />
		<param name="tx2BPMAmplitudeMonErrorThreshold" value="0" />
	</apiname_tx2bpmmon_cfg>
	<apiname_txgainphasemismatchmon_cfg>
		<param name="rf3TX2TXGainPhaseMismatchOffVal" value="0" />
		<param name="txGainPhaseMismatchMonRx3" value="1" />
		<param name="txGainPhaseMismatchMonRx2" value="1" />
		<param name="txGainPhaseMismatchMonRx1" value="1" />
		<param name="txGainPhaseMismatchMonRx0" value="1" />
		<param name="rf3TX2TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TX2TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf1TX1TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf2TX2TXPhaseMismatchOffVal" value="0" />
		<param name="txGainPhaseMismacthMonTxPhaseMismatchThreshold" value="0" />
		<param name="rf1TX0TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TXGainPhaseMismatchMonBitMask" value="1" />
		<param name="txGainPhaseMismacthMonTxGainMismatchThreshold" value="0" />
		<param name="rf1TX1TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TX0TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf3TXGainPhaseMismatchMonBitMask" value="1" />
		<param name="rf3TX1TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf3TX1TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TX1TXPhaseMismatchOffVal" value="0" />
		<param name="rf2TX1TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf1TX2TXGainPhaseMismatchOffVal" value="0" />
		<param name="rf3TX0TXPhaseMismatchOffVal" value="0" />
		<param name="rf1TXGainPhaseMismatchMonBitMask" value="1" />
		<param name="rf1TX2TXPhaseMismatchOffVal" value="0" />
		<param name="rf3TX0TXGainPhaseMismatchOffVal" value="0" />
		<param name="txGainPhaseMismacthMonReportingMode" value="0" />
		<param name="tx1GainPhaseMismatchMon" value="1" />
		<param name="tx0GainPhaseMismatchMon" value="1" />
		<param name="txGainPhaseMismacthMonProfileIndex" value="0" />
		<param name="tx2GainPhaseMismatchMon" value="1" />
		<param name="rf2TX0TXPhaseMismatchOffVal" value="0" />
		<param name="rf1TX0TXGainPhaseMismatchOffVal" value="0" />
	</apiname_txgainphasemismatchmon_cfg>
	<apiname_analogfaultinjection_cfg>
		<param name="rxIFStageRx2" value="0" />
		<param name="txGainInvTx2BPMVal" value="0" />
		<param name="rxPhaseInvRx0" value="0" />
		<param name="rxLOAmpRx2Rx3" value="0" />
		<param name="txGainInvTx1BPMVal" value="0" />
		<param name="rxHighNoiseRx2" value="0" />
		<param name="rxHighNoiseRx1" value="0" />
		<param name="ldoRxLODistFault" value="0" />
		<param name="txLOAmpTx2" value="0" />
		<param name="rxGainDropRx3" value="0" />
		<param name="synthFreqMonOffset" value="0" />
		<param name="rxGainDropRx1" value="0" />
		<param name="rxGainDropRx0" value="0" />
		<param name="rxHighNoiseRx3" value="0" />
		<param name="gpadcIntSigMon" value="0" />
		<param name="txGainInvTxFault" value="0" />
		<param name="txLOAmpTx0Tx1" value="0" />
		<param name="txGainInvTx0BPMVal" value="0" />
		<param name="txGainDropTx1" value="0" />
		<param name="txGainDropTx0" value="0" />
		<param name="rxIFStageRx1" value="0" />
		<param name="txGainDropTx2" value="0" />
		<param name="rxGainDropRx2" value="0" />
		<param name="rxPhaseInvRx2" value="0" />
		<param name="rxIFStageRx3" value="0" />
		<param name="rxLOAmpRx0Rx1" value="0" />
		<param name="rxHighNoiseRx0" value="0" />
		<param name="rxIFStageRx0" value="0" />
		<param name="synthVCOOpenLoop" value="0" />
		<param name="extAnaSigMon" value="0" />
		<param name="rxPhaseInvRx1" value="0" />
		<param name="gpadcClkFreqFault" value="0" />
		<param name="rxPhaseInvRx3" value="0" />
	</apiname_analogfaultinjection_cfg>
	<apiname_rxgainphasemon_cfg>
		<param name="rf3RX0RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX1RXPhaseMismatchOffVal" value="0" />
		<param name="rf1RX3RXGainMismatchOffVal" value="0" />
		<param name="rf3RX2RXGainMismatchOffVal" value="0" />
		<param name="rf2RX3RXGainMismatchOffVal" value="0" />
		<param name="rxGainPhaseReprotingMode" value="0" />
		<param name="rxPhaseMismatchThreshold" value="0" />
		<param name="rf1RX2RXPhaseMismatchOffVal" value="0" />
		<param name="rf2RX1RXGainMismatchOffVal" value="0" />
		<param name="rf1RX1RXGainMismatchOffVal" value="0" />
		<param name="rf2RX2RXPhaseMismatchOffVal" value="0" />
		<param name="rf2RX3RXPhaseMismatchOffVal" value="0" />
		<param name="rf2RX2RXGainMismatchOffVal" value="0" />
		<param name="rf2RX0RXGainMismatchOffVal" value="0" />
		<param name="rf2RXGainPhaseMonBitMask" value="1" />
		<param name="rf1RX0RXGainMismatchOffVal" value="0" />
		<param name="rf1RXGainPhaseMonBitMask" value="1" />
		<param name="rxGainFlatnessErrThreshold" value="0" />
		<param name="rxGainMismatchThresholds" value="0" />
		<param name="rf1RX0RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX2RXPhaseMismatchOffVal" value="0" />
		<param name="rf1RX2RXGainMismatchOffVal" value="0" />
		<param name="rf1RX1RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX3RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX3RXGainMismatchOffVal" value="0" />
		<param name="rf2RX0RXPhaseMismatchOffVal" value="0" />
		<param name="rf2RX1RXPhaseMismatchOffVal" value="0" />
		<param name="rxGainPhaseMonTxSelect" value="0" />
		<param name="rxGainPhaseMonProfileIndex" value="0" />
		<param name="rf3RX0RXGainMismatchOffVal" value="0" />
		<param name="rxGainPhaseAbsErrThreshold" value="0" />
		<param name="rf3RXGainPhaseMonBitMask" value="1" />
		<param name="rf1RX3RXPhaseMismatchOffVal" value="0" />
		<param name="rf3RX1RXGainMismatchOffVal" value="0" />
	</apiname_rxgainphasemon_cfg>
	<apiname_rxnoisefiguremon_cfg>
		<param name="rf1RXNoiseMon" value="1" />
		<param name="rxNoiseFigureReportingMode" value="0" />
		<param name="rf3RXNoiseMon" value="1" />
		<param name="rf2RXNoiseMon" value="1" />
		<param name="rxNoiseFigureThreshold" value="0" />
		<param name="rxNoiseMonProfileIndex" value="0" />
	</apiname_rxnoisefiguremon_cfg>
	<apiname_rxifstagemon_cfg>
		<param name="rxIFStageReportingMode" value="0" />
		<param name="rxIFStageMonProfileIndex" value="0" />
		<param name="rxIFStageLPFCuttoffFreqErrThreshold" value="0" />
		<param name="rxIFStageHPFCuttoffFreqErrThreshold" value="0" />
		<param name="rxIFStageIFAGainErrThreshold" value="0" />
	</apiname_rxifstagemon_cfg>
	<apiname_rxsaturationdetectormon_cfg>
		<param name="rxSatDetectorMonSatMonNumSlice" value="121" />
		<param name="rxSatDetectorSatMonSelect" value="0" />
		<param name="rxSatDetectorMonSatMonRxChannelMask" value="0" />
		<param name="rxSatDetectorMonPriTimeSliceDuration" value="11" />
		<param name="rxSatDetectorMonProfileIndex" value="0" />
	</apiname_rxsaturationdetectormon_cfg>
	<apiname_rxsignalandimagemon_cfg>
		<param name="sigImgMonNumSlice" value="111" />
		<param name="sigImgMonPriTimeSliceNumSamples" value="4" />
		<param name="sigImgMonProfileIndex" value="0" />
	</apiname_rxsignalandimagemon_cfg>
	<apiname_rxmixerinputpowermon_cfg>
		<param name="rxMixerIpPowMonMinThresholds" value="0" />
		<param name="rxMixerIpPowMonProfielIdnex" value="0" />
		<param name="rxMixerIpPowMonMaxThresholds" value="0" />
		<param name="rxMixerIpPowMonReportingMode" value="0" />
		<param name="rxMixerIpPowMonTx2Ena" value="0" />
		<param name="rxMixerIpPowMonTx0Ena" value="0" />
		<param name="rxMixerIpPowMonTx1Ena" value="0" />
	</apiname_rxmixerinputpowermon_cfg>
	<apiname_rxtemperaturemon_cfg>
		<param name="tempMonDigTempThreshMax" value="0" />
		<param name="tempMonTempDiffThresh" value="0" />
		<param name="tempMonDigTempThreshMin" value="0" />
		<param name="tempMonAnaTempThreshMin" value="0" />
		<param name="tempMonAnaTempThreshMax" value="0" />
		<param name="tempMonReportingMode" value="0" />
	</apiname_rxtemperaturemon_cfg>
	<apiname_rxsynthfreqerrormon_cfg>
		<param name="synthFrequencyMonStartTime" value="2.0" />
		<param name="synthFrequencyMonReportingMode" value="0" />
		<param name="synthFrequencyProfileIndex" value="0" />
		<param name="synthFrequencyMonFreqErrorThreshold" value="4000" />
	</apiname_rxsynthfreqerrormon_cfg>
	<apiname_rxextanalogsignalmon_cfg>
		<param name="extAnalogSigMonSigSettlingTimeAnaTest4" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaVSense" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaTest4" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaTest3" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaTest2" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaTest4" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaTest2" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaVSense" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaVSense" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaTest4" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaTest2" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaTest3" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaMux" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaMux" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaTest2" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaTest1" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaMux" value="0" />
		<param name="extAnalogSigMonReportingMode" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaTest4" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaTest3" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaMux" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaTest3" value="0" />
		<param name="extAnalogSigMonSigBufEnaAnaTest1" value="0" />
		<param name="extAnalogSigMonSigThresholdMaxAnaTest3" value="0" />
		<param name="extAnalogSigMonSigIPEnaVSense" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaMux" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaTest1" value="0" />
		<param name="extAnalogSigMonSigIPEnaAnaTest2" value="0" />
		<param name="extAnalogSigMonSigSettlingTimeAnaTest1" value="0" />
		<param name="extAnalogSigMonSigThresholdMinAnaTest1" value="0" />
	</apiname_rxextanalogsignalmon_cfg>
	<apiname_tx0intanalogsignalmon_cfg>
		<param name="tx0IntAnalogSigMonReportingMode" value="0" />
		<param name="tx0IntAnalogSigMonProfileIndex" value="0" />
	</apiname_tx0intanalogsignalmon_cfg>
	<apiname_tx1intanalogsignalmon_cfg>
		<param name="tx1IntAnalogSigMonReportingMode" value="0" />
		<param name="tx1IntAnalogSigMonProfileIndex" value="0" />
	</apiname_tx1intanalogsignalmon_cfg>
	<apiname_tx2intanalogsignalmon_cfg>
		<param name="tx2IntAnalogSigMonReportingMode" value="0" />
		<param name="tx2IntAnalogSigMonProfileIndex" value="0" />
	</apiname_tx2intanalogsignalmon_cfg>
	<apiname_rxintanalogsignalmon_cfg>
		<param name="rxIntAnalogSigMonProfileIndex" value="0" />
		<param name="rxIntAnalogSigMonReportingMode" value="0" />
	</apiname_rxintanalogsignalmon_cfg>
	<apiname_pmclklointanalogsignalmon_cfg>
		<param name="pmCLKLOIntAnalogSigMonReportingMode" value="0" />
		<param name="pmCLKLOIntAnalogSigMonProfileIndex" value="0" />
	</apiname_pmclklointanalogsignalmon_cfg>
	<apiname_gpadcintanalogsignalmon_cfg>
		<param name="gpadcIntAnalogSigMonReportingMode" value="0" />
	</apiname_gpadcintanalogsignalmon_cfg>
	<apiname_pllcontrolvoltagemon_cfg>
		<param name="pllCtlVolMonSynthVCO2VolControl" value="0" />
		<param name="pllCtlVolMonReportingMode" value="0" />
		<param name="pllCtlVolMonSynthVCO1VolControl" value="0" />
		<param name="pllCtlVolMonAPLLVctl" value="0" />
	</apiname_pllcontrolvoltagemon_cfg>
	<apiname_dccmon_cfg>
		<param name="dccMonClockPair4" value="0" />
		<param name="dccMonClockPair0" value="0" />
		<param name="dccMonClockPair5" value="0" />
		<param name="dccMonReportingMode" value="0" />
		<param name="dccMonClockPair1" value="0" />
		<param name="dccMonClockPair3" value="0" />
		<param name="dccMonClockPair2" value="0" />
	</apiname_dccmon_cfg>
</configuration>

Regards,
user5205609

0 Michelle Liu over 7 years ago in reply to user5205609

TI__Genius 11405 points

Hi,

From the log, I can see the error is that there is no Ethernet connection:

[11:21:55] ConnectRFDCCard Status: RFDCCARD_UDP_WRITE_ERR

[11:21:55] Ethernet Cable is disconnected Please check.....!!!

[11:22:18] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", 1)

[11:22:18] [RadarAPI]: Status: Failed, Error Type: RFDCCARD_UDP_WRITE_ERR

One possible reason for that is the firewall setting needs to be configured. Either firewall needs to be disabled or the mmwave studio Ethernet access needs to be enabled.

Thanks and Regards,

Michelle

0 user5205609 over 7 years ago in reply to Michelle Liu

Intellectual 960 points

Hi,

Thank you very much.Please excuse my late reply,due to Typhoon Jebi.

I disconnect the Wi-Fi network (Internet) and disable the firewall.
Then I confirme that Ethernet was connected with Windows network properties,
and performe the same procedure.

But the result is the same error .

"SetUp DCA1000" success without the error only when I press this button
before "2.Coonection Tab Set (1)".
After "SetUp DCA1000",I push twice "Connect,Rest and" .Because the periphery of the button was blue,
and when I push only once "Error Occured in port close" displayed in black caractors.

But from the answer below, I think that it may be not a correct procedure.

e2e.ti.com/.../720631

Is there something wrong with my procedure to press the button?

Regards,
user5205609

0 Michelle Liu over 7 years ago in reply to user5205609

TI__Genius 11405 points

Hi,

The correct procedure is:
Press through the button on the following page:
Connection
Static Config
DataConfig
SensorConfig

For sensor config, follow mmwave studio user's guide page 22 to 25, especially Figure 9.1. Note in figure 9.1, after step 4 -- pressing "Setup DCA1000", just click once "Connect" button. At the same time, check if there is Ethernet error showing in the output window.

Let me know if you still have problems. Thanks!

Regards,
Michelle

0 user5205609 over 7 years ago in reply to Michelle Liu

Intellectual 960 points

Hi,

Thank you very much.

When I pressed the buttons in the specified order, a red character error occurred when I pressed the figure button.

I attach the log copy.

Fullscreen GM_Constructor.txt Download

GM: Constructor
GM: Wed Sep 12 11:51:28 2018
RSTD.Transmit("/Settings")
[11:51:28]
[11:51:28]  ### Running Startup script: "C:\ti\mmwave_studio_01_00_00_00\mmWaveStudio\Scripts\Startup.lua" ###
[11:51:28]  RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[11:51:28]  RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[11:51:28]  Scripter ignored: Attempt to UnBuild() again or before Build.
[11:51:28]  RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
[11:51:28]  RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[11:51:28]  RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[11:51:28]  RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[11:51:28]  RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[11:51:28]  RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[11:51:28]  RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\RunTime\\SAL.dll")
[11:51:28]  RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[11:51:28]  RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[11:51:28]  RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[11:51:28]  RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[11:51:28]  RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[11:51:28]  RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[11:51:28]  RSTD.Transmit("/")
[11:51:28]  RSTD.SaveSettings(): Settings saved to "C:\Users\omron\AppData\Roaming\RSTD\config.xml"
[11:51:28]  RSTD.Build()
[11:51:28]  RSTD.SaveSettings(): Settings saved to "C:\Users\omron\AppData\Roaming\RSTD\config.xml"
[11:51:28]  RSTD.Transmit("/")
[11:51:28]  RSTD.AL_Build()
[11:51:28]  RSTD.AL_LoadXml()
[11:51:28]  RSTD.Transmit("/")
[11:51:28]  RSTD.AL_Init()
[11:51:28]  RSTD.Clients_Build()
[11:51:28]  GM: Init
[11:51:28]  GM: Loaded 'C:\ti\mmwave_studio_01_00_00_00\mmWaveStudio\Clients\\LabClient.dll'
[11:51:28]  GM: 1 Guest (s) init
[11:51:28]  GM: 1 Module(s) init
[11:51:28]  GM: 2 Tab   (s) init
[11:51:28]  RSTD.Client_LoadXml()
[11:51:29]  [RadarAPI]: Starting Matlab Engine..
[11:51:32]  [RadarAPI]: Matlab Engine Started!
[11:51:37]  [RadarAPI]: ar1.LoadSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[11:51:37]  TESTING = false
[11:51:37]
[11:51:37]  ***Script completed successfully.***
[11:56:36]  [RadarAPI]: Opening Gpio Control Port()
[11:56:36]  [RadarAPI]: Status: Passed
[11:56:37]  [RadarAPI]: Opening Board Control Port()
[11:56:37]  [RadarAPI]: Status: Passed
[11:56:38]  [RadarAPI]: ar1.FullReset()
[11:56:38]  [RadarAPI]: Status: Passed
[11:56:38]  [RadarAPI]: Closing Board Control Port()
[11:56:38]  [RadarAPI]: Status: Passed
[11:56:39]  [RadarAPI]: Closing Gpio Control Port()
[11:56:39]  [RadarAPI]: Status: Passed
[11:56:39]  [RadarAPI]: ar1.SOPControl(2)
[11:56:39]  [RadarAPI]: Status: Passed
[11:57:02]  [RadarAPI]: ar1.Connect(9,921600,1000)
[11:57:05]  [RadarAPI]: Warning: Connected with baudrate 115200
[11:57:06]  [RadarAPI]: Warning: Disconnected existing BaudRate
[11:57:06]  [RadarAPI]: Warning: Trying to connect with baudrate 921600
[11:57:07]  [RadarAPI]: ar1.Calling_IsConnected()
[11:57:08]  [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[11:57:08]  [RadarAPI]: Status: Passed
[11:57:09]  [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[11:57:09]  [RadarAPI]: Status: Passed
[11:57:10]  [RadarAPI]: ar1.SaveSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[11:57:16]  [RadarAPI]: ar1.ReadRegister(0xffffe210, 0, 31)
[11:57:16]  [RadarAPI]: Value : 100001
[11:57:17]  [RadarAPI]: ar1.ReadRegister(0xffffe218, 0, 31)
[11:57:17]  [RadarAPI]: Value : 12
[11:57:17]  [RadarAPI]: ar1.DownloadBSSFw("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\..\\rf_eval_firmware\\radarss\\xwr12xx_xwr14xx_radarss_ES2.0.bin")
[11:57:17]  [RadarAPI]: Downloading BSS ROM Legacy Binary..
[11:57:23]  BSS FW Download Success
[11:57:25]  [RadarAPI]: ar1.DownloadMSSFw("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\..\\rf_eval_firmware\\masterss\\xwr12xx_xwr14xx_masterss_ES2.0.bin")
[11:57:25]  [RadarAPI]: Downloading MSS Legacy Binary..
[11:57:29]  MSS FW Download Success
[11:57:31]  [RadarAPI]: ar1.PowerOn(0, 1000, 0, 0)
[11:57:31]  [RadarAPI]: Status: Passed
[11:57:31]  MSS power up done async event received!
[11:57:31]  [RadarAPI]: ar1.SaveSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[11:57:31]  Power On Success
[11:57:32]  BSS power up done async event received!
[11:57:32]  [RadarAPI]: ar1.RfEnable()
[11:57:32]  [RadarAPI]: Status: Passed
[11:57:34]  RF Enable Success
[11:57:35]  [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 0, 1, 1, 1, 1, 2, 1, 0)
[11:57:35]  [RadarAPI]: Status: Passed
[11:57:35]  ChanNAdcConfig Success
[11:57:36]  [RadarAPI]: ar1.LPModConfig(0, 0)
[11:57:36]  [RadarAPI]: Status: Passed
[11:57:36]  Regualar mode Cfg Success
[11:57:38]  [RadarAPI]: ar1.RfInit()
[11:57:38]  RF Init async event received!
[11:57:38]  [RadarAPI]: Time stamp, Temperture: 5851,31; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:57:38]  [RadarAPI]: Status: Passed
[11:57:38]  RfInit Success
[11:57:39]  [RadarAPI]: ar1.DataPathConfig(1, 1, 0)
[11:57:39]  [RadarAPI]: Status: Passed
[11:57:39]  DataPathConfig Success
[11:57:40]  [RadarAPI]: ar1.LvdsClkConfig(1, 1)
[11:57:41]  [RadarAPI]: Status: Passed
[11:57:41]  LvdsClkConfig Success
[11:57:42]  [RadarAPI]: ar1.LVDSLaneConfig(0, 1, 1, 1, 1, 1, 0, 0)
[11:57:42]  [RadarAPI]: Status: Passed
[11:57:42]  LVDSLaneConfig Success
[11:57:43]  [RadarAPI]: ar1.ProfileConfig(0, 77, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 0, 30)
[11:57:43]  [RadarAPI]: Status: Passed
[11:57:43]  ProfileConfig Success
[11:57:44]  [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 1, 0)
[11:57:44]  [RadarAPI]: Status: Passed
[11:57:44]  ChirpConfig Success
[11:57:45]  [RadarAPI]: ar1.DisableTestSource(0)
[11:57:45]  [RadarAPI]: Status: Passed
[11:57:45]  [RadarAPI]: ar1.FrameConfig(0, 0, 8, 128, 40, 0, 1)
[11:57:45]  [RadarAPI]: Status: Passed
[11:57:45]  FrameConfig Success
[11:57:46]  [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[11:57:46]  [RadarAPI]: passed
[11:57:46]  SelectCaptureDevice Success
[11:57:47]  [RadarAPI]: StatusDCCard Event Registered
[11:57:47]  [RadarAPI]: Status: Passed
[11:57:47]  [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[11:57:47]  [RadarAPI]: Status: Passed
[11:57:47]  [RadarAPI]: SYSTEM_CONNECT_CMD_CODE Async event recieved(9)
[11:57:48]  [RadarAPI]: ConnectRFDCCard Status: Passed
[11:57:48]  [RadarAPI]: Status: Passed
[11:57:48]  [RadarAPI]: READ_FPGA_VERSION_CMD_CODE event recieved(14)
[11:57:48]  [RadarAPI]: Status: Passed
[11:57:48]  CaptureCardConfig_EthInit Success
[11:57:49]  [RadarAPI]: ar1.ConfigureRFDCCardMode(1, 1, 1, 2, 3, 0)
[11:57:49]  [RadarAPI]: Status: Passed
[11:57:49]  [RadarAPI]: CONFIG_FPGA_GEN_CMD_CODE Async event recieved(3)
[11:57:49]  CaptureCardConfig_Mode Success
[11:57:50]  [RadarAPI]: ar1.CaptureCardConfig_PacketDelay(25)
[11:57:50]  [RadarAPI]: Status: Passed
[11:57:50]  [RadarAPI]: CONFIG_PACKET_DATA_CMD_CODE Async event recieved(11)
[11:57:50]  CaptureCardConfig_PacketDelay Success
[11:57:51]  [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", 1)
[11:57:51]  [RadarAPI]: Status: Passed
[11:57:51]  [RadarAPI]: RECORD_START_CMD_CODE Async event recieved(5)
[11:57:52]  [RadarAPI]: ar1.StartFrame()
[11:57:52]  [RadarAPI]: RECORD_PKT_OUT_OF_SEQ_ERROR_CODE Async event recieved(195)
[11:57:52]  [RadarAPI]: RECORD_PKT_OUT_OF_SEQ_ERROR_CODE Async event recieved(195)
[11:57:52]  [RadarAPI]: RECORD_PKT_OUT_OF_SEQ_ERROR_CODE Async event recieved(195)
[11:57:52]  [RadarAPI]: Status: Passed
[11:57:52]  Frame start async event received!
[11:57:52]  [RadarAPI]: Frame Ended
[11:57:52]  Frame End async event received!
[11:57:54]  Please wait for a few seconds for Packet reorder utility processing .....!!!!
[11:57:54]  [RadarAPI]: Packet Reorder Utility Started...please wait...
[11:57:54]  [RadarAPI]: ar1.PacketReorderZeroFill("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data_Raw_0.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\pktlogfile.txt")
[11:57:54]  [RadarAPI]: STS_RECORD_COMPLETED Async event recieved(8)
[11:57:54]  [RadarAPI]: ar1.CaptureCardConfig_StopRecord()
[11:57:54]  [RadarAPI]: Status: Passed
[11:57:54]  [RadarAPI]: RECORD_STOP_CMD_CODE Async event recieved(6)
[11:57:59]  [RadarAPI]: Packet Reorder Utility process completed!
[11:57:59]  Reordering required : YES
[11:57:59]  Packet loss : NO
[11:57:59]  Number of packets received : 2879
[11:57:59]  Number of zero filled packets : 0
[11:57:59]  Number of zero filled bytes : 0
[11:58:09]  Packet reorder utility processing done.....!!!!
[11:58:09]  Please wait for a few seconds for matlab post processing .....!!!!
[11:58:09]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin")
[11:58:19]
[11:58:19]  ***Script completed successfully.***
[11:58:39]  [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 1, 1, 1, 1, 1, 2, 1, 0)
[11:58:39]  [RadarAPI]: Status: Passed
[11:58:42]  [RadarAPI]: ar1.LPModConfig(0, 0)
[11:58:42]  [RadarAPI]: Status: Passed
[11:58:45]  [RadarAPI]: ar1.RfInit()
[11:58:45]  RF Init async event received!
[11:58:45]  [RadarAPI]: Status: Passed
[11:58:45]  [RadarAPI]: Time stamp, Temperture: 72228,36; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:58:52]  [RadarAPI]: ar1.DataPathConfig(1, 1, 0)
[11:58:52]  [RadarAPI]: Status: Passed
[11:58:54]  [RadarAPI]: ar1.LvdsClkConfig(1, 1)
[11:58:54]  [RadarAPI]: Status: Passed
[11:58:56]  [RadarAPI]: ar1.LVDSLaneConfig(0, 1, 1, 1, 1, 1, 0, 0)
[11:58:56]  [RadarAPI]: Status: Passed
[11:59:01]  [RadarAPI]: ar1.ProfileConfig(0, 77, 15, 7, 114, 0, 0, 0, 0, 0, 0, 35.003, 1, 224, 2107, 0, 0, 30)
[11:59:01]  [RadarAPI]: Status: Passed
[11:59:06]  [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 0, 0)
[11:59:06]  [RadarAPI]: Status: Passed
[11:59:13]  [RadarAPI]: ar1.ChirpConfig(1, 1, 0, 0, 0, 0, 0, 0, 1, 0)
[11:59:13]  [RadarAPI]: Status: Passed
[11:59:18]  [RadarAPI]: ar1.ChirpConfig(2, 2, 0, 0, 0, 0, 0, 0, 0, 1)
[11:59:18]  [RadarAPI]: Status: Passed
[11:59:30]  [RadarAPI]: ar1.DisableTestSource(0)
[11:59:30]  [RadarAPI]: Status: Passed
[11:59:30]  [RadarAPI]: ar1.FrameConfig(0, 2, 0, 16, 100, 0, 1)
[11:59:30]  [RadarAPI]: Status: Passed
[11:59:49]  [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[11:59:49]  [RadarAPI]: passed
[11:59:55]  [RadarAPI]: StatusDCCard Event Registered
[11:59:55]  [RadarAPI]: Status: Passed
[11:59:55]  [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[11:59:57]  ConnectRFDCCard Status: RFDCCARD_UDP_WRITE_ERR
[11:59:57]  Ethernet Cable is disconnected Please check.....!!!

The LAN cable is connected ,and it is not disconnected.

Regards,
user5205609

0 Michelle Liu over 7 years ago in reply to user5205609

TI__Genius 11405 points

Hi,

To confirm, by pressing the Connect button, you can successfully connect to DCA1000. No Ethernet issue now. Correct?
The new error is when you press the "Trigger Frame" button:
[11:57:52] [RadarAPI]: ar1.StartFrame()
[11:57:52] [RadarAPI]: RECORD_PKT_OUT_OF_SEQ_ERROR_CODE Async event recieved(195)

Is this right?
Please confirm.

Thanks and Regards,
Michelle

0 user5205609 over 7 years ago in reply to Michelle Liu

Intellectual 960 points

Thank you very much.

>To confirm, by pressing the Connect button, you can successfully connect to DCA1000. No Ethernet issue now. Correct?
Yes,at the case of "Aug 31, 2018 11:31 AM" in Coonection Tab,I push Set(1),　Connect(2) and Run,sueccessfly.
And success to capture data.
At the case "Sep 11, 2018 5:19 AM",not yet capture,but there isn't Ethernet error.

>The new error is when you press the "Trigger Frame" button:
>[11:57:52] [RadarAPI]: ar1.StartFrame()
>[11:57:52] [RadarAPI]: RECORD_PKT_OUT_OF_SEQ_ERROR_CODE Async event recieved(195)
No,when I pushed the button "Connect Reset and" in the dialoh box.This Error.Not "Trigger Frame".

Regards,
user5205609

0 Michelle Liu over 7 years ago in reply to user5205609

TI__Genius 11405 points

Hi,

For the first "connect", I didn't mean on the connection tab of mmwave studio. I was talking about the "connect" button of the DCA1000 window (RFdatacapturecard window). From those lines:
[11:57:48] [RadarAPI]: READ_FPGA_VERSION_CMD_CODE event recieved(14)
[11:57:48] [RadarAPI]: Status: Passed
[11:57:48] CaptureCardConfig_EthInit Success
It shows you've pressed the connect button it works.
This connect button should be only pressed, then it should show "Disconnected".

Does this make sense to you?
Thanks and Regards,
Michelle

0 user5205609 over 7 years ago in reply to Michelle Liu

Intellectual 960 points

Hi,

Thank you very much.

For easy,I write a comment that followed the step in the log. "★" is a comment.

Fullscreen GM_Constructor_order_comment.txt Download

GM: Constructor
GM: Thu Sep 13 11:14:00 2018
RSTD.Transmit("/Settings")
[11:14:00]
[11:14:00]  ### Running Startup script: "C:\ti\mmwave_studio_01_00_00_00\mmWaveStudio\Scripts\Startup.lua" ###
[11:14:00]  RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[11:14:00]  RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[11:14:00]  Scripter ignored: Attempt to UnBuild() again or before Build.
[11:14:00]  RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
[11:14:00]  RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[11:14:00]  RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[11:14:00]  RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[11:14:00]  RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[11:14:00]  RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[11:14:00]  RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\RunTime\\SAL.dll")
[11:14:00]  RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[11:14:00]  RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[11:14:00]  RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[11:14:00]  RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[11:14:00]  RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[11:14:00]  RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[11:14:00]  RSTD.Transmit("/")
[11:14:00]  RSTD.SaveSettings(): Settings saved to "C:\Users\omron\AppData\Roaming\RSTD\config.xml"
[11:14:00]  RSTD.Build()
[11:14:00]  RSTD.SaveSettings(): Settings saved to "C:\Users\omron\AppData\Roaming\RSTD\config.xml"
[11:14:00]  RSTD.Transmit("/")
[11:14:00]  RSTD.AL_Build()
[11:14:00]  RSTD.AL_LoadXml()
[11:14:00]  RSTD.Transmit("/")
[11:14:00]  RSTD.AL_Init()
[11:14:00]  RSTD.Clients_Build()
[11:14:00]  GM: Init
[11:14:00]  GM: Loaded 'C:\ti\mmwave_studio_01_00_00_00\mmWaveStudio\Clients\\LabClient.dll'
[11:14:00]  GM: 1 Guest (s) init
[11:14:00]  GM: 1 Module(s) init
[11:14:00]  GM: 2 Tab   (s) init
[11:14:00]  RSTD.Client_LoadXml()
[11:14:00]  [RadarAPI]: Starting Matlab Engine..
[11:14:02]  [RadarAPI]: Matlab Engine Started!
[11:14:06]  [RadarAPI]: ar1.LoadSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[11:14:06]  TESTING = false
[11:14:06]
[11:14:06]  ***Script completed successfully.***
��mmWave Studio start opration end.

��Set(1) in Connection tab
[11:15:35]  [RadarAPI]: Opening Gpio Control Port()
[11:15:35]  [RadarAPI]: Status: Passed
[11:15:35]  [RadarAPI]: Opening Board Control Port()
[11:15:35]  [RadarAPI]: Status: Passed
[11:15:36]  [RadarAPI]: ar1.FullReset()
[11:15:36]  [RadarAPI]: Status: Passed
[11:15:37]  [RadarAPI]: Closing Board Control Port()
[11:15:37]  [RadarAPI]: Status: Passed
[11:15:37]  [RadarAPI]: Closing Gpio Control Port()
[11:15:37]  [RadarAPI]: Status: Passed
[11:15:37]  [RadarAPI]: ar1.SOPControl(2)
[11:15:37]  [RadarAPI]: Status: Passed

��Connect(2) in Connection tab
  The Button Changed to "Disconnect(2)"
[11:16:19]  [RadarAPI]: ar1.Connect(9,921600,1000)
[11:16:22]  [RadarAPI]: Warning: Connected with baudrate 115200
[11:16:23]  [RadarAPI]: Warning: Disconnected existing BaudRate
[11:16:23]  [RadarAPI]: Warning: Trying to connect with baudrate 921600
[11:16:24]  [RadarAPI]: ar1.Calling_IsConnected()
[11:16:25]  [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[11:16:25]  [RadarAPI]: Status: Passed
[11:16:26]  [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[11:16:26]  [RadarAPI]: Status: Passed
[11:16:26]  [RadarAPI]: ar1.SaveSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')

��Push "Run!" bottom of Connection tab
[11:17:46]  [RadarAPI]: ar1.ReadRegister(0xffffe210, 0, 31)
[11:17:46]  [RadarAPI]: Value : 100001
[11:17:46]  [RadarAPI]: ar1.ReadRegister(0xffffe218, 0, 31)
[11:17:46]  [RadarAPI]: Value : 12
[11:17:46]  [RadarAPI]: ar1.DownloadBSSFw("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\..\\rf_eval_firmware\\radarss\\xwr12xx_xwr14xx_radarss_ES2.0.bin")
[11:17:47]  [RadarAPI]: Downloading BSS ROM Legacy Binary..
[11:17:53]  BSS FW Download Success
[11:17:55]  [RadarAPI]: ar1.DownloadMSSFw("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\..\\rf_eval_firmware\\masterss\\xwr12xx_xwr14xx_masterss_ES2.0.bin")
[11:17:55]  [RadarAPI]: Downloading MSS Legacy Binary..
[11:17:59]  MSS FW Download Success
[11:18:01]  [RadarAPI]: ar1.PowerOn(0, 1000, 0, 0)
[11:18:01]  [RadarAPI]: Status: Passed
[11:18:01]  MSS power up done async event received!
[11:18:01]  [RadarAPI]: ar1.SaveSettings('C:\Users\omron\AppData\Roaming\RSTD\ar1gui.ini')
[11:18:01]  Power On Success
[11:18:02]  [RadarAPI]: ar1.RfEnable()
[11:18:02]  BSS power up done async event received!
[11:18:02]  [RadarAPI]: Status: Passed
[11:18:03]  RF Enable Success
[11:18:04]  [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 0, 1, 1, 1, 1, 2, 1, 0)
[11:18:04]  [RadarAPI]: Status: Passed
[11:18:04]  ChanNAdcConfig Success
[11:18:05]  [RadarAPI]: ar1.LPModConfig(0, 0)
[11:18:05]  [RadarAPI]: Status: Passed
[11:18:05]  Regualar mode Cfg Success
[11:18:07]  [RadarAPI]: ar1.RfInit()
[11:18:08]  RF Init async event received!
[11:18:08]  [RadarAPI]: Time stamp, Temperture: 5384,34; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:18:08]  [RadarAPI]: Status: Passed
[11:18:08]  RfInit Success
[11:18:09]  [RadarAPI]: ar1.DataPathConfig(1, 1, 0)
[11:18:09]  [RadarAPI]: Status: Passed
[11:18:09]  DataPathConfig Success
[11:18:10]  [RadarAPI]: ar1.LvdsClkConfig(1, 1)
[11:18:10]  [RadarAPI]: Status: Passed
[11:18:10]  LvdsClkConfig Success
[11:18:11]  [RadarAPI]: ar1.LVDSLaneConfig(0, 1, 1, 1, 1, 1, 0, 0)
[11:18:11]  [RadarAPI]: Status: Passed
[11:18:11]  LVDSLaneConfig Success
[11:18:12]  [RadarAPI]: ar1.ProfileConfig(0, 77, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 0, 30)
[11:18:12]  [RadarAPI]: Status: Passed
[11:18:12]  ProfileConfig Success
[11:18:13]  [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 1, 0)
[11:18:13]  [RadarAPI]: Status: Passed
[11:18:13]  ChirpConfig Success
[11:18:14]  [RadarAPI]: ar1.DisableTestSource(0)
[11:18:14]  [RadarAPI]: Status: Passed
[11:18:14]  [RadarAPI]: ar1.FrameConfig(0, 0, 8, 128, 40, 0, 1)
[11:18:14]  [RadarAPI]: Status: Passed
[11:18:14]  FrameConfig Success
[11:18:15]  [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[11:18:15]  [RadarAPI]: passed
[11:18:15]  SelectCaptureDevice Success
[11:18:16]  [RadarAPI]: StatusDCCard Event Registered
[11:18:16]  [RadarAPI]: Status: Passed
[11:18:16]  [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[11:18:16]  [RadarAPI]: Status: Passed
[11:18:16]  [RadarAPI]: SYSTEM_CONNECT_CMD_CODE Async event recieved(9)
[11:18:16]  [RadarAPI]: ConnectRFDCCard Status: Passed
[11:18:16]  [RadarAPI]: Status: Passed
[11:18:16]  [RadarAPI]: READ_FPGA_VERSION_CMD_CODE event recieved(14)
[11:18:16]  [RadarAPI]: Status: Passed
[11:18:16]  CaptureCardConfig_EthInit Success
[11:18:17]  [RadarAPI]: ar1.ConfigureRFDCCardMode(1, 1, 1, 2, 3, 0)
[11:18:17]  [RadarAPI]: Status: Passed
[11:18:17]  [RadarAPI]: CONFIG_FPGA_GEN_CMD_CODE Async event recieved(3)
[11:18:17]  CaptureCardConfig_Mode Success
[11:18:18]  [RadarAPI]: ar1.CaptureCardConfig_PacketDelay(25)
[11:18:18]  [RadarAPI]: Status: Passed
[11:18:18]  [RadarAPI]: CONFIG_PACKET_DATA_CMD_CODE Async event recieved(11)
[11:18:18]  CaptureCardConfig_PacketDelay Success
[11:18:19]  [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", 1)
[11:18:19]  [RadarAPI]: Status: Passed
[11:18:19]  [RadarAPI]: RECORD_START_CMD_CODE Async event recieved(5)
[11:18:20]  [RadarAPI]: ar1.StartFrame()
[11:18:20]  [RadarAPI]: Status: Passed
[11:18:20]  Frame start async event received!
[11:18:21]  [RadarAPI]: Frame Ended
[11:18:21]  Frame End async event received!
[11:18:22]  Please wait for a few seconds for Packet reorder utility processing .....!!!!
[11:18:22]  [RadarAPI]: Packet Reorder Utility Started...please wait...
[11:18:22]  [RadarAPI]: ar1.PacketReorderZeroFill("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data_Raw_0.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin", "C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\pktlogfile.txt")
[11:18:23]  [RadarAPI]: STS_RECORD_COMPLETED Async event recieved(8)
[11:18:23]  [RadarAPI]: ar1.CaptureCardConfig_StopRecord()
[11:18:23]  [RadarAPI]: Status: Passed
[11:18:23]  [RadarAPI]: RECORD_STOP_CMD_CODE Async event recieved(6)
[11:18:27]  [RadarAPI]: Packet Reorder Utility process completed!
[11:18:27]  Reordering required : NO
[11:18:27]  Packet loss : NO
[11:18:27]  Number of packets received : 2879
[11:18:27]  Number of zero filled packets : 0
[11:18:27]  Number of zero filled bytes : 0
[11:18:37]  Packet reorder utility processing done.....!!!!
[11:18:37]  Please wait for a few seconds for matlab post processing .....!!!!
[11:18:37]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_01_00_00_00\\mmWaveStudio\\Scripts\\..\\PostProc\\adc_data.bin")
[11:18:47]
[11:18:47]  ***Script completed successfully.***
��Display Post Processing.
��Close Post Processing.
��Load Config.

��Static Config
��ADC Config "Set"
[11:23:29]  [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 1, 1, 1, 1, 1, 2, 1, 0)
[11:23:29]  [RadarAPI]: Status: Passed
��LP Mode "Set"
[11:23:44]  [RadarAPI]: ar1.LPModConfig(0, 0)
[11:23:44]  [RadarAPI]: Status: Passed
��"RF Init"
[11:24:14]  [RadarAPI]: ar1.RfInit()
[11:24:14]  RF Init async event received!
[11:24:14]  [RadarAPI]: Time stamp, Temperture: 371451,41; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:24:14]  [RadarAPI]: Status: Passed

��DataConfig
��Data Path Configration "Set"
[11:25:34]  [RadarAPI]: ar1.DataPathConfig(1, 1, 0)
[11:25:34]  [RadarAPI]: Status: Passed
��Clock Configration "Set"
[11:25:52]  [RadarAPI]: ar1.LvdsClkConfig(1, 1)
[11:25:52]  [RadarAPI]: Status: Passed
��Data Configration "Set"
[11:26:22]  [RadarAPI]: ar1.LVDSLaneConfig(0, 1, 1, 1, 1, 1, 0, 0)
[11:26:22]  [RadarAPI]: Status: Passed

��SensoreConfig
��Sesor Configration Profile  "Set"
[11:29:13]  [RadarAPI]: ar1.ProfileConfig(0, 77, 15, 7, 114, 0, 0, 0, 0, 0, 0, 35.003, 1, 224, 2107, 0, 0, 30)
[11:29:13]  [RadarAPI]: Status: Passed
��Sesor Configration Chirp
 ��Start Chirp for cfg:0
 ��End Chirp for cfg:0
 ��Tx:TX0
 ��"Set"
[11:29:33]  [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 0, 0)
[11:29:33]  [RadarAPI]: Status: Passed
��Sesor Configration Chirp
 ��Start Chirp for cfg:1
 ��End Chirp for cfg:1
 ��Tx:TX1
 ��"Set"
[11:30:14]  [RadarAPI]: ar1.ChirpConfig(1, 1, 0, 0, 0, 0, 0, 0, 1, 0)
[11:30:14]  [RadarAPI]: Status: Passed
��Sesor Configration Chirp
 ��Start Chirp for cfg:2
 ��End Chirp for cfg:2
 ��Tx:TX2
 ��"Set"
[11:30:44]  [RadarAPI]: ar1.ChirpConfig(2, 2, 0, 0, 0, 0, 0, 0, 0, 1)
[11:30:44]  [RadarAPI]: Status: Passed
��Sesor Configration Frame  "Set"
[11:31:49]  [RadarAPI]: ar1.DisableTestSource(0)
[11:31:49]  [RadarAPI]: Status: Passed
[11:31:49]  [RadarAPI]: ar1.FrameConfig(0, 2, 0, 16, 100, 0, 1)
[11:31:49]  [RadarAPI]: Status: Passed
��Push "Set up DCA 1000"
��Open RFDataCapture Card
[11:32:14]  [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[11:32:14]  [RadarAPI]: passed
��Push "Connect,Reset and"
[11:34:16]  [RadarAPI]: StatusDCCard Event Registered
[11:34:16]  [RadarAPI]: Status: Passed
[11:34:16]  [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[11:34:19]  ConnectRFDCCard Status: RFDCCARD_UDP_WRITE_ERR
[11:34:19]  Ethernet Cable is disconnected Please check.....!!!
��The Button still "Connect,Reset and"

At When I pushed "SetUp DCA1000",this dialog biox open.

I pushed "Connect Rest and",error occurred,but the button still "Connect Rest and"

The following log is generated while pressing "Run!" And while executing "DataCaptureDemo_xWR.lua".

[11:18:16] [RadarAPI]: READ_FPGA_VERSION_CMD_CODE event recieved(14)
[11:18:16] [RadarAPI]: Status: Passed
[11:18:16] CaptureCardConfig_EthInit Success

Regards,
user5205609

0 Michelle Liu over 7 years ago in reply to user5205609

TI__Genius 11405 points

Hi,

From the log, before line 170, I don't see any problem.
After line 170, I see the operation is trying to config again. It's ok to re-config the mmwave radar, but there is no need to re-config DCA1000 and press the DCA1000 connect/disconnect button. The DCA1000 connect should only be pressed once.

Thanks and Regards,
Michelle

0 user5205609 over 7 years ago in reply to Michelle Liu

Intellectual 960 points

Hi,

Thank you very much.

Apparently, when mmWave Studio processed "DataCaptureDemo_xWR.lua" by pressing "Run!" , it seems that mmWave Studio has already done the same processing as "Connect, Reset and".
So by the last operation,perhaps,the system considers the same operation done twice.

We will examine the procedure and timing of "DataCaptureDemo_xWR.lua" .

Regards,
user5205609

Sensors

Sensors forum

DCA1000EVM: Replaying capture data is error,after I closed PostProc onece.
