TDC7201: The intb signal do not funciton normally.

jianchun yao

Part Number: TDC7201
Other Parts Discussed in Thread: TDC7200

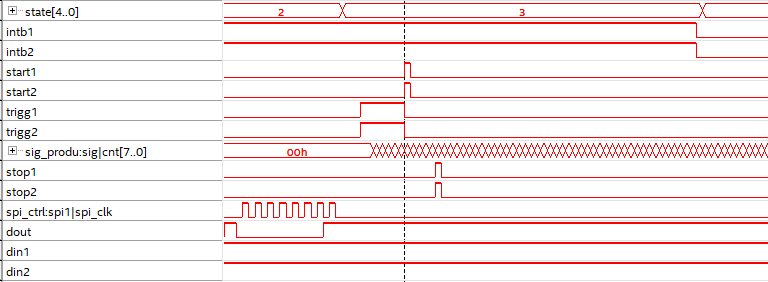

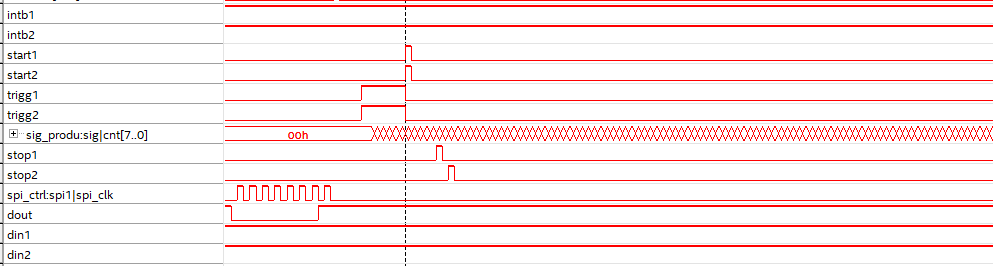

Hi, I used the TDC7201 on the combined mode. Why can't I get intb1 and intb2 signals active when stop1 and stop2 come at different times? If stop1 and stop2 come at the same time , the intb signal can act normally , why? Please help me. I really don't know how to figure it out. The problem has confused me for a long time.

over 7 years ago

0 Bharat Aravamudhan over 7 years ago

TI__Genius 11015 points

Hi,

Please let me know if you are using the TDC7200 EVM. I will check & respond to your issue by next week.

0 jianchun yao over 7 years ago in reply to Bharat Aravamudhan

Prodigy 60 points

Hi ,I am not using the TDC7200 EVM. Below is my schematic diagram of my circuit board. Thank you!

0 Bharat Aravamudhan over 6 years ago

TI__Genius 11015 points

Jianchun,

Try to just enable one START & STOP channel at a time & let me know if the INTB pin toggles correctly.

0 Bharat Aravamudhan over 6 years ago in reply to Bharat Aravamudhan

TI__Genius 11015 points

Hello Jianchun,

Please let me know if you have tried the above said checks. I will close this thread for now, in case you get back please start a new ticket.
