PGA970: Wire break detection

Takuto_Yoshioka

Intellectual 360 points

Part Number: PGA970
Other Parts Discussed in Thread: PGA900

Hello,

I am thinking about how to detect wire broken(The wire connects between PGA970 installed device and LVDT) .

PGA970 do not have the detection function.

Is there any useful TI product providing that detection or useful application note?

Or I should implement a electric circuit using OP-amps or comparators ..etc ?

I would appreciate it if you could give me advice.

Thank you.

over 6 years ago

0 Scott Cummins over 6 years ago

TI__Mastermind 31655 points

Hi Yoshioka-san,

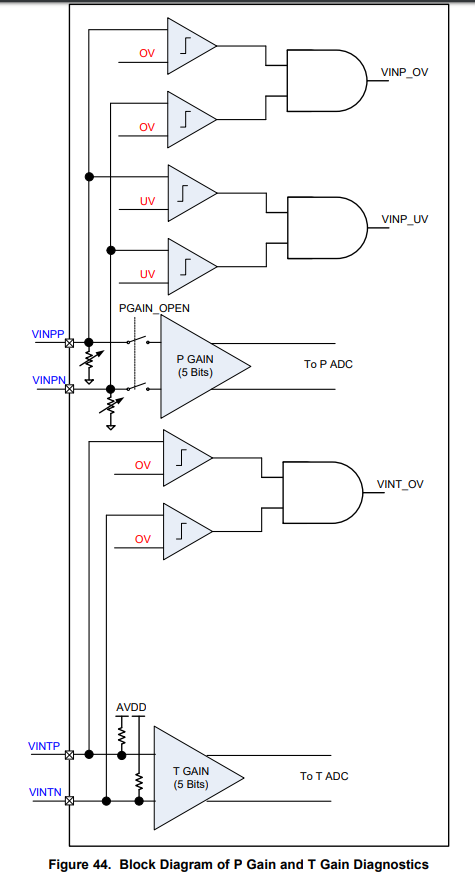

Typically this kind of detection is done with a large pulldown resistor to ground and some comparators for undervoltage or overvoltage. You can see a block diagram of this kind of scheme from the diagnostics in the PGA900:

I don't have a specific application note discussing this, but hopefully this is enough to get you on the right track.

Regards,

0 Takuto_Yoshioka over 6 years ago in reply to Scott Cummins

Intellectual 360 points

Thank you Scott-san !
I'm going to use it as an reference.
