IWR1443BOOST: IWR1443 vital signs data

user5799121

Part Number: IWR1443BOOST

We used IWR1443 to do the vital signs demo gui, checked the option to save the file, and the file DataOutput_XWR14xx.bin appeared.

We wanted to know the meaning of the data

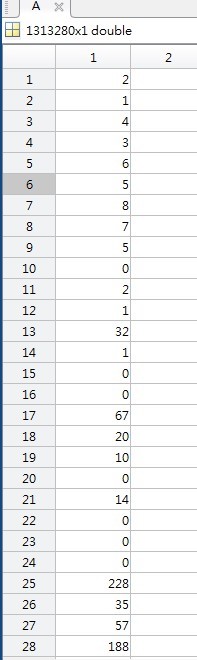

but when we used matlab to read this file and only one-dimensional data, so it seems unnormal.


 Detailed as picture

over 6 years ago

0 Kyle Cousino over 6 years ago

TI__Mastermind 24955 points

user5799121,

Please upload the .bin file so this can be reviewed to determine what data is contained in this binary file.

Regards,
Kyle

0 user5799121 over 6 years ago in reply to Kyle Cousino

Prodigy 20 points

OK.thanksDataOutput_XWR14xx.rar

0 Kyle Cousino over 6 years ago in reply to user5799121

TI__Mastermind 24955 points

I would recommend that you download the Vital Signs Lab from the automotive toolbox from TI's Resource Explorer here: dev.ti.com/.../. You can download this entire toolbox to your PC.

I would recommend unzipping this folder to C:\ti

I would then direct you to this folder: C:\ti\mmwave_automotive_toolbox_2_4_2\labs\lab0001-driver-vital-signs\vitalSigns_host\gui_source\matlabScripts

In this folder you will see a MATLAB script called main_readGUISavedBinary.m. You can use your .bin file and this MATLAB file to run the analysis on your saved data.

Regards,
Kyle
