LDC1000: LDC1000 inductance calculation by using SMD inductor

Lucifer

Part Number: LDC1000

Dear Sir

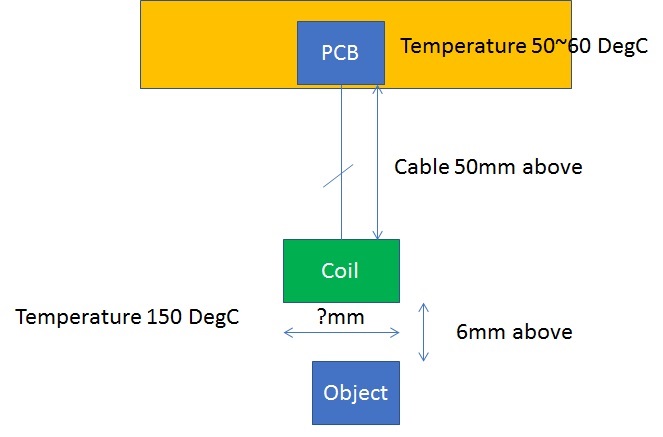

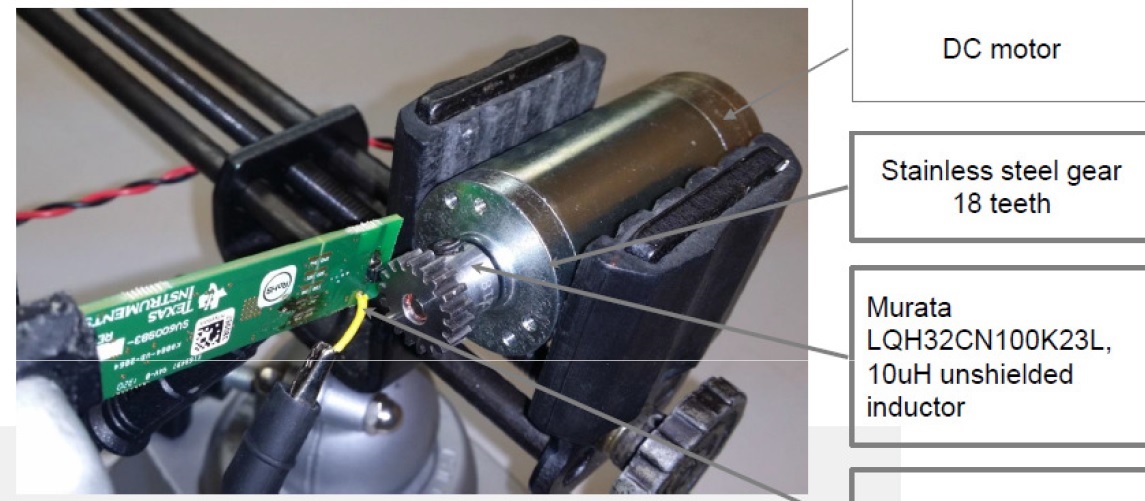

We want to use SMD inductor to replace coil just like below Figure 1. in our application Figure 2. the object distance is around 6mm, May I know how to calculate the inductance value ? will have any temperature issue at 150degC? thanks.

Figure 1

Figure 2

over 6 years ago

0 Bala Ravi over 6 years ago

TI__Expert 6625 points

Hi Lucifer,

I can only see one picture from your post (Figure 2). It is possible to replace PCB inductor with SMD inductor. But, we recommend using PCB inductor because they are very well matched. Even a 5% mismatch between the sensor and reference coil can lead to 25% reduction in sensing range.

Here are some additional resources that can help you with your design:

Sensor Design

Target Design

http://www.ti.com/product/LDC1000/toolssoftware - Download Inductive Sensing Design Calculator Tool (Rev. E)

I hope this helps!

Best Regards

Bala Ravi

0 Vaibhav Garg10 over 6 years ago

TI__Intellectual 1020 points

Hi Lucifer,

LDC1000 part is now not recommended for new designs. It is strongly recommended not to use this device for your project. We recommend LDC1101 as an alternative.

Regards,

Vaibhav
