Could you pls expplain, how to calibratrte and put the offset in visualizer.

It would be very helpful if you could explain,

Hi Karthik,

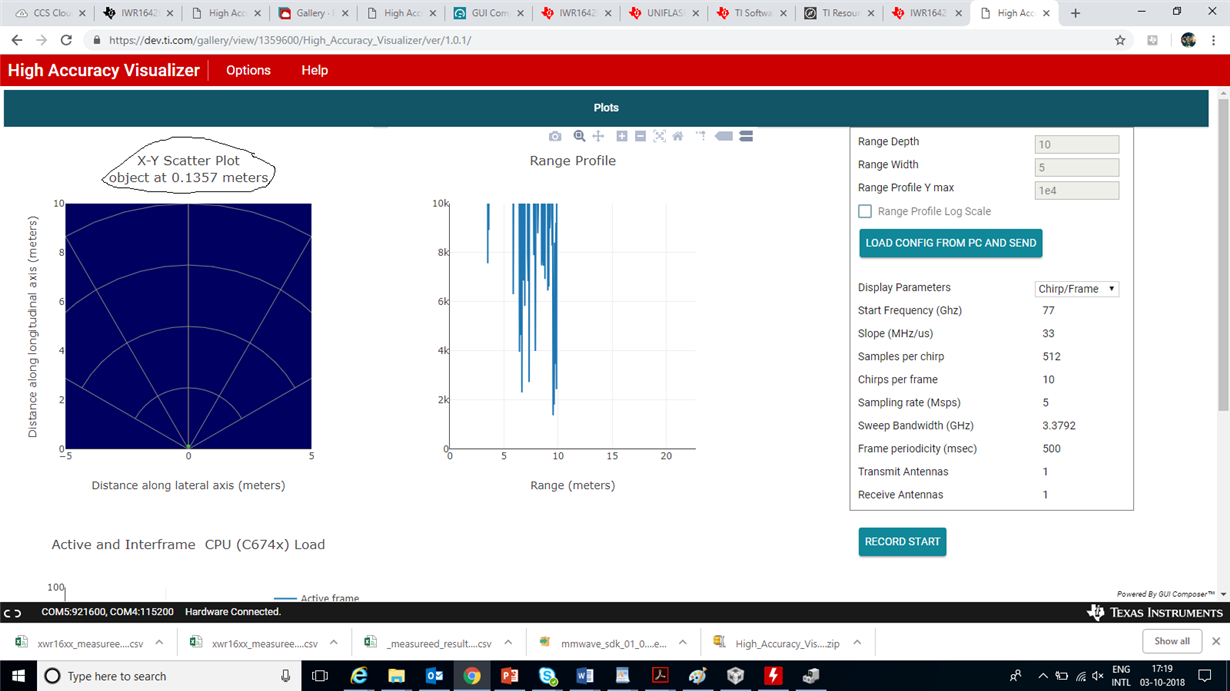

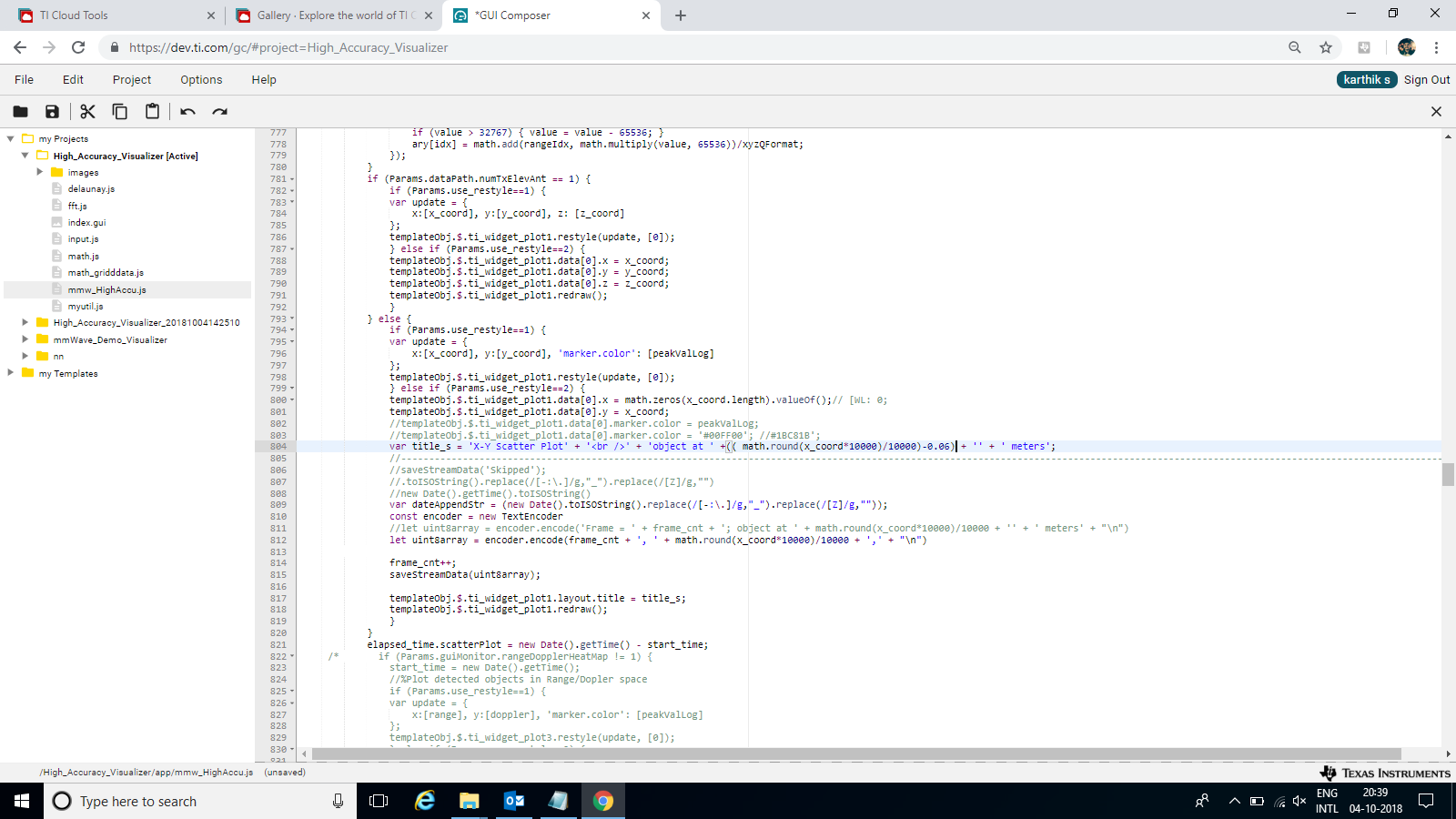

To calibrate, please put a reflector some known distance away and measure. You'll get the offset. The high accuracy visualizer can be downloaded and modified. It's based on javascript and the code you need to modify is the mmw_HighAccu.js. The peak value display is around line 804.

Let me know if you have any other question.

Thanks and Regards,
Michelle

Could you pls explain this process and what changes I have to make in java script.

It would be vry helpful. In the same exp I want to compare the range with some threshold, and enable any GPIO pin if the range is less than threshold. Where can Modify this code, Mr. John eplained some of the concpets. But since You are high accuracy expert, if you could explain where and what modification I have to in clear, It would be vry helpful.

I have tried to edit the line in 804, and i tried to save , by publishing to gallery but I am not able to open it, it is showing blank file.

Pls help me to get it right way.

Hi,

As you told I have edited , peak value part with subtraction of 6cm i.e 0.06 m.Since this was the consistent offset.

Pls confirm is it fine?, I have exported edited file into gallery and will check it. also edited same in save stream data for offset.

Looks good.

Thanks and Regards,

Michelle

It would be vry helpful. In the same exp I want to compare the range with some threshold, and enable any GPIO pin if the range is less than threshold. Where can Modify this code, Mr. John eplained some of the concpets. But since You are high accuracy expert, if you could explain where and what modification I have to in clear, It would be vry helpful.

Hi Karthik,

It seems you are trying to compare the peak value with threshold and use GPIO to signal it. It can be put in the mss_main.c. As to GPIO, I believe it's been explained in your other thread. e2e.ti.com/.../2710599

Thanks and Regards,
Michelle

Hi, I tried now. But stil, have on offset of 6CM.

Kindly support to correct this issue.

Hi, Its working now. But lot of variations near , near 5cm and less range around antenna.

what can we do for that.

Hi Karthik,

To clarify the question: previous offset was working, correct?

New question is that measured value has variation. What kind of object was used in the test?

Thanks and Regards,
Michelle

Yes. Offset is fine, But when the value reaches near 3-5 cm. It is giving the of about 35cm.

We have used, high reflective human hand.

The variation may be caused by surrounding object reflection. When you use hand, the person's body may also be contributing to the reflection. Improvement of your test environment is needed. Corner reflector or flat metal plate placed in anechoic chamber is recommended.

Thanks and Regards,
Michelle

Hi, We were modifying the code of mss, and just wanted to understand how to get the value of tempRange. Since Mr. John gave the formula to calculate the range as range=temRange/(2^xyzqformat). It is not able to calculate, So just wanted to understand, How to get the value of tempRange is debug mode?

Hi Karthik,

This link will help you find the output format:

http://e2e.ti.com/support/sensor/mmwave_sensors/f/1023/p/658333/2447737#pi320098=2

Another suggestion: please issue new ticket for your new question and use descriptive subject title.

Thanks and Regards,

Michelle
