PGA970EVM: What is the phase value calculation formula?

Takuto_Yoshioka

Intellectual 360 points

Part Number: PGA970EVM

Hello.

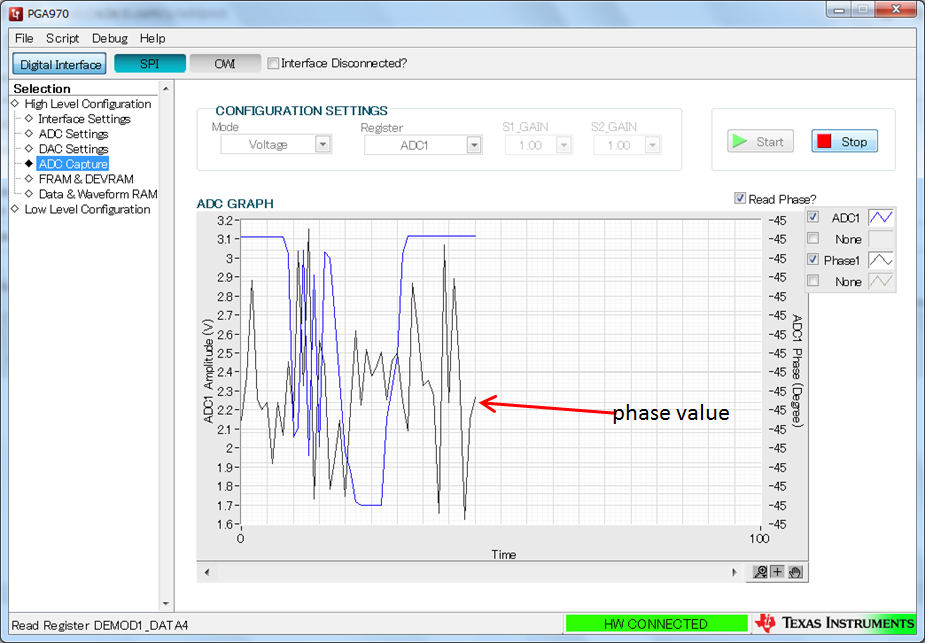

PGA970EVM GUI provides phase value of LVDT output.

It is like this.

What formula is used for the calculation?

I mean I guess the phase value is calculated using DEMOD1_PH1DATA and DEMOD1_PH2DATA.

Thank you.

over 6 years ago

0 Scott Cummins over 6 years ago

TI__Mastermind 31655 points

Hi Yoshioka-san,

I will have to look into this and get back to you.

Regards,

0 Scott Cummins over 6 years ago in reply to Scott Cummins

TI__Mastermind 31655 points

Hi Yoshioka-san,

Please see this other thread where I describe how to calculate the phase angle. This is how the calculation is done in the GUI.

e2e.ti.com/.../2715233

Regards,

0 Takuto_Yoshioka over 6 years ago in reply to Scott Cummins

Intellectual 360 points

Hello Scott-san,

Thank you, I am going to check it.

Takuto Yoshioka
