OPT3101: How to Connect Host Controller

Sadanori Kato

Guru 36540 points

Part Number: OPT3101

Hi,

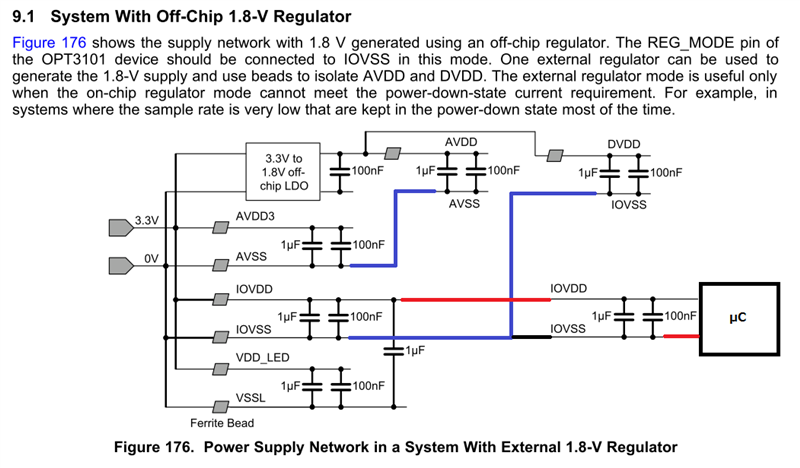

Is my understanding correct that the uC should be connected to OPT3101 as below ?

Best regards,
Kato

over 6 years ago

0 Alex Bhandari-Young over 6 years ago

TI__Mastermind 25895 points

Kato,

Are you just asking which supply line to power the uC off of assuming it runs at the same voltage? If so, yes uC should run off of IOVDD. You can also refer to our EVM schematics posted online which shows an example of this since the way you have wired will work if using internal or external regulator.

Best,

Alex

0 Sadanori Kato over 6 years ago in reply to Alex Bhandari-Young

Guru 36540 points

Hi Alex-san,

Thank you for the explanation.

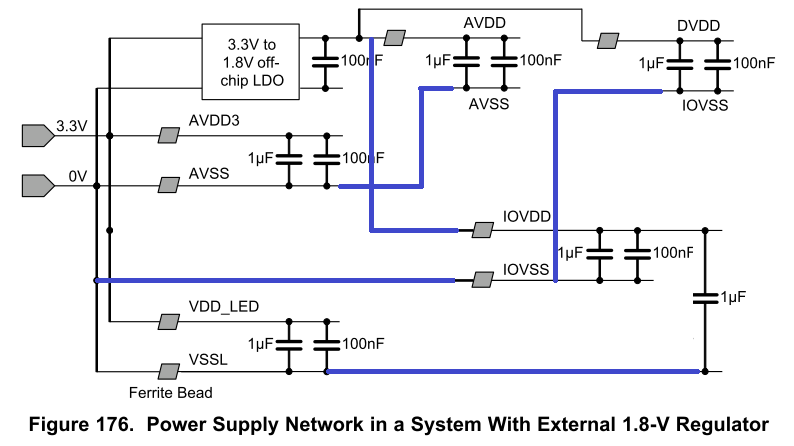

Could you please double-check the following the supply network if using OPT3101 with off-chip 1.8V regulator ?

Best regards,
Kato

0 Alex Bhandari-Young over 6 years ago in reply to Sadanori Kato

TI__Mastermind 25895 points

Hi Kato,

Think we got this closed out over email, but let me know over email if you have any other remaining questions.

Best,

Alex

0 Sadanori Kato over 6 years ago in reply to Alex Bhandari-Young

Guru 36540 points

Hi Alex-san,

Thank you for confirming.

I understood.

Best regards,
Kato
