OPT3101: External Clock

Sadanori Kato

Part Number: OPT3101

Hi,

MSP430 would provide the external clock to OPT3101 GP2 port on OPT3101EVM, so is my understanding correct that the external clock frequency is 10-MHz ?

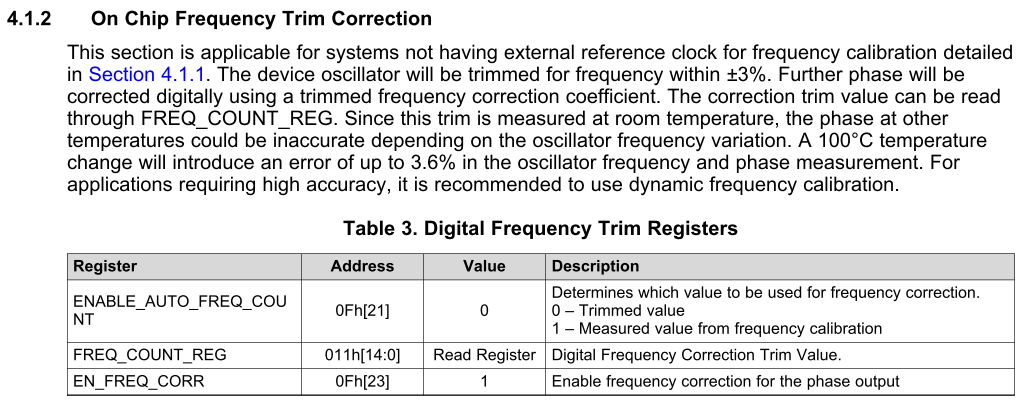

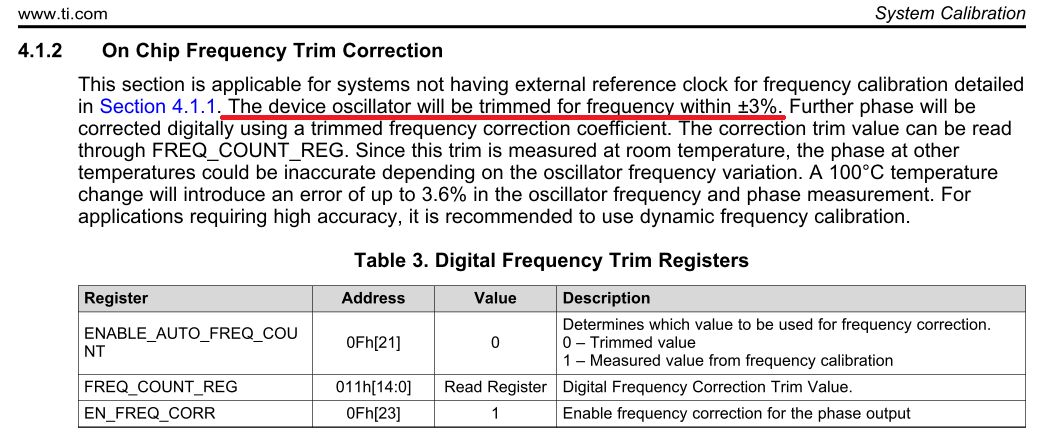

In addition, the internal clock frequency will be trimmed within +/- 3% as below, so please share the distance measurement data as described in the following application note when comparing the internal clock with the high precision external clock.

Application of OPT3101 in Precise Distance Measurementand Ranging Applications
http://www.ti.com/lit/an/sbaa296/sbaa296.pdf

Best regards,
Kato

over 6 years ago

0 Alex Bhandari-Young over 6 years ago

TI__Mastermind 25895 points

Hi Kato,

Correct. What do you mean by "please share the distance measurement data as described in the following application note"? I do not believe the app note mentions this type of data for frequency. Our EVM uses external reference so all data in this app note was collected using external reference.

Best,

Alex

0 Sadanori Kato over 6 years ago in reply to Alex Bhandari-Young

Guru 36540 points

Hi Alex-san,

Thank you for your reply.

Would you have the data which was measured with the internal clock ?
If yes, please share me the information.
In addition, does the distance accuracy decrease depending on temperature fluctuation if using OPT3101 with the internal clock ?

Best regards,
Kato

0 Sadanori Kato over 6 years ago in reply to Sadanori Kato

Guru 36540 points

Hi Alex-san,

Sorry for confusing you and I was mistaken in my understanding.

Could you please provide the distance accuracy on only chip frequency trim correction if using OPT3101 without the dynamic frequency calibration not using the external reference clock ?

Best regards,
Kato

0 Alex Bhandari-Young over 6 years ago in reply to Sadanori Kato

TI__Mastermind 25895 points

Hi Kato,

Think we got this closed out over email, but let me know over email if you have any other remaining questions.

Best,

Alex

0 Sadanori Kato over 6 years ago in reply to Alex Bhandari-Young

Guru 36540 points

Hi Alex-san,

Thank you for your reply.

I understood.

Best regards,
Kato
