OPT3101: EMI Isolation Rings

Sadanori Kato

Part Number: OPT3101

Hi,

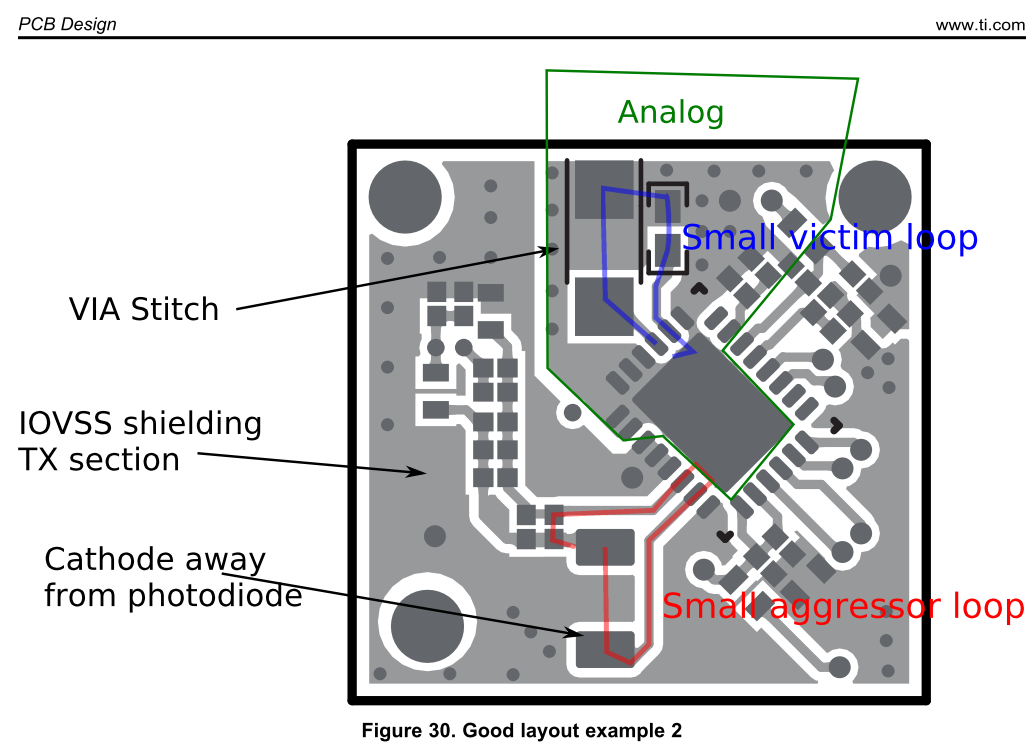

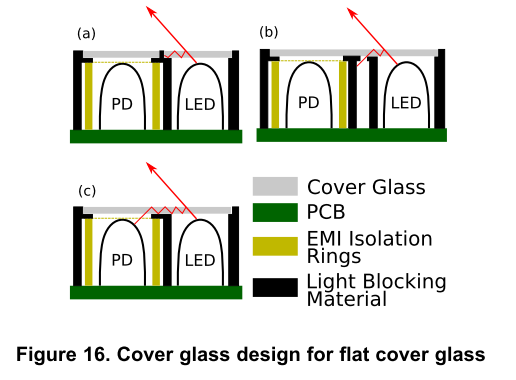

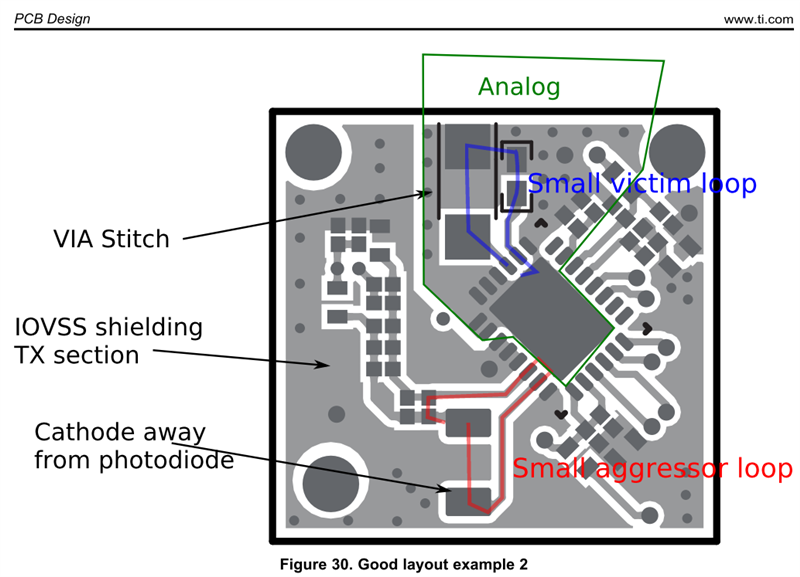

It seems that the EMI isolation rings cannot be mounted on the pcb if applying "Good layout example 2" as the pcb layout.
So, are the EMI isolation rings unnecessary if using a chip type LED and PD ?

Best regards,
Kato

over 6 years ago

0 Alex Bhandari-Young over 6 years ago

TI__Mastermind 25895 points

Hi Kato,

This is correct. Chip optics have much shorter leads so requirement for electrical isolation is less. You may still need optical isolation structure though.

Best,

Alex

0 Sadanori Kato over 6 years ago in reply to Alex Bhandari-Young

Guru 36540 points

Hi Alex-san,

Thank you for the information.

I understood.

Best regards,
Kato
