IWR6843ISK: Antenna performances

Alessandro Spinetti1

Part Number: IWR6843ISK

Hi all,

is it possible to have the complete (360°) radiation pattern of the antennas on the PCB for the complete bandwith? In the guide we found only a part of the pattern (-30 to +30°) and at only one frequency for Azimuth and Elevation.

Do you have some other parameters like S11 (matching) or gain?

Thanks!

over 6 years ago

0 Cesar over 6 years ago

TI__Guru*** 148754 points

Hi,

Will get back to you early next week

thank you
Cesar

0 Alessandro Spinetti1 over 6 years ago in reply to Cesar

Intellectual 385 points

Hi Cesar,
Thank you for your reply.
Did you have some news up to now?

BR.
Alessandro.

0 CHETHAN KUMAR Y.B. over 6 years ago in reply to Alessandro Spinetti1

TI__Mastermind 25835 points

Hello,

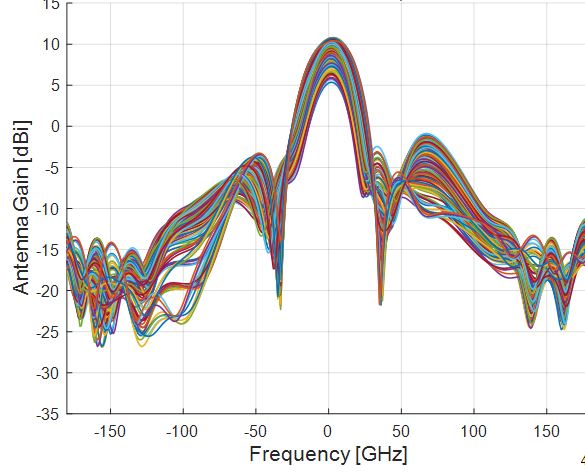

You could find antenna gain (Azimuth and Elevation) across multiple frequencies within 60 GHz to 64 GHz.

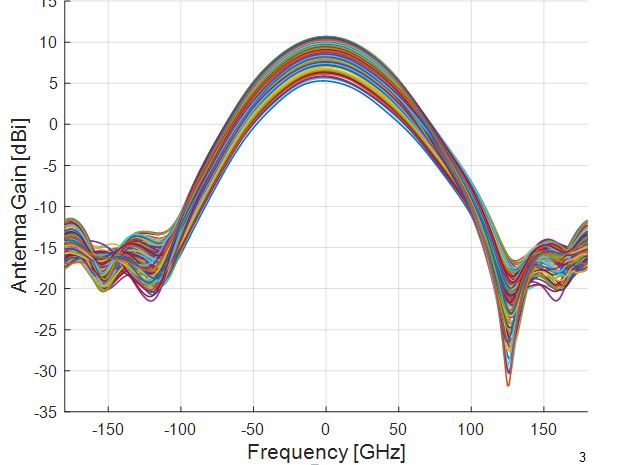

Antenna gain in Azimuth plane:

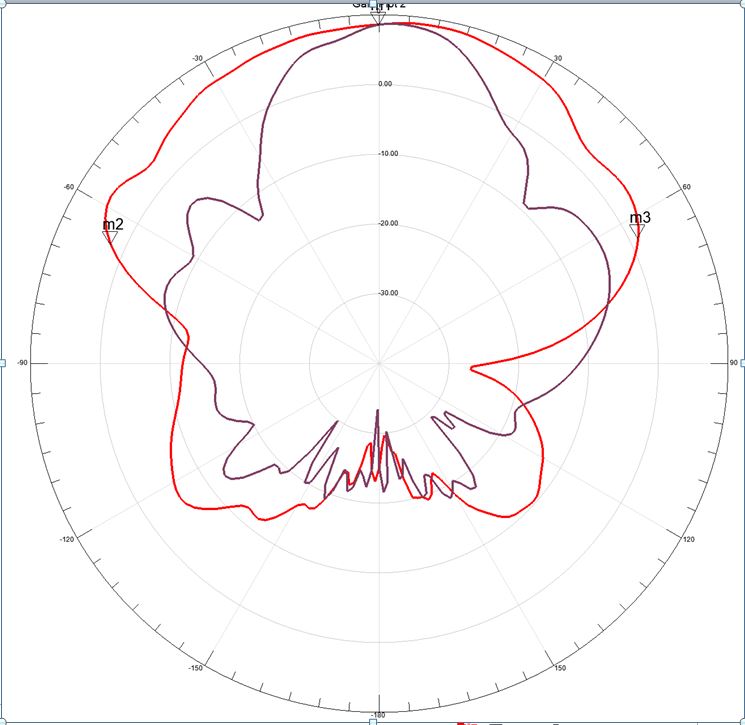

360 Degree Radiation pattern:

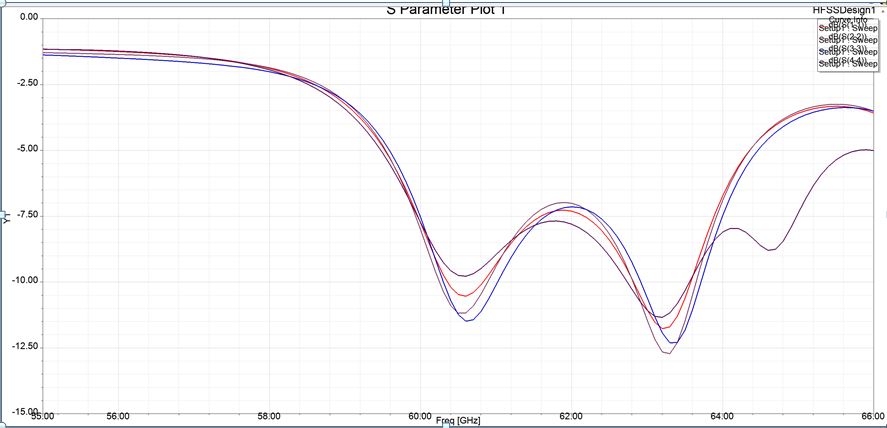

Input matching :

Thanks and regards,

CHETHAN KUMAR Y.B.

0 Alessandro Spinetti1 over 6 years ago in reply to CHETHAN KUMAR Y.B.

Intellectual 385 points

Hi Chethan,
Thank you for the diagrams.
Could it be possible to have the datafiles in order to understand better the variation among the frequencies?
The radiation pattern are made at what frequency? The red is azimut and the purple is elevation, isn't it?

This measure was done with only the antenna or with IC + antenna?

Thank you!

0 CHETHAN KUMAR Y.B. over 6 years ago in reply to Alessandro Spinetti1

TI__Mastermind 25835 points

Hello,

Yes, your understanding is is correct, red curve is azimuth and purple is elevation.
The radiation pattern are made at 62GHz frequency in this plot. I'm afraid we don't have data files available.
This results includes the Antenna and feed lines, however device is not included.

Device and Antenna results are available in the EVM user guide.

Thanks and regards,
CHETHAN KUMAR Y.B.

0 Alessandro Spinetti1 over 6 years ago in reply to CHETHAN KUMAR Y.B.

Intellectual 385 points

Hi,
Thank you for the info.

Have a nice day.
