LDC1314: Inductive Sensor

Jerry Chu

Part Number: LDC1314
Other Parts Discussed in Thread: LDC1101, LDC2114, LDC2112

Hi Expert,

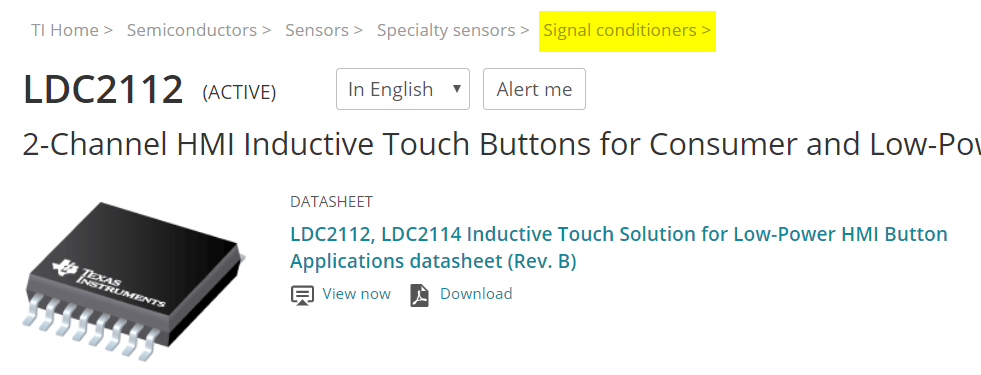

When I press the "signal conditioners" link, I can't find any LDC serials products, Why? Does any plan change it to NRND part? Thanks!

over 6 years ago

0 Clancy Soehren over 6 years ago

TI__Mastermind 23810 points

They are not showing up in the parametric search; however, there are no current plans to NRND this part.

0 Jerry Chu over 6 years ago in reply to Clancy Soehren

Genius 4915 points

Hi Clancy,
Thanks for the information. Does LDC1101 suitable in phone metal touch application? The touch area is 3mm*20mm, is it OK for the design?
Can you share more experience for it? Thanks!

0 Clancy Soehren over 6 years ago in reply to Jerry Chu

TI__Mastermind 23810 points

The LDC2112 or LDC2114 are probably your best options for phone metal touch applications. Those devices are designed for button applications and have integrated algorithms that make things simpler for the designer.

0 Jerry Chu over 6 years ago in reply to Clancy Soehren

Genius 4915 points

Hi Clancy,
I found the example in "www.ti.com/.../snaa307.pdf". Do you have the LDC sensor size? The touch area is 3mm*20mm, is it OK for the design? Thanks!

0 Vaibhav Garg10 over 6 years ago in reply to Jerry Chu

TI__Intellectual 1020 points

Hello,

In account of the holidays, our responses will be delayed.

Regards,

Vaibhav

0 Clancy Soehren over 6 years ago in reply to Jerry Chu

TI__Mastermind 23810 points

Jerry, that should be possible, but it will be limited based on your PCB manufacturer's capabilities. You can use the LDC calculator tool to estimate how small your trace widths will need to be to achieve a sensor of that size.

www.ti.com/.../slyc137
