IWR6843: AWR1843 and IWR6843_Calibration failure item analysis

James Chen0

Part Number: IWR6843

Hi Sir,

When we did calibration process and get its result. Once occur some items fail how do we to know its failure reason? By which API or could analyze by dump calibration data?

And do you have any document for explain calibration data structure and content meaning?

Thanks.

over 6 years ago

0 Nitin Sakhuja over 6 years ago

TI__Mastermind 30405 points

Hi James,

How are you performing this calibration? Is this using mmWave Studio or through application code?

Regards
-Nitin

0 James Chen0 over 6 years ago in reply to Nitin Sakhuja

Prodigy 90 points

Hi Nitin,

It through by application code.

Thanks

0 Nitin Sakhuja over 6 years ago in reply to James Chen0

TI__Mastermind 30405 points

Hi James,

The various calibrations are defined in the following app note:

Self-Calibration in TI’s mmWave Radar Devices

You will need to provide more context as to which APIs are you calling and where/how are you calling those.

Regards

-Nitin

0 Nitin Sakhuja over 6 years ago in reply to Nitin Sakhuja

TI__Mastermind 30405 points

Hi James,

We have not heard back from you on this topic so I am closing this thread. Please feel free to create a new thread if you have more questions.

Regards
-Nitin

0 James Chen0 over 6 years ago in reply to Nitin Sakhuja

Prodigy 90 points

Hi Nitin,

We implement self-calibration by MMWave_start()
/* Populate the calibration configuration: */
calibrationCfg.dfeDataOutputMode = MMWave_DFEDataOutputMode_ADVANCED_FRAME;
calibrationCfg.u.chirpCalibrationCfg.enableCalibration = true;
calibrationCfg.u.chirpCalibrationCfg.enablePeriodicity = true;
calibrationCfg.u.chirpCalibrationCfg.periodicTimeInFrames = 10U;

/* Start the mmWave: */
if (MMWave_start (gMrrMSSMCB.ctrlHandle, &calibrationCfg, &errCode) < 0)
{
/* Error: Unable to start the mmWave control module */
System_printf ("Error: mmWave start failed [Error code %d]\n", errCode);
return -1;
}

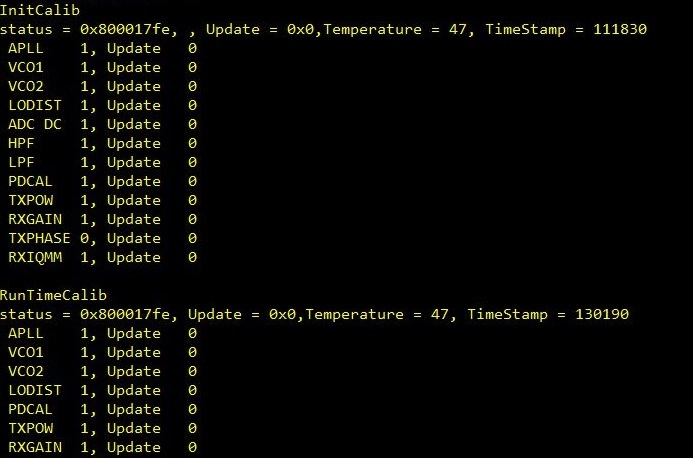

We get calibration report from struct rlRfInitComplete_t and rlRfRunTimeCalibReport_t which are defined in file mmwave_link.c and mmwavelink.h.

Thanks
