IWR1642BOOST: I do not know what to set to "elev" with the 3D option of GtrackLib

Part Number: IWR1642BOOST

I can track with "2D option" in GtrackLib.
Next, I'd like to track with "3D option", but I do not know how to pass data to STEP processing.

"GTRACK_measurementPoint" is in the parameter of "gtrack_step".

typedef struct
{
    union {
        /**  @brief   Measurement vector */
        GTRACK_measurement_vector vector;
        float array[GTRACK_MEASUREMENT_VECTOR_SIZE];
    };
    /**  @brief   Range detection SNR, linear */
    float snr;
} GTRACK_measurementPoint;

"GTRACK_measurement_vector" is defined in the 3D option as follows.

/**
 * @brief
 *  GTRACK Measurement vector
 * @details
 *  The structure defines tracker measurement vector format
 */
typedef struct
{
    /**  @brief   Range, m */
    float range;
    /**  @brief   Azimuth, rad */
    float azimuth;
    /**  @brief   Elevation, rad */
    float elev;
    /**  @brief   Radial velocity, m/s */
    float doppler;
} GTRACK_measurement_vector;

Of these four members, "range", "azimuth" and "doppler" can set the data of "Point Cloud TLV" received from the IWR 1642.
However, I do not know what to set for "elev".

If the IWR 1642 is installed as follows, what is the value of "elev"?
- Installation height: 5 meters
- Depression angle: -30 degrees (-0.52 radians)

For your reference:

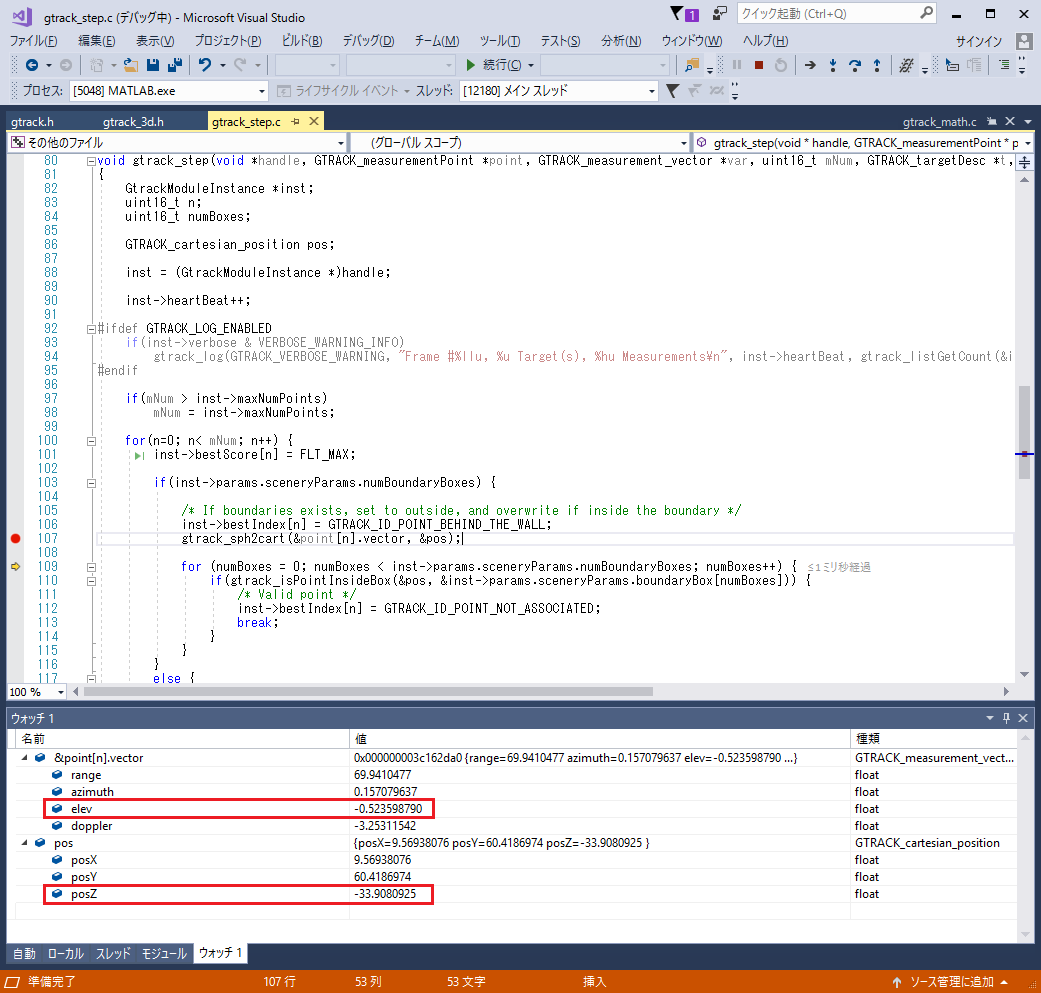

I set "elev" to "-0.52" and moved GtrackLib.
As a result, the value of "posZ" of the state vector converted by "gtrack_sph2cart" function is -33.9.
I thought that the calculation result that the Cartesian coordinate Z position is -33.9 is not appropriate.

Thanks.

  • Hi Koji,

    The "elev" field is the elevation angle of the detected point in the point cloud.  For a point in 3D space defined in polar coordinates, you have range, azimuth (angle - radians) and elevation (angle - radians).  So you can synthesize an elevation based on the X,Y,Z coordinates of the data set (as well as range and angle).

    With IWR1642BOOST antenna pattern, you cannot get the Z coordinate, as it is a 2D configuration.  If you want to synthesize the elevation, you should set the Z coordinate to be equal for each point in the point cloud, then calculate the polar coordinates for each point.

    Regards,

    Justin
