IWR1642BOOST: Could not find R210 and R211 to connect I2C AR_SCL and AR_SDA with G14 and F13

LAXMI KANT TIWARI

Part Number: IWR1642BOOST

Hi,

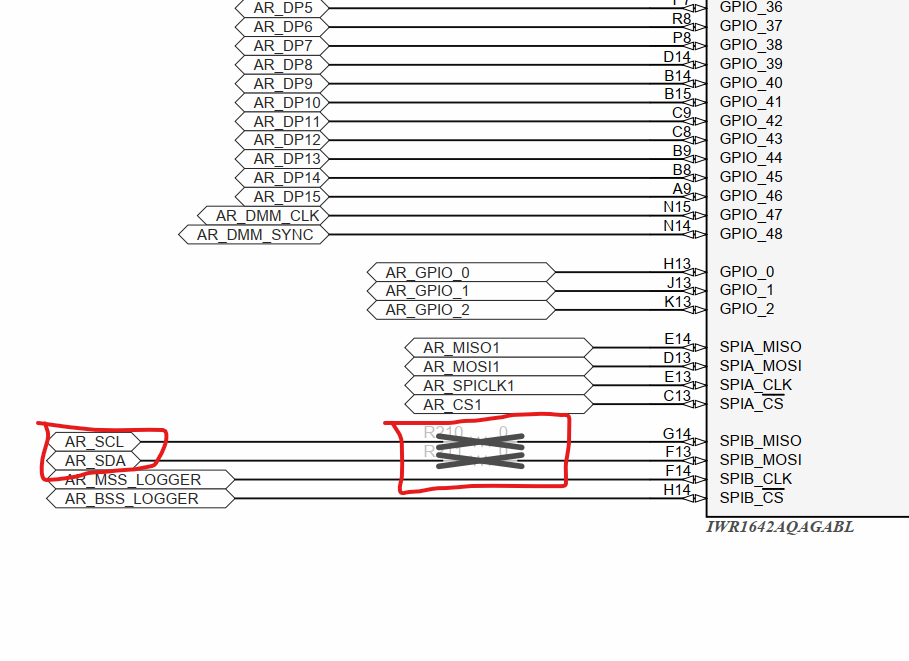

I want to use I2C and I have seen in the schematic that I need to place 0Ohm at R210 and R211 but I could not find R210 and R211 to connect I2C AR_SCL and AR_SDA with G14 and F13 in assembly pdf.

For your reference image is attached below

I was looking in the PROC011B(002)_Assy.PDF

Can anybody specify where to find R210 and R211?

over 6 years ago

0 CHETHAN KUMAR Y.B. over 6 years ago

TI__Mastermind 25835 points

Laxmi,

Sorry to hear this information is not present in assembly diagram. I will check with the team if this could be fixed.

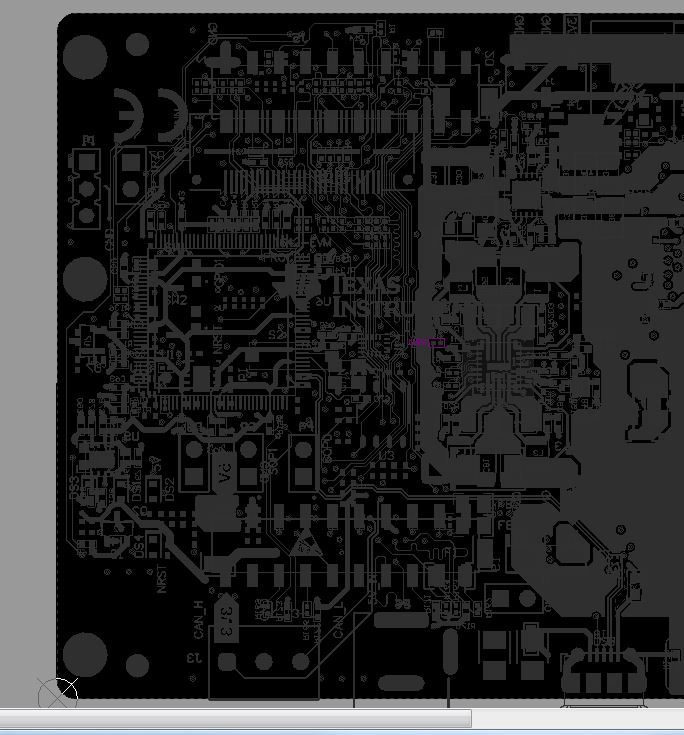

Meanwhile you could refer below diagram for R210 and R211.

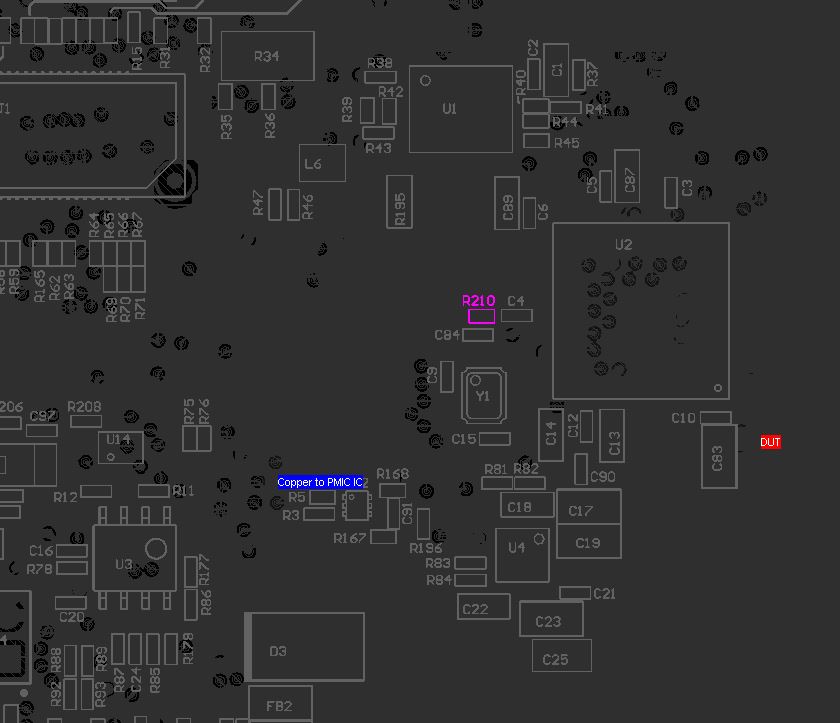

R210 is on top side and R211 line is on the bottom side of the board.

Thanks and regards,

CHETHAN KUMAR Y.B.

0 LAXMI KANT TIWARI over 6 years ago in reply to CHETHAN KUMAR Y.B.

Genius 3345 points

I could not find R210 and R211 in .pdf but just seen it on printed on board itself. What a irony! Thanks sir. I have also given response in other thread.
